Hard-Wired Keypads
Hard-Wired Keypads are an easy and affordable method of controlling access to your property. Features to look for when selecting a hardwired digital keypad include the code capacity, which ranges from one to thousands, multiple relays for controlling other entry points, mounting style, low power usage, tamper & weather resistance and lighted keys. We have hardwired touchpads from the following brands: Linear, Security Brands, Doorking, Corby, Locinox, FAAC, Seco-Larm, EMX, MMTC, Nice Apollo, and Securitron.
-
Seco-Larm SK-1323-SDQ Stand-Alone Keypad - 1,010 Codes / WeatherproofGD# SCL-sk-1323-sdq MFR# SK-1323-SDQ• 1,010 Users
• 12-24 VAC/VDC
• 2 Form C Relays
• Backlit Keys
• 4-3/4" x 3" x 7/8"
• IP65 Rated Weatherproof, Sealed Housing
• 1-Year Limited Manufacturer Warranty
See More Details$134.00 -
EMX 5400-2 KPX 100 Keypad - 110 Codes / WeatherproofGD# EMX-5400-2 MFR# EMX-5400-2• 110 Users
• 12-24VAC/DC
• Stainless Steel Faceplate
• Metal Backlit Keys
• 2 Relay Outputs
• Weatherproof/Vandal Resistant IP66
• Wall, Post or Gooseneck mounting
• 2-Year Limited Manufacturer Warranty
• MADE IN USA See More Details$197.00 -
Linear ACP00748 AK-11 Digital Keypad - 480 CodesGD# LIN-acp00748 MFR# AK-11• Replaces the AK-1
• Rugged, cast aluminum enclosure
• Up to 480 programmable codes
• Includes: door sense input, inhibit input, request-to-exit input, alarm shunt output, timed anti-passback, & keypad lockout
• Tactile & audible feedback
• Unit has keylock cabinet
• Power: 12-24 Volts AC or DC
• Dimensions: 4"W x 5.5"H x 3"D
• 1 Week Lead Time See More Details$339.00 -
Linear ACP00747 AKR-1 Keypad w/ Receiver - 480 Codes & 480 TransmittersGD# LIN-acp00747 MFR# AKR-1• Rugged, cast aluminum enclosure
• Built-in 318 MHz radio receiver
• Four independent outputs and timers
• Accepts 480 entry codes, 480 block code transmitters, plus one fully supervised Model MGT safety edge transmitter
• Two LED indicators show system status
• Down light illuminates when keypad is used
• Tactile and audible feedback
• Unit has keylock cabinet
• Power: 12-24 Volts AC or DC
• Dimensions: 4"W x 7"H x 3"D
• 1 Week Lead Time See More Details$426.00 -
Security Brands Advantage ADV-1000 Digital Keypad - 1,000 CodesGD# SBI-adv-1000 MFR# ADV-1000• 1,000 4-Digit Codes
• 12 - 24V AC / DC
• 2 Relays w/ Variable Relay Time
• Backlit Keypad
• 2-Year Limited Manufacturer Warranty See More Details$402.00 -
Security Brands Advantage DKLP 19-100 Low Power Keypad - 100 Codes / Surface MountGD# SBI-19-100 MFR# 19-100• 100 Programmable 4-Digit Codes
• Single Relay w / Variable Output Time
• 12VDC / Solar Compatible
• 2-Year Limited Manufacturer Warranty
• Power Supply & Mounting Flange NOT Included See More Details$296.00 -
Linear 0-211466 212R Keypad - 120 Codes / Ruggedized Surface MountGD# LIN-0-211466 MFR# 212R• 120 users
• Indoor/outdoor use
• Surface mount vandal resistant design
• 4 timed relays
• 1 Week Lead Time See More Details$378.00 -
FAAC 2916 Advantage DK Keyless EntryGD# FAC-2916 MFR# 2916• For up to 1000 four digit codes
• Programmable latch/unlatch code
• Three strikes lockout
• All Products Require a 3-5 Day Lead Time See More Details$489.00 -
Linear 0-213466 232R Keypad - 120 Codes / Ruggedized Surface MountGD# LIN-0-213466 MFR# 232R• 120 users
• Surface mount vandal resistant design
• 1 SPDT 2 amp relay and 3 - 1 amp SPDT access relays
• Indoor/outdoor use
• 1 Week Lead Time See More Details$445.00 -
Linear 0-212140 212SE Keypad - 120 Codes / Weather Resistant Surface MountGD# LIN-0-212140 MFR# 212SE• 120 users
• Indoor/outdoor use
• Surface mount vandal resistant design
• 4 timed relays
• 1 Week Lead Time See More Details$384.00 -
MMTC 1050G-1000 Keypad - 1,000 CodesGD# MTC-1050g-1000 MFR# 1050G-1000• Exterior, Surface Mount
• Metal Keys with Light
• 1000 Codes
• 12/24VAC/DC
• Dimensions: 4-3/4"h x 3-1/4"w x 2-3/4"d See More Details$348.00 -
Securitron DK-12 Digital Keypad - 99 CodesGD# STN-dk-12 MFR# DK-12• Easy to install with simple hand tools
• Operates on low voltage AC or DC current
• 99 user code capability
• Passage mode and Lockout mode See More Details$178.00 -
Security Brands Advantage DKLP 19-100SG Low Power Keypad - 100 Codes / Single GangGD# SBI-19-100sg MFR# 19-100SG• Single Gang
• 100 Programmable 4-Digit Codes
• Single Relay w / Variable Output Time
• 12VDC / Solar Compatible
• 2-Year Limited Manufacturer Warranty
• Power Supply NOT Included See More Details$199.00 -

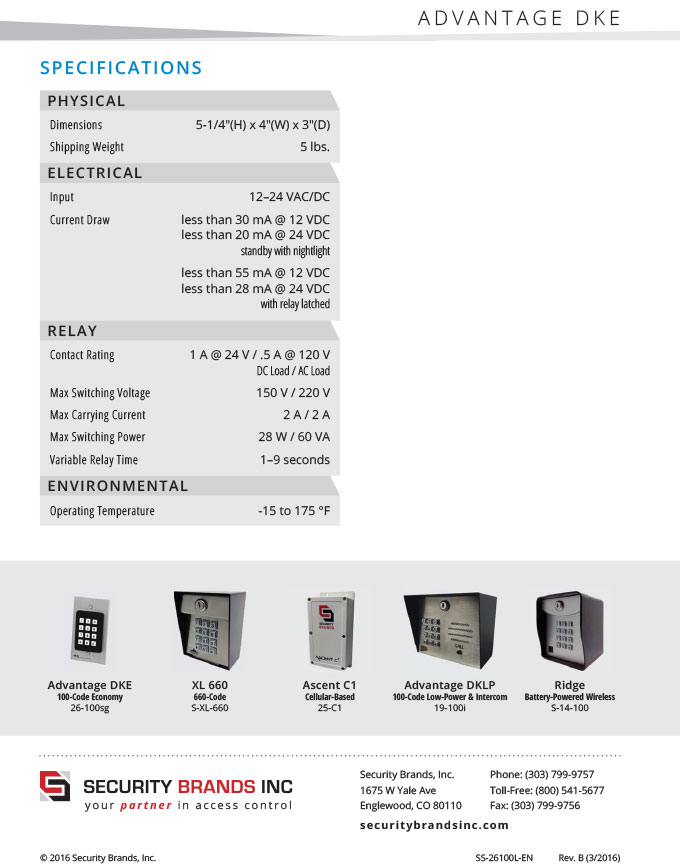

Security Brands Advantage DKE 26-100SG Digital Keypad - 100 Codes / Single GangGD# SBI-26-100sg MFR# 26-100SG• 100 Programmable 4-Digit Codes
• 12 - 24V AC / DC
• Single Variable Time Relay
• Power consumption: 25mA @ 24VAC
• Nightlight
• 2-Year Limited Manufacturer Warranty See More Details$199.00 -
Linear 0-211111 212i Keypad - 120 Codes / Indoor Flush MountGD# LIN-0-211111 MFR# 212I• 120 users
• Single gang design
• 1 SPDT 2 amp relay and three 50mA negative voltage outputs
• Optional 293 relay board converts 3 voltage outputs to SPDT relays
• Indoor use only
• 1 Week Lead Time See More Details$153.00 -
Linear 0-230722 212iLW Keypad - 120 Codes / Weather Resistant Flush MountGD# LIN-0-230722 MFR# 212ILW• 1 Relay
• 120 users
• Single-gang flush mount design
• Indoor/outdoor use
• 1 Week Lead Time See More Details$285.00 -
Linear 0-211222 212w Keypad - 120 Codes / Weather Resistant Flush MountGD# LIN-0-211222 MFR# 212W• 120 users
• Indoor/outdoor use
• Single-gang design
• For lighter volume use
• 1 Week Lead Time See More Details$225.00 -
Linear 0-230760 232FX Keypad - 120 Codes / Harsh Environment Flush MountGD# LIN-0-230760 MFR# 232FX• 120 users
• Indoor/outdoor use
• Flush mount
• Fits single-gang electrical box
• 1 Week Lead Time See More Details$431.00 -
Linear 0-213111 232i Keypad - 120 Codes / Indoor Flush MountGD# LIN-0-213111 MFR# 232I• 120 users
• Indoor use
• Flush mount
• For lighter volume environments
• 1 Week Lead Time See More Details$238.00 -
Linear 0-230800 232iLM-AL Keypad - 120 Codes / Weather Resistant Mullion Mount / AluminumGD# LIN-0-230800 MFR# 232ILM-AL• Aluminum
• 120 users
• Surface mount - fits on door mullion
• 3 - 1 amp SPDT relays in controller
• Indoor/outdoor use
• 1 Week Lead Time See More Details$454.00 -
Linear 0-230801 232iLM-BZ Keypad - 120 Codes / Weather Resistant Mullion Mount / BronzeGD# LIN-0-230801 MFR# 232ILM-BZ• Bronze
• 120 users
• Surface mount - fits on door mullion
• 3 - 1 amp SPDT relays in controller
• Indoor/outdoor use
• 1 Week Lead Time See More Details$441.00 -
Linear 0-232140 232SE Keypad - 120 Codes / Weather Resistant Surface MountGD# LIN-0-232140 MFR# 232SE• 120 users
• Surface mount vandal resistant design
• 1 SPDT 2 amp relay and 3 - 1 amp SPDT access relays
• Indoor/outdoor use
• 1 Week Lead Time See More Details$408.00 -
Linear 0-213222 232w Keypad - 120 Codes / Weather Resistant Flush MountGD# LIN-0-213222 MFR# 232W• 120 users
• Single-gang design
• 1 SPDT 2 amp relay and 3 - 1 amp SPDT access relays
• Indoor/outdoor use
• 1 Week Lead Time See More Details$260.00 -
Linear 0-230727 242iLW Keypad - 120 Codes / Weather Resistant Flush Mount / 4 RelaysGD# LIN-0-230727 MFR# 242ILW• 4 Relays
• 120 users
• Single-gang flush mount design
• Indoor/outdoor use
• 1 Week Lead Time See More Details$328.00 -
Linear 0-294021 2000e Keypad - 500 CodesGD# LIN-0-294021 MFR# 2000E• Backlit keys
• 500 users
• Single gang flush mount design
• Indoor/outdoor use
• Keypad programmable
• Five year Manufacturer Warranty
• 1 Week Lead Time See More Details$245.00
