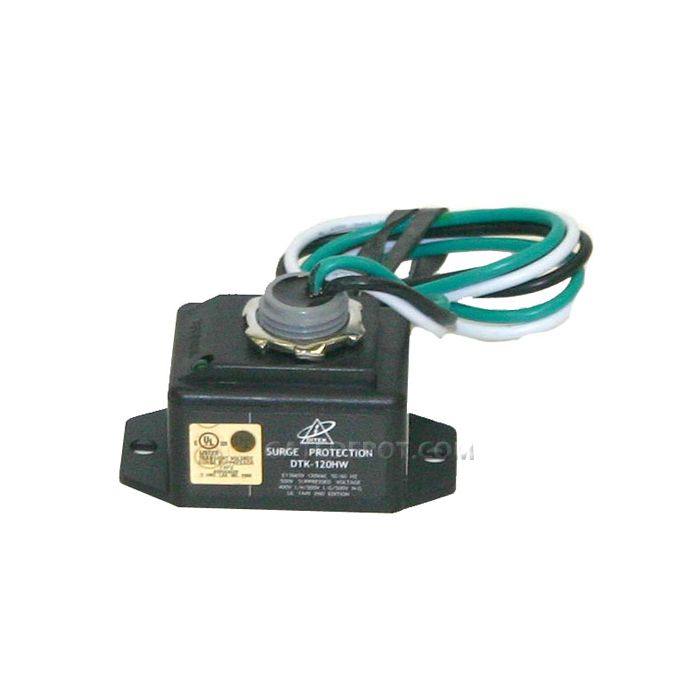

Ditek DTK-120HW Surge Protector

Product Highlights:

• 120VAC hardwired, single circuit, parallel connection
• Protects against power surges and spikes
MPN: DTK-120-HW
SKU: DTK-120-hw

Availability: In stock

$61.00

Recommended Accessories

titleOverview

Details

Class: AC Hard Wired Transient Voltage Surge Suppressor
Installation Point Single Circuit
Agency Approvals: UL, cUL 1449, IEEE C62.41B
Connection Method: Hardwire parallel connection
Continuous Current: Unlimited (Parallel Installation)
Response Time: <5nSec Installed, <1nSec Component Level
MCOV: 130 VRMS/185 VPK
Operating Frequency: 50/60Hz
AC Protection Modes: L - N, L - G, N - G
Service Voltage: 110 / 125 VAC
Diagnostics: Indicator Light
EMI/RFI Noise Filtering: Yes
Max Surge Current: 22,500 Amps
Max Energy Dissipation: 190 Joules
Surpressed Voltage Rating: 600V
Operating Temperature Range: -40 degrees C. to +85 degrees C.
Operating Environment: Outdoor use, out of direct weather (5% to 100% non-condensing)
MTBF: 6,000,000 Hours, MIL - 217H/Bellcore method

titleSpecifications

Additional Info

Brand Ditek
Former Part Number N/A
Manufacturer Part Number DTK-120-HW
Specifications Class: AC Hard Wired Transient Voltage Surge Suppressor Installation Point Single Circuit Agency Approvals: UL, cUL 1449, IEEE C62.41B Connection Method: Hardwire parallel connection Continuous Current: Unlimited (Parallel Installation) Response Time: <5nSec Installed, <1nSec Component Level MCOV: 130 VRMS/185 VPK Operating Frequency: 50/60Hz AC Protection Modes: L - N, L - G, N - G Service Voltage: 110 / 125 VAC Diagnostics: Indicator Light EMI/RFI Noise Filtering: Yes Max Surge Current: 22,500 Amps Max Energy Dissipation: 190 Joules Surpressed Voltage Rating: 600V Operating Temperature Range: -40 degrees C. to +85 degrees C. Operating Environment: Outdoor use, out of direct weather (5% to 100% non-condensing) MTBF: 6,000,000 Hours, MIL - 217H/Bellcore method
