DoorKing 1833 Telephone Entry / Access Control System

Be the first to review this product

Choose Flush or Surface Mount • 3,000 Phone Numbers / 3,000 Entry Codes / 8,000 Device Codes • Control up to 48 additional entry points • Full duplex voice communication • 3 Relays / 2 Wiegand Inputs • Elevator Control • Cellular, Internet, or POTS Connections • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

From $2,284.00

To $15,017.56

SKU

DKS-1833-bundle

Skip to the end of the images gallery

VIEW MANUALS, BROCHURES & VIDEOS

Skip to the beginning of the images gallery

Customize DoorKing 1833 Telephone Entry / Access Control System

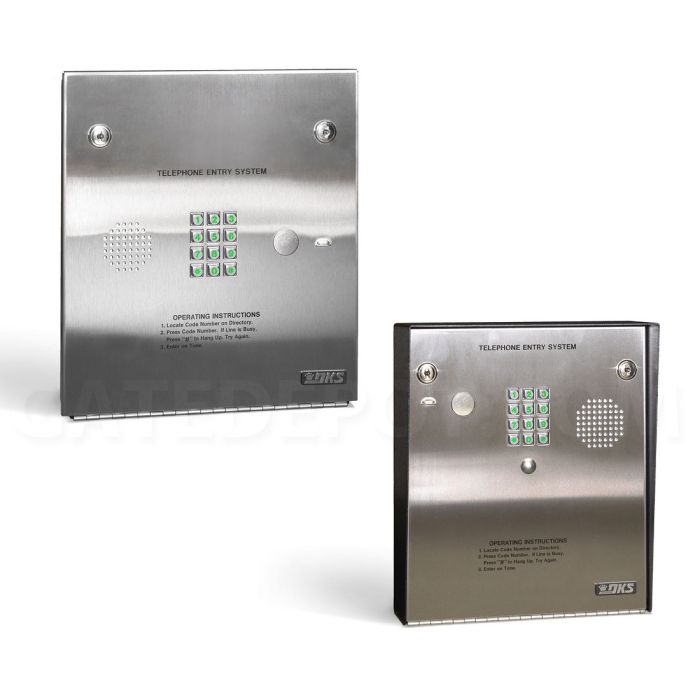

DoorKing 1833 Telephone Entry / Access Control System

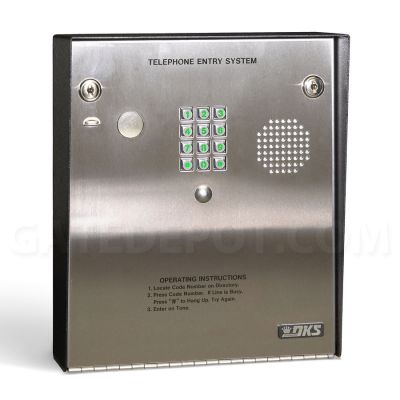

DoorKing 1833-080 Telephone Entry System - Surface Mount $2,284.00

• Surface Mount • 3,000 Phone Numbers / 3,000 Entry Codes / 8,000 Device Codes • Control up to 48 additional entry points • Full duplex voice communication • 3 Relays / 2 Wiegand Inputs • Elevator Control • Cellular, Internet, or POTS Connections • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1833-080 MFR# 1833-080

Quantity

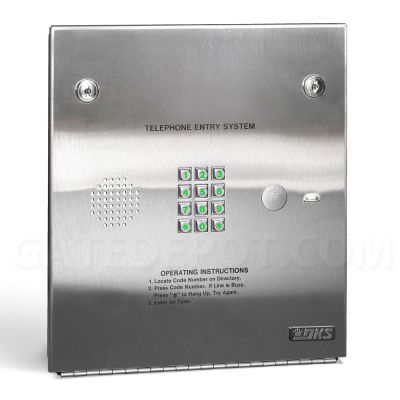

DoorKing 1833-084 Telephone Entry System - Flush Mount $2,284.00

• Flush Mount • 3,000 Phone Numbers / 3,000 Entry Codes / 8,000 Device Codes • Control up to 48 additional entry points • Full duplex voice communication • 3 Relays / 2 Wiegand Inputs • Elevator Control • Cellular, Internet, or POTS Connections • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1833-084 MFR# 1833-084

Quantity

Service Connection Options

DoorKing 1800-080 Cellular Voice + Data $968.00

• DKS 4G-LTE Cellular Connection Adapter • Requires DKS Cellular Option Subscription • 4G-LTE Service Provided by AT&T where available • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1800-080 MFR# 1800-080

Quantity

DoorKing 1815-578 VoIP Adapter Kit - Voice Communication $124.50

• VoIP Adapter - Voice Communication • DKS Internet Option - Plug & Play • Requires DKS Internet Options Subscription • Works with 1830-186 TCP/IP Converter • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1815-578 MFR# 1815-578

Quantity

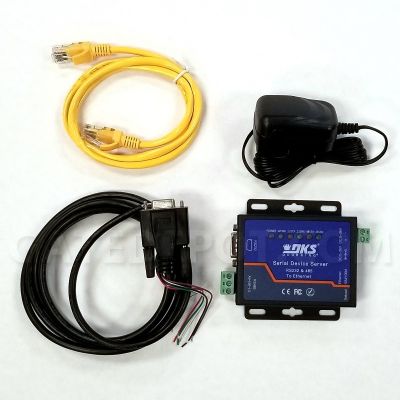

DoorKing 1830-186 TCP/IP Converter Kit - Plug & Play $177.00

• VoIP Adapter - Data Transfer • DKS Internet Option - Plug & Play • Requires DKS Internet Options Subscription • Works with 1815-568 VoIP Adapter Kit • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1830-186 MFR# 1830-186

Quantity

Doorking 2334-080 VoIP - TCP/IP Control Box $469.75

• VoIP Voice & Data • DKS VoIP or Data over IP subscription Required • For 1830 Series • 3-5 Day Lead Time

GD# DKS-2334-080 MFR# 2334-080

Quantity

DoorKing 1830-185 TCP/IP Converter Kit - Manual $177.00

• TCP/IP Converter Kit • DKS Internet Option - Manual IP Configuration • Uses your provider subscription and hardware • For 1830 Series • 3-5 Day Lead Time

GD# DKS-1830-185 MFR# 1830-185

Quantity

Wired Expansion

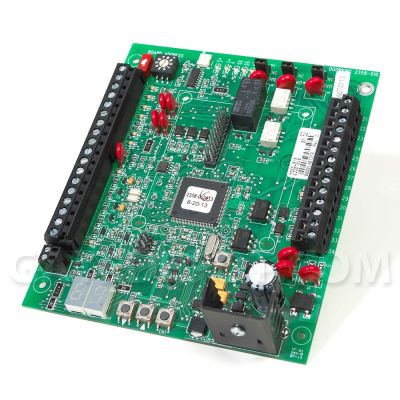

DoorKing 2358-010 Tracker Expansion Board $382.25

• Tracker Expansion Control Board • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2358-010 MFR# 2358-010

Quantity

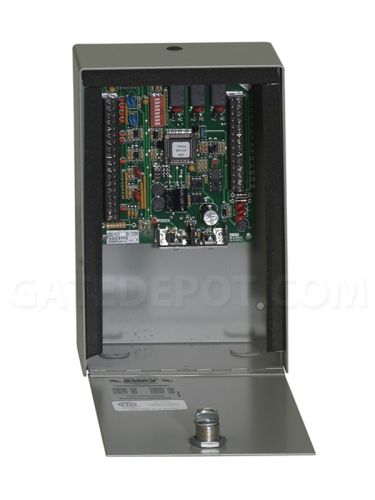

DoorKing 2351-080 Tracker Expansion Enclosure w/ 1 Board $518.00

• One Board / Single Enclosure • Expands DKS access controllers to control up to 48 wired • Provides power and inputs for almost any 26, 30 or 31-bit wiegand device • Forced entry alarm output relay • Door ajar alarm output relay • Request to exit input • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2351-080 MFR# 2351-080

Quantity

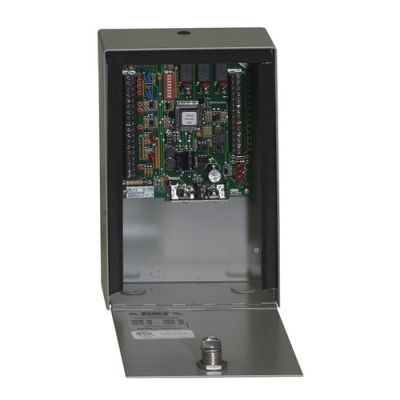

DoorKing 2351-085 Tracker Expansion Enclosure & Wireless Module w/ 1 Board $724.00

• One Board / Single Enclosure & Wireless Module • Expands DKS access controllers to control up to 48 wired / 24 wireless entry points • Provides power and inputs for almost any 26, 30 or 31-bit wiegand device • Forced entry alarm output relay • Door ajar alarm output relay • Request to exit input • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2351-085 MFR# 2351-085

Quantity

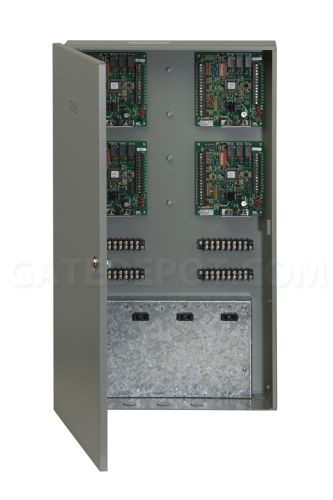

DoorKing 2351-082 Tracker Expansion Pre-Wired Quad Enclosure w/ 1 Boards $947.00

• One Board / Pre-Wired Quad Enclosure • Expands DKS access controllers to control up to 48 wired • Provides power and inputs for almost any 26, 30 or 31-bit wiegand device • Forced entry alarm output relay • Door ajar alarm output relay • Request to exit input • 2 Year Limited Manufacturer Warranty • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2351-082 MFR# 2351-082

Quantity

Wireless Expansion

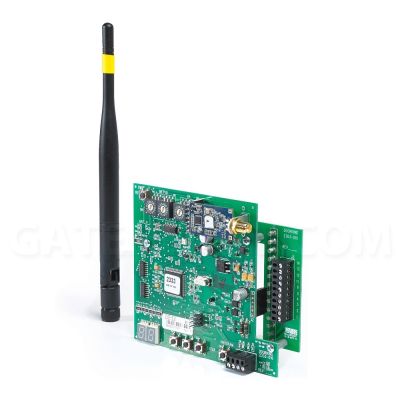

DoorKing 2333-080 Wireless Baseboard $462.50

• The 2333 RF baseboard is installed in the 1833, 1835, 1837 and 1838 access controller and can communicate with up to 24 remote access points • 3-5 Day Lead Time • Circuit Boards are Non Returnable

GD# DKS-2333-080 MFR# 2333-080

Quantity

DoorKing 1470-080 Remote Module $284.75

• Plugs into the 2358 circuit board to provide the Tracker Expansion Board with a wireless Wiegand connection • 900 MHz • Range (line of sight) Disk antenna - 500' • Range (line of sight) 6" antenna - 1000' • Includes 6" antenna & Vandal resistant dome antenna • NOT A STAND-ALONE DEVICE — Must be installed on 2358 tracker board • Must be used in conjunction with 2333-080 • The use of DUAL BAND repeaters 2332-080 is recommended • 2yr Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1470-080 MFR# 1470-080

Quantity

DoorKing 2332-080 Dual Band Repeater $428.50

• The 2332 dual band repeater (DBR) can be used when distances between the 2333 baseboard and 1470 remote module are out of range with each other • ONLY 1 DBR can be used per each 2333 and 1470 set • 3-5 Day Lead Time

GD# DKS-2332-080 MFR# 2332-080

Quantity

Flush Mount Installation Kit

1814-165 is REQUIRED for Standard Flush Mount Installations

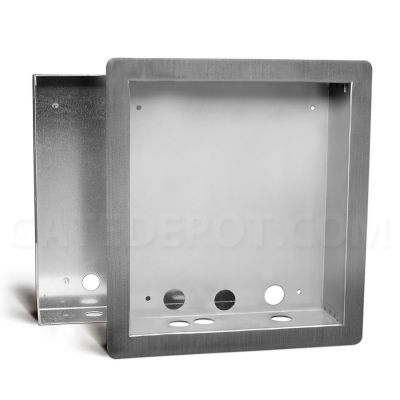

DoorKing 1814-165 Flush Mount Kit - Stainless Steel $408.50

• Stainless Steel • Required for Flush Mount Units • Includes rough-in box and trim ring • Use with flush mount 1803, 1810, 1833, 1834, 1835 & 1837 80 Series Telephone Entry Systems • 3-5 Day Lead Time

GD# DKS-1814-165 MFR# 1814-165

Quantity

Keypad

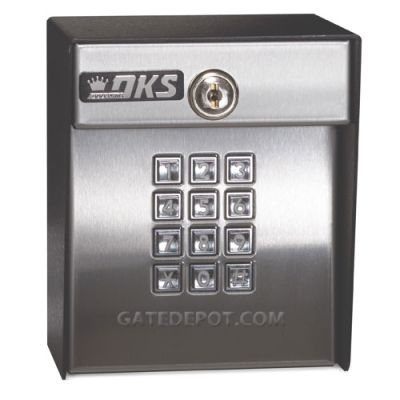

DoorKing 1815-051 Keypad - Surface Mount w/ Stainless Steel Faceplate $394.75

• Surface Mount w/ Stainless Steel Faceplate • Output format is 26-bit wiegand • 2 Year Limited Manufacturer Warranty • Not stand-alone - for use with an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-051 MFR# 1815-051

Quantity

Proximity Readers

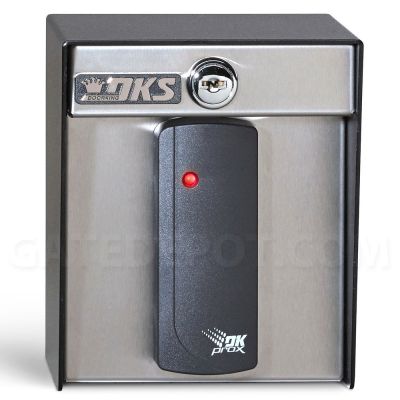

DoorKing 1815-330 RFID Proximity Reader - DK Prox - Surface Mount Enclosure / 3" Range $199.00

• Surface Mount Enclosure w/ 3" Range • 26-bit Wiegand Output • 125kHz • 5 Year Limited Manufacturer Warranty • Not a Stand-Alone unit, must be connected to an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-330 MFR# 1815-330

Quantity

DoorKing 1815-333 RFID Proximity Reader - DK Prox - Surface Mount Enclosure / 3" Range & Expansion Board $595.00

• Surface Mount Enclosure w/ 3" Range & Tracker Expansion Board • 26-bit Wiegand Output • 125kHz • 5 Year Limited Manufacturer Warranty • Not a Stand-Alone unit, must be connected to an Access Controller • 3-5 Day Lead Time

GD# DKS-1815-333 MFR# 1815-333

Quantity

Credentials

DoorKing 1508-120 RFID Proximity Cards - DK Prox / Clamshell $3.57

• DK Prox Card, Clamshell - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-120 MFR# 1508-120

Quantity

DoorKing 1508-123 RFID Proximity Key Fobs - DK Prox $5.29

• DK Prox Card, Keyfob - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-123 MFR# 1508-123

Quantity

Long Range Access

DoorKing 1815-350 Long Range Reader - DK Prox / AVI - 25' $2,077.00

• Adjustable read range: 8 ft to 25 ft • Two different operating modes: timing and trigger • Uses frequency hopping technology in the UHF frequency band (902 - 928 MHz) • Adjustable timing intervals between consecutive readings of same tag • Uses passive tags - no batteries to worry about • Dual technology cards are available allowing a single card to be used with both AVI and standard DK Prox readers • 5 Year Limited Manufacturer Warranty • 3-5 Day Lead Time

GD# DKS-1815-350 MFR# 1815-350

Quantity

DoorKing 1508-198 RFID Proximity Cards - UHF DK Prox Dual Technology / ISO $10.02

• UHF DK Prox Dual Technology Card - Factory pre-coded • Card numbers may, or may not be, in numerical sequence • For use with all DK Prox Card Readers • Sold in Blocks 50 • Price shown is price per card • 3-5 Day Lead Time

GD# DKS-1508-198 MFR# 1508-198

Quantity

DoorKing 1815-318 Windshield Holder $3.09

• Windshield Holder for Vehicle Access • 3-5 Day Lead Time

GD# DKS-1815-318 MFR# 1815-318

Quantity

DoorKing 1815-319 Rearview Mirror Holder $3.09

• Rearview Mirror Holder for Vehicle Access • 3-5 Day Lead Time

GD# DKS-1815-319 MFR# 1815-319

Quantity

Goosenecks

DoorKing 1200-037 Gooseneck - Pad/Post Mount - Heavy Duty Offset / 49" $593.00

• Pad mount - in-ground adapters are available • 49" to top of mounting plate • Sweeps out approximately 14 inches • Constructed from 4x4 steel • 3-5 Day Lead Time

GD# DKS-1200-037 MFR# 1200-037

Quantity

DoorKing 1200-038 Gooseneck - Post Mount - Heavy Duty Offset $494.00

• Post mount • Heavy duty gooseneck with offset • Replaces 1200-048 • 3-5 Day Lead Time

GD# DKS-1200-038 MFR# 1200-038

Quantity

* Required Fields

Your Customization

DoorKing 1833 Telephone Entry / Access Control System

In stock

Qty

$2,284.00

Summary

Overview

Product Details

The Model 1833 is an ideal telephone entry and access control system that is suited for applications that do not require a directory or in applications where a separate directory exists. Each 1830 Series unit allows Voice and Data connection over either Cellular, VoIP, Wireless, or POTS. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. The easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. Up to 48 wired remote access points (or 24 wirelessly) can be controlled with the 1833 using Tracker expansion boards. Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings. For additional security, the 1833 allows you to monitor activity AS IT HAPPENS on your computer display and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations: passive, active and trap.

The 1833 stores up to 3000 phone numbers and 8000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion boards (up to 24 wirelessly) and up to eight (8) elevators using the elevator control board add-on. The 1833 has 8000 device codes (for card readers, keypads, and RF devices), and 31 security levels.

The 1833 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:

Cellular 4G-LTE service (note 1)
VoIP (note 2)
POTS - Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.

Note 2: Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186 requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider subscription & hardware.

Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your existing internet connection - using - IM Server Modem (subscription required). DoorKing does not recommend using a POTS line for programming the telephone entry system. DoorKing can no longer guarantee programming via POTS / modem as many phone company services and switches no longer support modem communications as these devices are considered to be obsolete.

Go to Connection Options for further details

Remote Account Manager and Transaction Analysis software is included with the system
Programmable directory codes (1-4 digits)
10 and 11-digit dialing capability
31 Security (permission) Levels - 29 Programmable (2 fixed levels)
Interfaces with two card readers - expandable to 48 with wired tracker expansion board, or up to 24 wirelessly
Live Streaming
Live transactions
Anti-pass back
8000 event transaction buffer
Database import/export capability
Built-in clock/calendar
Holiday schedule
Hold open time zones
Entry code time zones
Built-in postal lock provision
True Full Duplex communication
Stores up to 3000 telephone numbers and names
Transaction buffer stores last 8000 events
Stores up to 8000 access card codes
31 security (permission levels), 29 programmable (2 fixed levels)
8 hold open time zones
Three anti-pass back configurations: passive, active and trap
Elevator control for up to 8 elevators, each serving 64 floors - Requries Elevator Control Board
Expandable to control up to 48 wired entry points or 24 wirelessly - Requires Tracker Expansion Board(s)
4-digit entry codes, one for each telephone number
3 form "C" dry contact relays
EEPROM memory chip
Two 16 VAC, 20 VA power transformers supplied
FCC (US): DUF6VT-12874-OT-T
DOC (CAN): 1736 4528 A
Compliant with UL 294 / ETL listed
Dimensions Surface Mount: 13"H x 11.25"W x 4.75"D
Dimensions Flush Mount: 13.5"H x 12"W x 2.5"D
