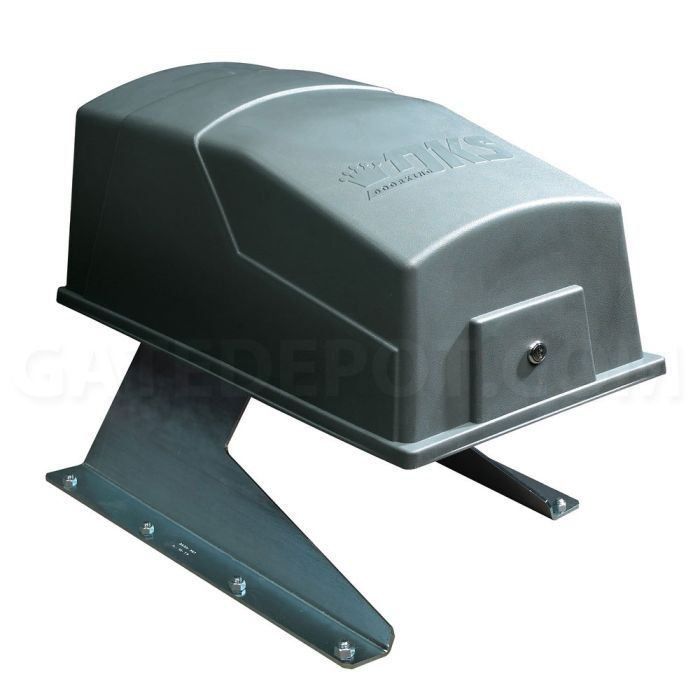

DoorKing 6100 Swing Gate Operator

Product Highlights:

• Call Us for Lower Price!
• 14' x 500 Lbs
• 115VAC Power Source / 115VAC Operating Voltage
• Opens 90° ~ 10 - 12 Seconds
• Continuous Duty - 60 Cycles per Hour
• 5-Year Limited Warranty
Additional Entrapment Prevention Devices REQUIRED
MADE IN USA
All Products Require a 3-5 Day Lead Time
SKU: DKS-6100-bundle

From: $1,838.00

To: $4,527.95

Price as configured: $0.00

For Bi-Parting Gates, order both Primary and Secondary Operators
  • GD# DKS-6100-080 MFR# 6100-080
    • Primary Operator
    MSRP: $2,670.00
    PRICE: $2,403.00
    • Primary Operator
  •
  • GD# DKS-6100-081 MFR# 6100-081
    • Secondary Operator w/ 40' Cable • All Products Require a 3-5 Day Lead Time
    MSRP: $2,042.00
    PRICE: $1,838.00
    • Secondary Operator w/ 40' Cable • All Products Require a 3-5 Day Lead Time
  •

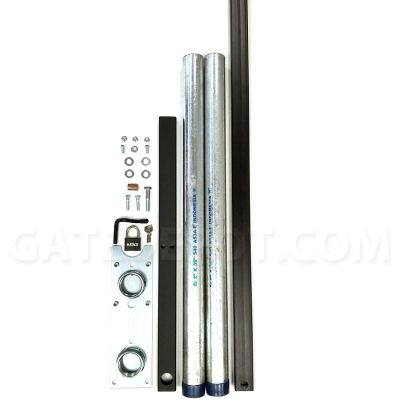

  • GD# DKS-2600-674 MFR# 2600-674
    • Call Us for Lower Price! • Post Mount, Arms & Hardware Kit • For 6050 & 6100 Operators • Hardware Kit Must Be Ordered For New Installations • Order Two For Dual Gates • All Products Require a 3-5 Day Lead Time
    MSRP: $436.00
    PRICE: $392.00
    • Call Us for Lower Price! • Post Mount, Arms & Hardware Kit • For 6050 & 6100 Operators • Hardware Kit Must Be Ordered For New Installations • Order Two For Dual Gates • All Products Require a 3-5 Day Lead Time
  •
  • GD# DKS-2600-671 MFR# 2600-671
    • Call Us for Lower Price! • Pad Mount, Arms & Hardware Kit • For 6050 & 6100 Operators • Hardware Kit Must Be Ordered For New Installations • Order Two For Dual Gates • All Products Require a 3-5 Day Lead Time
    MSRP: $528.00
    PRICE: $475.00
    • Call Us for Lower Price! • Pad Mount, Arms & Hardware Kit • For 6050 & 6100 Operators • Hardware Kit Must Be Ordered For New Installations • Order Two For Dual Gates • All Products Require a 3-5 Day Lead Time
  •
Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached
See Accessories for more Sensing Edge options
  • GD# MTC-e3k MFR# E3K
    • 40 Ft Sensing Distance • 24-240VAC/DC • Includes Bracket & 3" Reflector • Enclosure Rated NEMA 1, 4, 4X, 12 & 13 • UL325 Compliant • Manufactured by Omron
    PRICE: $188.00
    • 40 Ft Sensing Distance • 24-240VAC/DC • Includes Bracket & 3" Reflector • Enclosure Rated NEMA 1, 4, 4X, 12 & 13 • UL325 Compliant • Manufactured by Omron
  •
  • GD# MTC-cov-e3k MFR# COV-E3K
    • Cover for E3K • Steel w/ Black Powder Coat
    PRICE: $62.00
    • Cover for E3K • Steel w/ Black Powder Coat
  •
  • GD# MLE-me120-2e-03-t2 MFR# ME120-2E-03-T2
    • 3'
    PRICE: $140.00
    • 3'
  •
  • GD# MLE-rb-g-k10 MFR#
    • Includes Transmitter (RB-TX10) and Receiver (RB-G-RX10) • Wirelessly monitors 10k resistive edge • 2016 UL325 Compliant • 2 Channel receiver compatible with up to 6 transmitters/edges • AA lithium batteries used in transmitter unit • 2yr warranty
    MSRP: $365.33
    PRICE: $246.00
    • Includes Transmitter (RB-TX10) and Receiver (RB-G-RX10) • Wirelessly monitors 10k resistive edge • 2016 UL325 Compliant • 2 Channel receiver compatible with up to 6 transmitters/edges • AA lithium batteries used in transmitter unit • 2yr warranty
  •
  • GD# DKS-1601-154 MFR# 1601-154
    • Call Us for Lower Price! • 120 VAC • Use if temperature routinely falls below 10°F (‐12°C) • Compatible with: 6050, 6100, 6300, 9000, 9024*, 9050, 9100, 9150, 9310 • *Heater is only active when AC source power is present • All Products Require a 3-5 Day Lead Time
    MSRP: $460.00
    PRICE: $414.00
    • Call Us for Lower Price! • 120 VAC • Use if temperature routinely falls below 10°F (‐12°C) • Compatible with: 6050, 6100, 6300, 9000, 9024*, 9050, 9100, 9150, 9310 • *Heater is only active when AC source power is present • All Products Require a 3-5 Day Lead Time
  •
  • GD# DKS-2600-755 MFR# 2600-755
    • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • 30 Feet • All Products Require a 3-5 Day Lead Time
    MSRP: $208.00
    PRICE: $187.00
    • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • 30 Feet • All Products Require a 3-5 Day Lead Time
  •
  • GD# DKS-2600-756 MFR# 2600-756
    • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • 40 Feet • All Products Require a 3-5 Day Lead Time
    MSRP: $274.00
    PRICE: $247.00
    • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • 40 Feet • All Products Require a 3-5 Day Lead Time
  •
  • GD# DKS-2600-757 MFR# 2600-757
    • Call Us for Lower Price! • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • 50 Feet • All Products Require a 3-5 Day Lead Time
    MSRP: $346.00
    PRICE: $311.00
    • Call Us for Lower Price! • Use to Connect 2 Operators for Tandem Operation • Cable Contains 5-#18 Gauge & 4-#16 Gauge Wires • Saves Time & Makes Higher Quality Installation • 50 Feet • All Products Require a 3-5 Day Lead Time
  •
  • GD# DGT-fuse-7.5 MFR# FUSE-7.5
    • 7.5 Amp Fuse and Fuse Holder • For 1/2 HP Single Gate Operators
    PRICE: $5.95
    • 7.5 Amp Fuse and Fuse Holder • For 1/2 HP Single Gate Operators
  •
  • GD# DGT-fuse-10 MFR# FUSE-10
    • 10 Amp Fuse and Fuse Holder • For Dual Gate Operators, Install in the Master Unit
    PRICE: $5.95
    • 10 Amp Fuse and Fuse Holder • For Dual Gate Operators, Install in the Master Unit
  •
  • GD# DKS-9410-010 MFR# 9410-010
    • Plug-In Loop Detector • Loop Detector plugs directly into DKS gate operator control boards • For use with DoorKing gate operators only • All Products Require a 3-5 Day Lead Time
    MSRP: $220.00
    PRICE: $198.00
    • Plug-In Loop Detector • Loop Detector plugs directly into DKS gate operator control boards • For use with DoorKing gate operators only • All Products Require a 3-5 Day Lead Time
  •
  • GD# DKS-9409-010 MFR# 9409-010
    • Call Us for Lower Price! • Two Channel Loop Detector • Loop Detector plugs directly into DKS gate operator control boards • For use with DoorKing gate operators only • All Products Require a 3-5 Day Lead Time
    MSRP: $416.00
    PRICE: $374.00
    • Call Us for Lower Price! • Two Channel Loop Detector • Loop Detector plugs directly into DKS gate operator control boards • For use with DoorKing gate operators only • All Products Require a 3-5 Day Lead Time
  •
Uphill arm pivot assembly kit used with DoorKing 6050, 6100, 6300, and 6500 operators when the gate opens on an uphill or downhill slope.
Should be used with 1203-084 Torsion Rod Assembly
  • GD# DKS-1203-084 MFR# 1203-084
    • Call Us for Lower Price! • Counter-balances un-level, uphill swing gates • Prevents gate runaway & relieves pressure on the gate operator • Includes top bracket, bottom bracket & torsion rod • Up to five additional torsion rods can be added • Additional torsion rod P/N 2600-299 • All Products Require a 3-5 Day Lead Time
    MSRP: $332.00
    PRICE: $299.00
    • Call Us for Lower Price! • Counter-balances un-level, uphill swing gates • Prevents gate runaway & relieves pressure on the gate operator • Includes top bracket, bottom bracket & torsion rod • Up to five additional torsion rods can be added • Additional torsion rod P/N 2600-299 • All Products Require a 3-5 Day Lead Time
  •
  • GD# DKS-6500-490 MFR# 6500-490
    • Use when gate opens on an uphill or downhill slope • For 6050, 6100, 6300, and 6500 operators • Should be used with 1203-084 Torsion Rod Assembly • All Products Require a 3-5 Day Lead Time
    MSRP: $228.00
    PRICE: $205.00
    • Use when gate opens on an uphill or downhill slope • For 6050, 6100, 6300, and 6500 operators • Should be used with 1203-084 Torsion Rod Assembly • All Products Require a 3-5 Day Lead Time
  •

Price as configured: $0.00

Recommended Accessories

titleOverview

Details

The Model 6050 and 6100 operators are designed to operate vehicular swing gates in residential and commercial applications. These operators are designed so that they can be either pad or post mounted without any costly and time consuming field modifications. You need to specify which mounting method when ordering. The unique design of these operators allows the gate arm to be attached to the bottom rail of the gate. This eliminates the need for any brackets to be welded to the face of the gate and creates an aesthetically pleasing installation.

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

Features

  • Self-adjusting, no maintenance magnetic limits
  • Overlap feature for dual swing gate operation
  • Designed with a built-in primary and secondary entrapment prevention system
  • Ports for plug-in loop detectors
  • Fail-safe release
  • Tamper detect circuit
  • Gate tracker reporting output
  • Programming switches
  • Built-in reset switch
  • Built-in power On/Off switch
  • Maximum gate width 14-feet
  • Maximum gate weight 500 pounds*. (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator)
  • Swings gate 90 degrees in approximately 10-seconds
  • 1/2 HP limited-duty motor
  • 115 VAC, 5.4 Amps
  • Class I and Class II applications
  • Compliant with UL 325 and 991. ETL Listed.
  • MADE IN USA

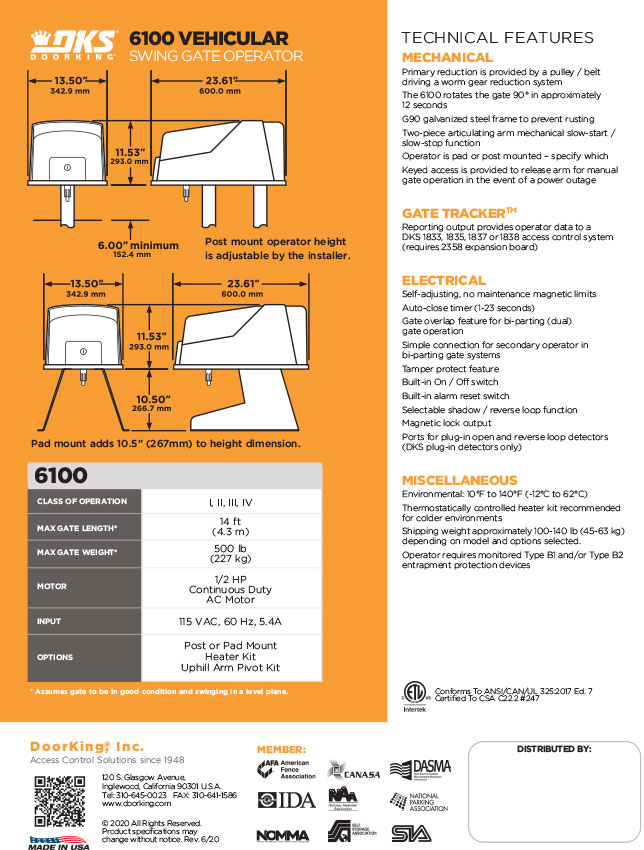

titleSpecifications

Additional Info

Brand Doorking
Manufacturer Part Number No
Former Part Number No
Specifications No
Main Power Source No
Operational Voltage No
Maximum Gate Width Capacity No

titleACCESSORIES

Select Optional Accessories Below to Customize Your Equipment:

Showcased Accessories

  • All Products
  • Radio Remotes
  • Emergency Access
  • Radio Remote Accessories
  • Gate Operator Accessories

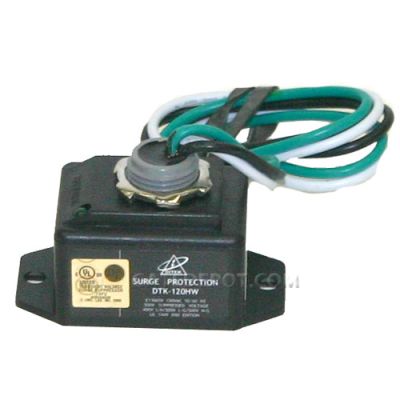

  • Surge Suppressors & Protectors
  • Sensor Probes / Wands
  • Through-Beam
  • Safety Edges

titleManuals & Resources

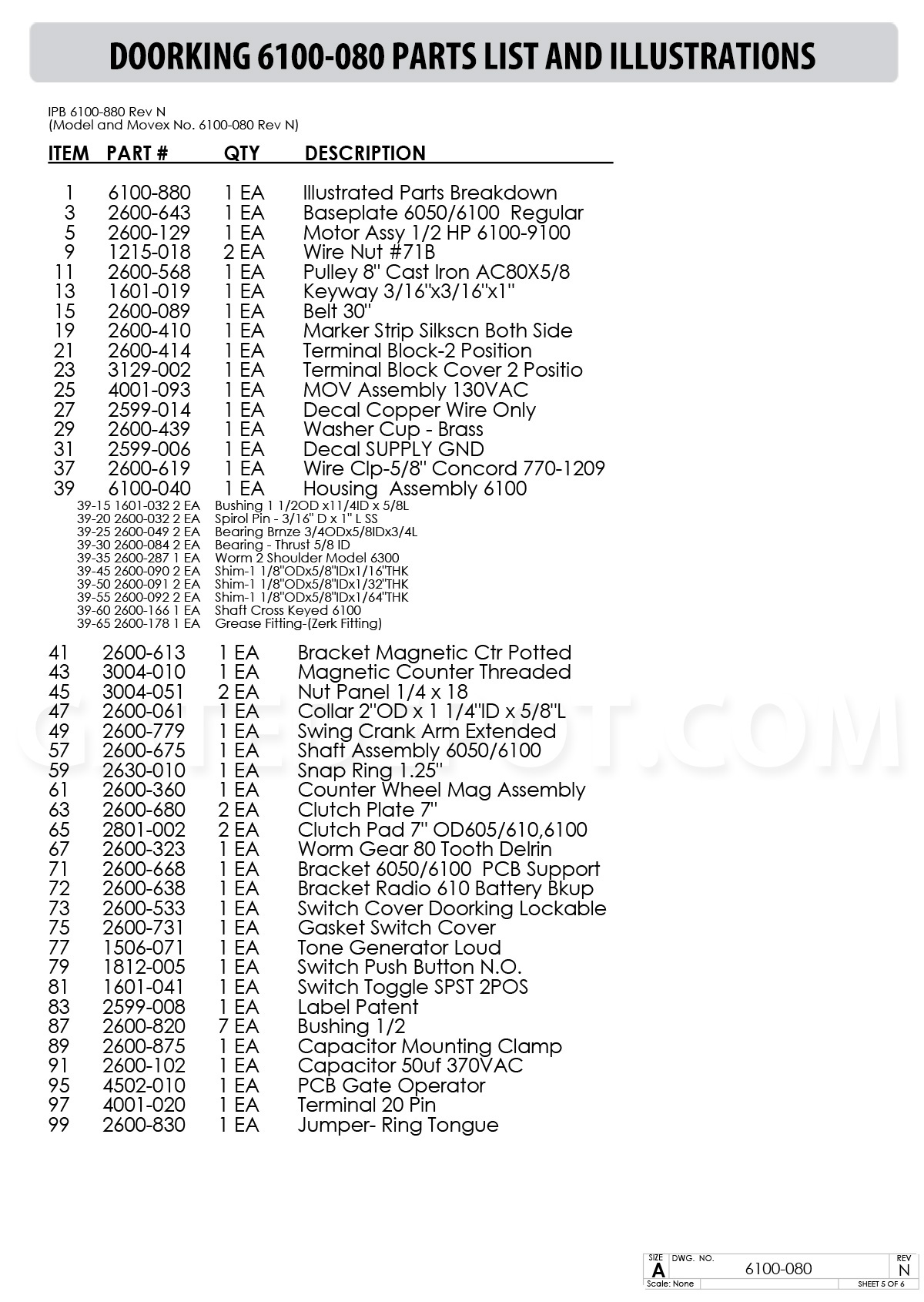

titleReplacement Parts

DoorKing 2600-635 Mounting Plate

GD# DKS-2600-635 MFR# 2600-635
• Replacement Mounting Plate for Post Mounted Operators with Short Spread Mounting Posts
• For 6050 & 6100 Models
See More Details
$152.00

DoorKing 2801-002 Clutch Disk

GD# DKS-2801-002 MFR# 2801-002
• Replacement Clutch Disk
• For 605, 610, 615, 6050, & 6100 Models
See More Details
$21.00

DoorKing 2600-260 Mounting Pipe

GD# DKS-2600-260 MFR# 2600-260
• Use with 6050 / 6100 post mount operators
• 2-1/2" O.D. x 3' pipe, threaded on one end
See More Details
$123.00

DoorKing 2600-711 Bracket

GD# DKS-2600-711 MFR# 2600-711
• Replacement Bracket
• For 6050 & 6100 Models
See More Details
$56.00

DoorKing 2600-089 Replacement Drive Belt

GD# DKS-2600-089 MFR# 2600-089
• Replacement Drive Belt
• For 6050 & 6100 Models
See More Details
$28.00

DoorKing 2600-672 Arm Release & Joint Assembly

GD# DKS-2600-672 MFR# 2600-672
• Replacement Arm Release & Joint Assembly
• For 6050 & 6100 Models
See More Details
$155.00

DoorKing 6100-040 Cross-shaft Cast Housing Assembly

GD# DKS-6100-040 MFR# 6100-040

• Call Us for Lower Price!

See More Details
$274.00

DoorKing 2600-650 Flange Plate

GD# DKS-2600-650 MFR# 2600-650
• Replacement Flange Plate
All Products Require a 3-5 Day Lead Time
See More Details
$46.00

DoorKing 3004-010 Magnetic Counter Probe

GD# DKS-3004-010 MFR# 3004-010
• Magnetic Counter Probe
All Products Require a 3-5 Day Lead Time
See More Details
$152.00

DoorKing 2600-634 Connecting Rod

GD# DKS-2600-634 MFR# 2600-634
• Connecting Rod
All Products Require a 3-5 Day Lead Time
See More Details
$30.00

DoorKing 2600-779 Crank Arm

GD# DKS-2600-779 MFR# 2600-779
• Crank Arm Replacement Part
• For 6050 & 6100 Models
See More Details
$59.00

DoorKing 2600-102 Motor Capacitor

GD# DKS-2600-102 MFR# 2600-102
• Replacement Motor Capacitor
• For 6050 & 6100 Models
See More Details
$72.00

DoorKing 2600-675 Main Shaft

GD# DKS-2600-675 MFR# 2600-675
• Replacement Main Shaft
• For 605, 610, 6050 & 6100 Models
See More Details
$143.00

DoorKing 6100-210 Worm Gear 80 Tooth

GD# DKS-6100-210 MFR# 6100-210
• Replacement Delrin Main Drive Gear
• For 605, 610, 615, 6050 & 6100 Models
See More Details
$175.00

DoorKing 2600-061 2" Collar

GD# DKS-2600-061 MFR# 2600-061
• Replacement 2" Collar
• For 6050 & 6100 Models
See More Details
$15.00

DoorKing 2600-651 Connector Arm Clamp, Plated

GD# DKS-2600-651 MFR# 2600-651
• Replacement Connector Arm Clamp, Plated
All Products Require a 3-5 Day Lead Time
See More Details
$91.00

DoorKing 4502-010 Circuit Board

GD# DKS-4502-010 MFR# 4502-010

• Call Us for Lower Price!

See More Details
$547.00
