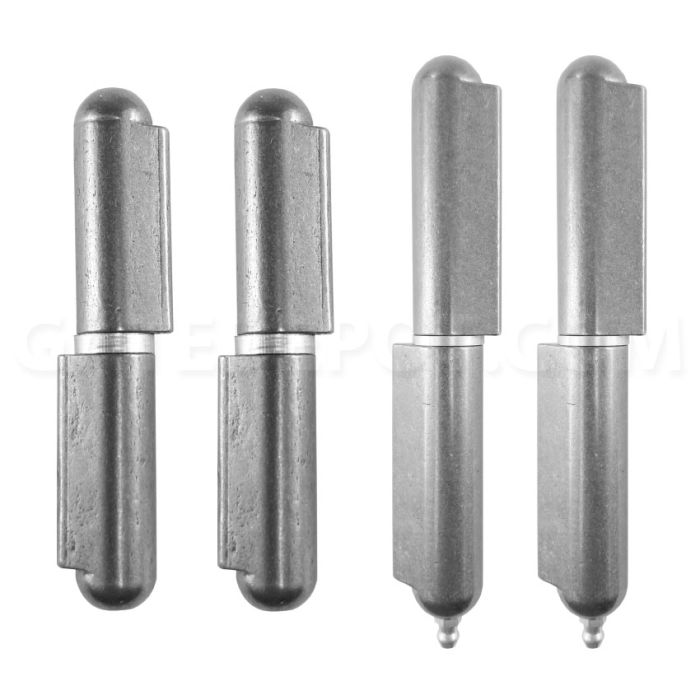

DuraGate V2A Teardrop Hinges - Stainless Steel

Choose from 300 to 700 lbs • High Weight Load Capacity • Can be Welded on as Lift-Off or can be Permanently Mounted • Stainless Steel Pins & Washers • Priced per Pair

From $26.00

To $481.00

SKU
DGT-v2a-bundle
Customize DuraGate V2A Teardrop Hinges - Stainless Steel
• 300 Lbs • 1/4" Pin • 2-3/8" L x 13-32" D x 15/32" S
DGT-v2a-060 V2A-060
• 350 Lbs • 5/16" Pin • 3-3/16" L x 1-2" D x 5/8" S
DGT-v2a-080 V2A-080
• 400 Lbs • 13/32" Pin • 4" L x 5/8" D x 3/4" S
DGT-v2a-100 V2A-100
• 500 Lbs • 1/2" Pin • 6" L x 3/4" D x 1" S
DGT-v2a-150 V2A-150
DGT-v2a-200gf V2A-200GF

* Required Fields

Your Customization
DuraGate V2A Teardrop Hinges - Stainless Steel
DuraGate V2A Teardrop Hinges - Stainless Steel

In stock

$26.00

Summary

    Product Details

    The two-piece weld on hinge is extremely popular due to its high weight load capacity as well as its professional appearance. It can be painted to match the door and frame, and is ideal for gates, steel doors, screen doors, and trailers. It can be welded on as lift-off or it can be permanently mounted. These weld-on hinges can also be zinc plated for extra protection against the elements.

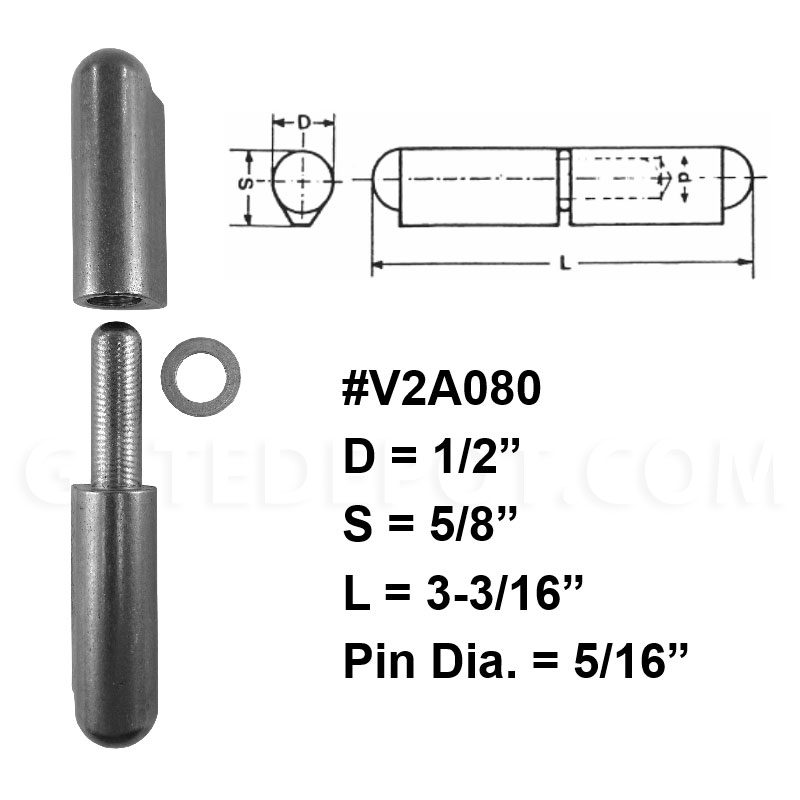

    Part Number
    Pin Diameter
    L
    D
    S
    Weight Rating
    Hinge Gap

    V2A-060
    1/4"
    2-3/8"
    13/32"
    15/32"
    300 lbs.
    17/32"
    V2A-080
    5/16"
    3-3/16"
    1/2"
    5/8"
    350 lbs.
    3/4"

    V2A-100
    13/32"
    4"
    5/8"
    3/4"
    400 lbs.
    7/8"

    V2A-150
    1/2"
    6"
    3/4"
    1"
    500 lbs.
    1-1/4"

    V2A-200GF
    5/8"
    8"
    29/32"
    1-1/8"
    700 lbs.
    1-11/32"

    Specifiction
    Brand Duragate
