DuraGate KIT-PAS-14X6-FS-SL Slide Gate & Automation Kit - Flat Top 14x6' Single w/ Platinum Access Operator

Complete Driveway Gate & Automation Kit INCLUDES: • Steel Driveway Gate w/ Black Powder Coat Finish • 6 Ft. High • Slide Gate Operator w/ 8-Year Limited Manufacturer Warranty* • 24VDC Battery Backup System - 2 7AH Batteries Included • Posts, Track, Receiver, Transmitters, Photo Eye & more! • Optional Bolt-On Decorative Ornamentals
MPN: KIT-14x6-FS-SL

As low as $3,805.00

SKU
KIT-pas-14x6-fs-sl-bundle
Customize DuraGate KIT-PAS-14X6-FS-SL Slide Gate & Automation Kit - Flat Top 14x6' Single w/ Platinum Access Operator
DGT-14x6-fs 14X6-FS
• Automation & Hardware Kit for 5 Ft. & 6 Ft. High Flat Top Gates • Not Available for Purchase Separately
KIT-SL-F-14
• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys
LFM-kpw5 KPW5
• 42" High with 12" Throw (1066 x 310mm) • Includes Base Plate Cover • Black Powder Coat Finish
DGT-gn-ped GN-PED
• 66" High with 12" Throw (1676 x 310mm) • Pre-Cut Conduit Hole • Black Powder Coat Finish
DGT-gn-post GN-POST
• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch
LFM-811lm 811LM
EMX-2805-1 EMX-2805-1
Personalize Your Gate!
• Hand Forged Cast Iron • Black Powder Coat Finish • Includes Self-Drilling Screws • 14" x 5" x 8-1/2" (approx)
DGT-scroll-1 SCROLL-1
• Hand Forged Cast Iron • Black Powder Coat Finish • Includes Self-Drilling Screws • 9" x 8-1/2" (approx)
DGT-scroll-2 SCROLL-2
• Hand Forged Cast Iron • Black Powder Coat Finish • Includes Self-Drilling Screws • 16-½" x 8-1/2" (approx)
DGT-scroll-3 SCROLL-3
• Hand Forged Cast Iron • Black Powder Coat Finish • Includes Self-Drilling Screws • 4-1/2" x 6-1/2" (approx)
DGT-scroll-4 SCROLL-4
For Extra Security Between Vertical Stakes. Can Be Finished with Spear Tips.
• 23.5" H x 3/4" Square • Hot Dip Galvanized Steel • Black Powder Coat Finish • Finial Stub for Spear Tips • For Use with DuraGate Gates & Fencing
DGT-PP PP
• Cast Iron • Black Powder Coat Finish • For Use With DGT Series Gates
DGT-spear-tip-1 SPEAR-TIP-1
• Cast Iron • Black Powder Coat Finish • For Use With DGT Series Gates
DGT-spear-tip-2 SPEAR-TIP-2
• Cast Iron • Black Powder Coat Finish • For Use With DGT Series Gates
DGT-spear-tip-3 SPEAR-TIP-3

* Required Fields

Your Customization
DuraGate KIT-14X6-FS-SL Flat Top 14x6' Single Slide Gate & Automation Kit
DuraGate KIT-PAS-14X6-FS-SL Slide Gate & Automation Kit - Flat Top 14x6' Single w/ Platinum Access Operator

In stock

$1,270.00

Summary

    Product Details

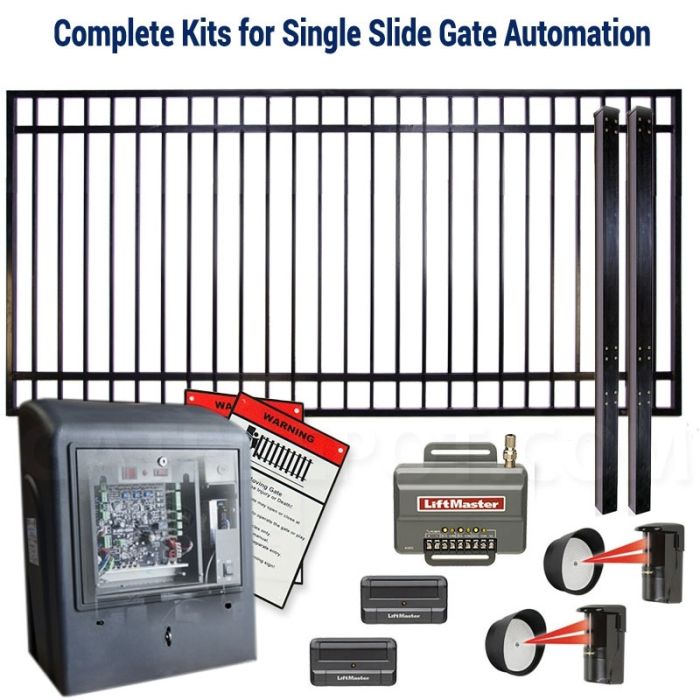

    This Complete Steel Driveway Gate with Automation Kit contains everything you need!

    The Kit Includes:

    • 1 - Single Steel Driveway Gate
    • 2 - 4-3/4" x 4-3/4" x 7' Steel Posts with Caps
    • 1 - Slide Gate Conversion Hardware Kit
    • 1 - Slide Gate Stop
    • 3 - Slide Gate V-Track Sections; each 2.4 Meter Length - 4 Sections for 14 Ft. Gates
    • 1 - Platinum Access Systems BLSL840 Slide Gate Operator w/ 8-Year Limited Manufacturer Warranty*
    • 1 - Radio Receiver - LiftMaster 850LM w/ 15' Antenna Extension Kit - LiftMaster 86LM
    • 2 - Remote 1-Button Visor Transmitters - LiftMaster 811LM
    • 2 - UL325-2016 Compliant Seco-Larm E-931-S50RRGQ Reflective Photoelectric Beam Sensors
    • 2 - Seco-Larm E-931ACC-HR1Q Hood Covers for Photo Beam Reflectors
    • 2 - 12V Sealed Lead Acid Batteries

    We have taken our years of experience and knowledge of the gate industry and applied it towards the design and construction of our residential / light industrial line of gates. Manufactured exclusively for Gate Depot, using our exacting specifications, these ready-to-ship steel gates are classical designs which offer security at a great price.

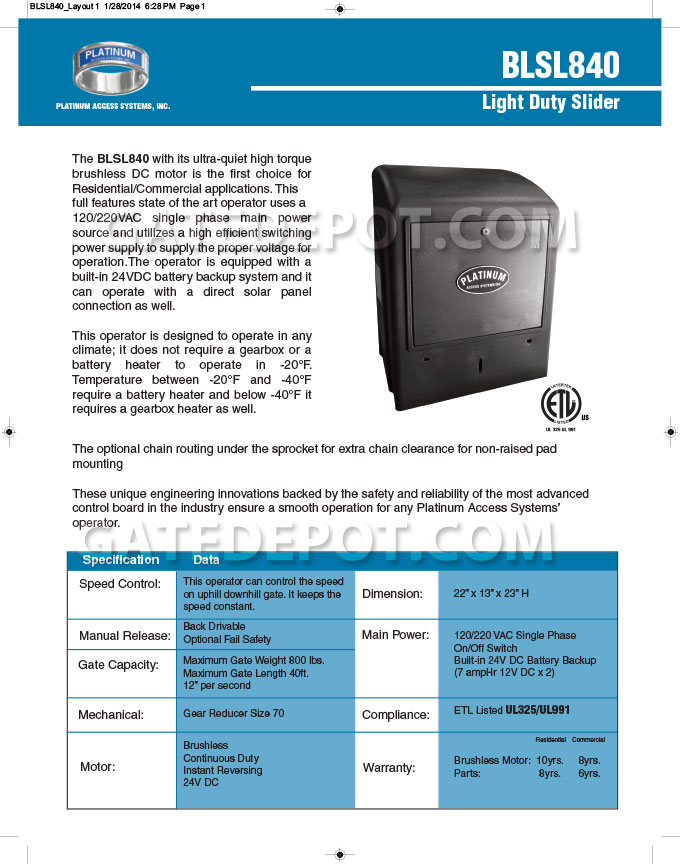

    The driveway gate is paired with the Platinum Access Systems BLSL840 a high-end automatic, slide gate opener powered by a maintenance-free, brushless, 24VDC solid-state, continuous duty motor. This operator has a wide range of features comparable with top brand names such as soft start/stop, dynamic speed control, fail safe/secure capability and built-in loop rack board and delay timer.

    The Platinum Access Systems BLSL840 is well engineered and fabricated out of high-grade material. The heavy-duty steel chassis is powder coated to resist corrosion and the access door has a weatherproof polyethylene cover.

    The Platinum Access Systems BLSL840 uses standard 120/220VAC power input and includes a step-down transformer to 24VDC for a solar ready installation. The 24VDC operating voltage enables the unit to operate during primary power failure using two 12V batteries (included).

    The package includes a receiver, 2 key chain style remotes and 2 UL325 compliant photo beams.

    IMPORTANT NOTICE / DISCLAIMER:

    - Bi-parting gate individual leaf size may vary up to 1/4".
    - We do not recommend purchasing two single gates to be installed as one bi-parting gate; height may vary up to 1".
    - There may be minor imperfections in the powder-coat finish. These will not affect the durability of the gate and if present, are not significantly noticeable.
    - Before installing posts in concrete, MEASURE the gate to ensure it is square. Measure from corner to corner, then each end from top to bottom. Measurements should not vary more than 1/4" - 1/2".
    - Gate width needs to be measured, then add 3-1/2" between posts for a single gate or 4" between posts for double gates.
    - Measure All Gates Prior to Installation! Due to manufacturing variables, gates MAY vary in width by 1" - 2". Measure & confirm gate width PRIOR to setting posts.
    - Shipping includes transporting the gate from our warehouse to the delivery address. It does NOT include lift gate service or unloading. Be prepared to unload the gate using a forklift with a boom or 3-4 people.

    Gate Features:

    • Heavy 2mm Wall on Frame and Stakes
    • Hot Dip Galvanized Steel Tubing & Flat Bar
    • Black Powder-Coat Finish
    • Weep Holes to Prevent Internal Rust

    Posts & Hinges:

    • 4mm (5/32") Hot Dip Galvanized Steel
    • Black Powder-Coat Finish
    • Pre-Drilled Holes for Hinge Attachment
    • Conduit Hole for Wiring

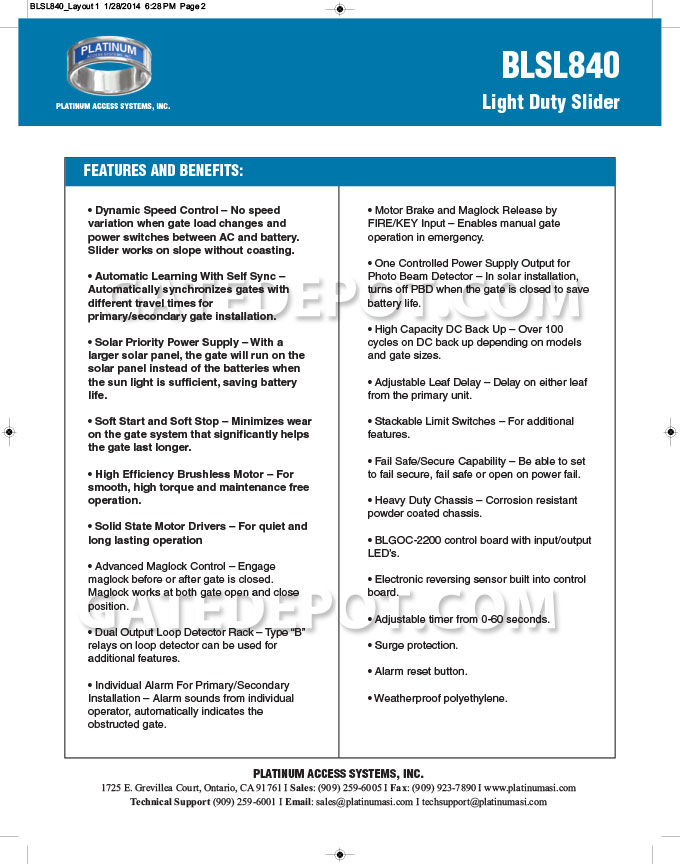

    Platinum Access Systems BLSL840 Slide Gate Operator

    • Continuous Duty
    • Capacity 800 Lbs. / 40 ft
    • Dynamic Speed Control – No speed variation when gate load changes and power switches between AC and battery. Slide gate works on slope without coasting
    • Automatic Learning With Self Sync – Automatically synchronizes gates with different travel times for primary/secondary gate installation
    • Solar Priority Power Supply – With a larger solar panel, the gate will run on the solar panel instead of the batteries when the sun light is sufficient, saving battery life
    • Soft Start and Soft Stop – Minimizes wear on the gate system that significantly helps the gate last longer
    • High Efficiency Brushless Motor – For smooth, high torque, and maintenance free operation
    • Solid State Motor Drivers – For quiet and long lasting operation
    • *High Capacity DC Backup – Over 100 Cycles on DC Backup Depending on Model & Gate Size - 2 7AmpHr 12VDC Batteries Included
    • Advanced Maglock Control
    • Dual Output Loop Detector Rack
    • Individual Alarm for Primary/Secondary Installation
    • Motor Brake & Maglock Release by FIRE/KEY Input
    • One Controlled Power Supply Output for Photo Beam Detector
    • Adjustable Leaf Delay
    • Stackable Limit Switches
    • Fail Safe / Secure Compatibility
    • Heavy Duty Chassis with Weatherproof Polyethylene Cover
    • Electronic Reversing Sensor Built Into Control Board
    • Adjustable Timer 0 – 60 Seconds
    • Surge Protection
    • Alarm Reset Button
    • Operating Temperature: -20°C (-4°F) to 70°C (158°F)
    • *10-Year Motor / 8-Year Parts Manufacturer Warranty – Residential : 8-Year Motor / 6-Year Parts Manufacturer Warranty – Commercial

    Access Control

    • Receiver - LiftMaster 850LM
    • 2 - Remote 1-Button Visor Transmitters - LiftMaster 811LM

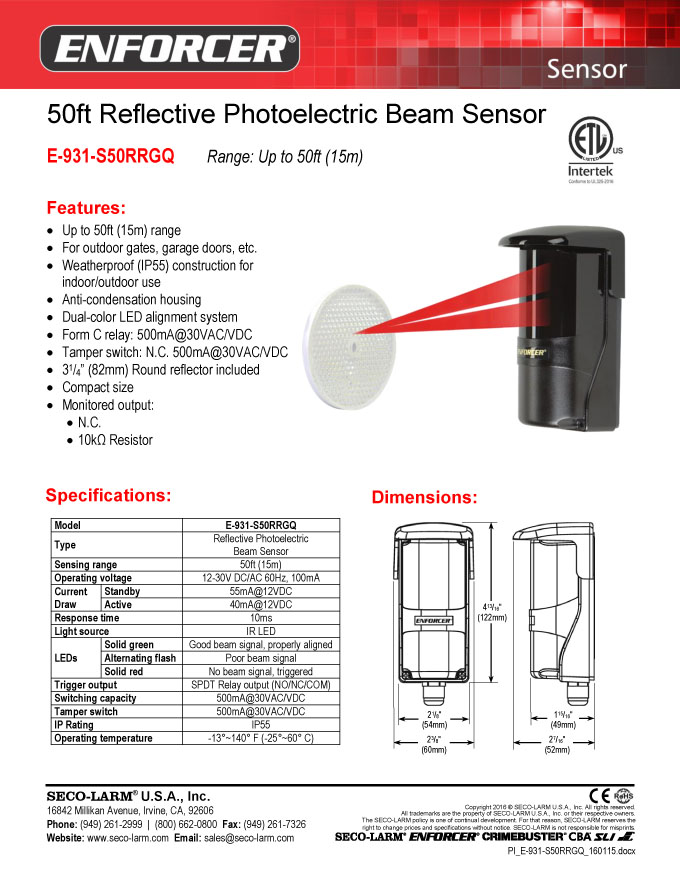

    • Seco-Larm E-931-S50-RRGQ UL325-2016 Reflective Photoelectric Beam Sensor w/ Reflector Hood
      • 50 Ft. Range
      • Weatherproof IP55 Housing
      • Dual-Color LED Alignment System
      • Compact Size
      • ETL UL325-2016 Compliant

      Gate Manufacturing Specifications:
      (Imperial Measurements are approximate - Included for your convenience)

      Frame - Sides & Bottom
      40 x 40 x 2 mm Tube (1-9/16" x 1-9/16" x 1/16")
      Frame - Top Horizontal
      40 x 30 x 2 mm Tube (1-9/16" x 1-3/16" x 1/16")
      2nd Rail - Top & Bottom
      30 x 5 mm Flat Bar (1-3/16" x 3/16")
      Stakes (Pickets)
      20 x 20 x 2 mm (3/4" x 3/4" x 1/16")
    Specifiction
    Brand Duragate
    Manufacturer Part Number KIT-14x6-FS-SL
    Specifications

    Gate Manufacturing Specifications :
    (Imperial Measurements are approximate - Included for your convenience)

    Frame - Sides & Bottom
    40 x 40 x 2 mm Tube (1-9/16" x 1-9/16" x 1/16")
    Frame - Top Horizontal
    40 x 30 x 2 mm Tube (1-9/16" x 1-3/16" x 1/16")
    2nd Rail - Top & Bottom
    30 x 5 mm Flat Bar (1-3/16" x 3/16")
    Stakes (Pickets)
    20 x 20 x 2 mm (3/4" x 3/4" x 1/16")

    Our DuraGate line of Garden Gates and Fencing coordinates flawlessly with our Driveway Gates. Fence Sections and Pedestrian Gates also accept our exclusive line of bolt-ornamental scroll work to create your own custom design.
