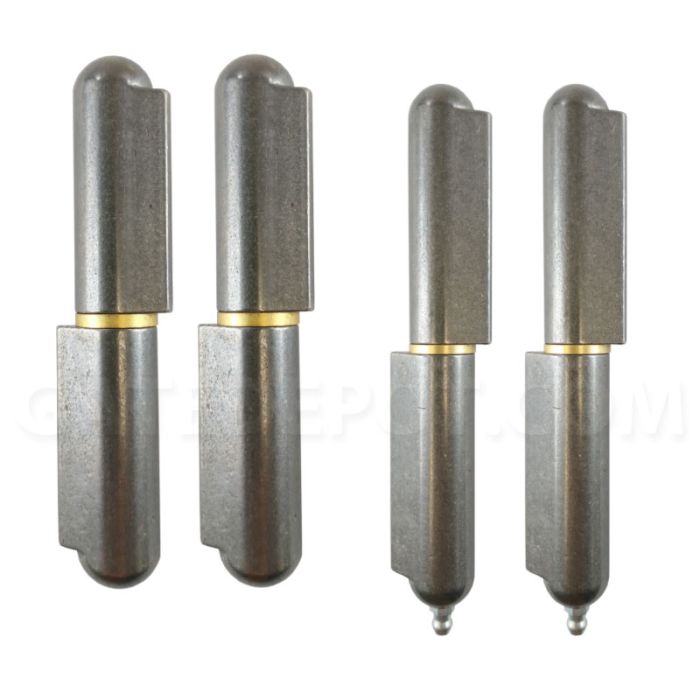

Duragate FES Teardrop Hinges - Steel

Available in 150 lbs. to 1000 lbs. Capacities • Weld-on • Sold as pairs

From $7.90

To $224.90

SKU
DGT-fes-bundle
Customize Duragate FES Teardrop Hinges - Steel
• Pin Diameter: 3/16" • Length: 2" • Diameter: 5/16" • Side: 13/32" • Weight Rating: 150 lbs.
DGT-fes050 FES050
• Pin Diameter: 5/16" • Length: 3-3/16" • Diameter: 1/2" • Side: 5/8" • Weight Rating: 300 lbs.
DGT-fes080 FES080
• Pin Diameter: 13/32" • Length: 4" • Diameter: 5/8" • Side: 3/4" • Weight Rating: 400 lbs.
DGT-fes100 FES100
• Pin Diameter: 1/2" • Length: 6" • Diameter: 3/4" • Side: 1" • Weight Rating: 600 lbs.
DGT-fes150gf FES150GF
• Pin Diameter: 5/8" • Length: 8" • Diameter: 29/32" • Side: 1-1/8" • Weight Rating: 800 lbs.
DGT-fes200gf FES200GF
• Pin Diameter: 3/4" • Length: 10" • Diameter: 1-1/16" • Side: 1-7/16" • Weight Rating: 1000 lbs.
DGT-fes260gf FES260GF

* Required Fields

Your Customization
Duragate Steel Teardrop Hinges
Duragate FES Teardrop Hinges - Steel

In stock

$7.90

Summary

    Product Details

    The two-piece weld on hinge is extremely popular due to its high weight load capacity as well as its professional appearance. It can be painted to match the door and frame, and is ideal for gates, steel doors, screen doors, and trailers. It can be welded on as lift-off or it can be permanently mounted. These weld-on hinges can also be zinc plated for extra protection against the elements.

    Part Number
    Pin Diameter
    L
    D
    S
    Weight Rating
    Hinge Gap

    FES-050
    3/16"
    2"
    5/16"
    15/32"
    150 lbs.
    1/2"
    FES-080
    5/16"
    3-3/16"
    1/2"
    5/8"
    300 lbs.
    3/4"

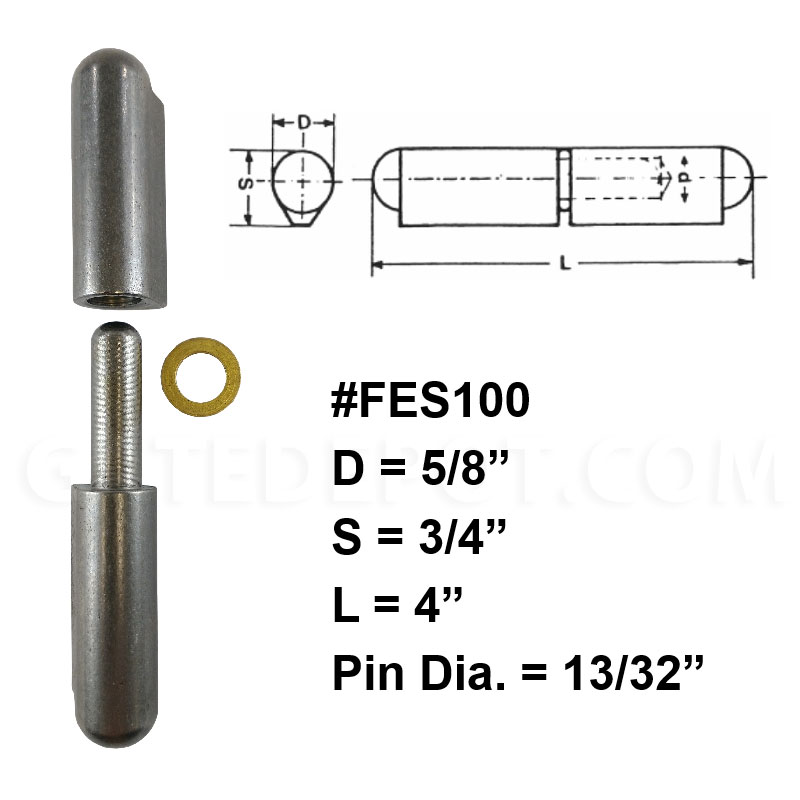

    FES-100
    13/32"
    4"
    5/8"
    3/4"
    400 lbs.
    7/8"

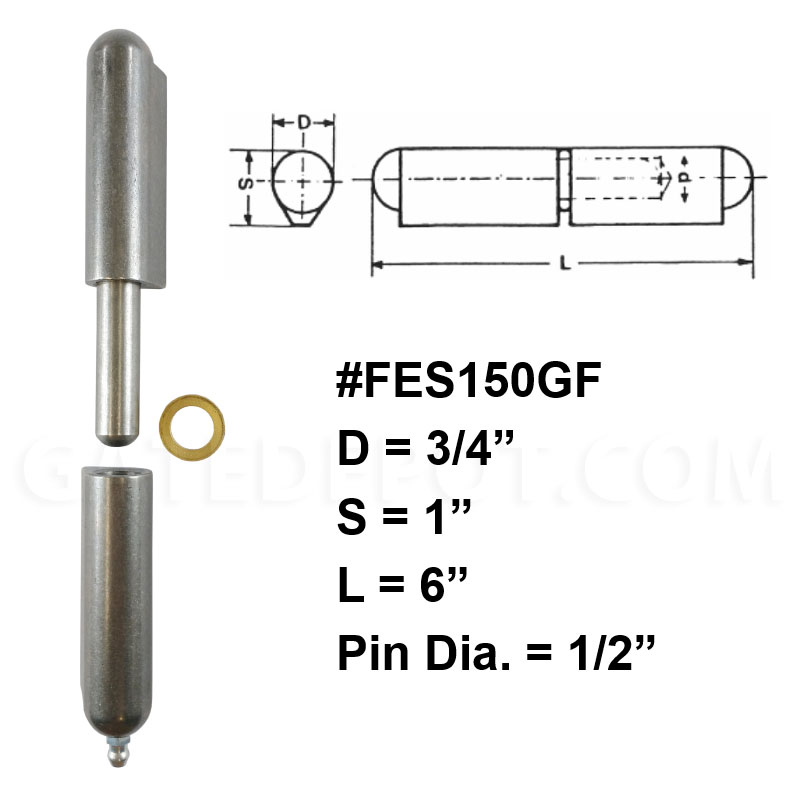

    FES-150GF
    1/2"
    6"
    3/4"
    1"
    600 lbs.
    1-1/4"

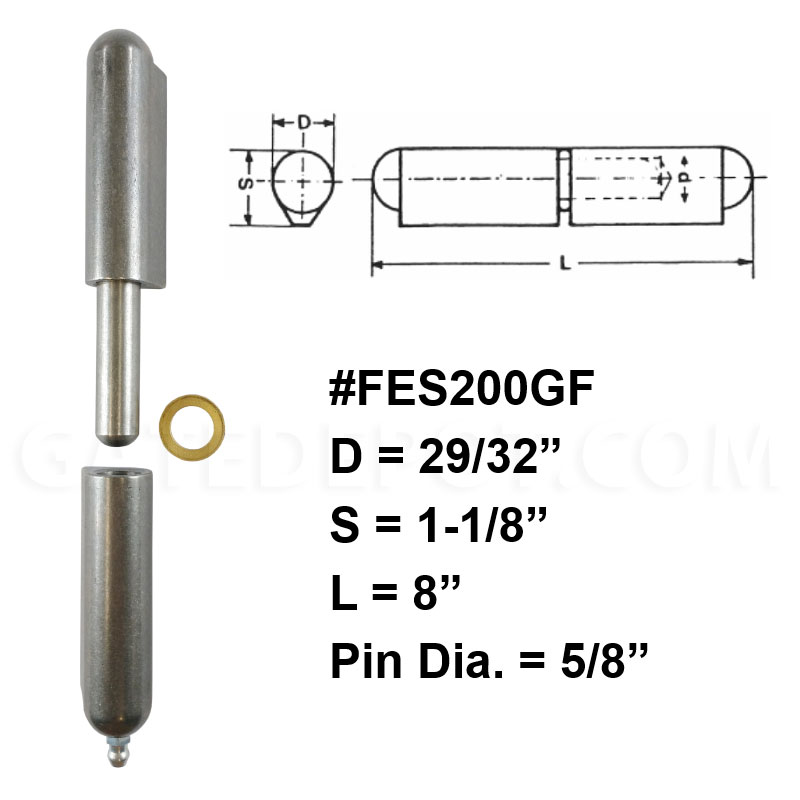

    FES-200GF
    5/8"
    8"
    29/32"
    1-1/8"
    800 lbs.
    1-11/32"

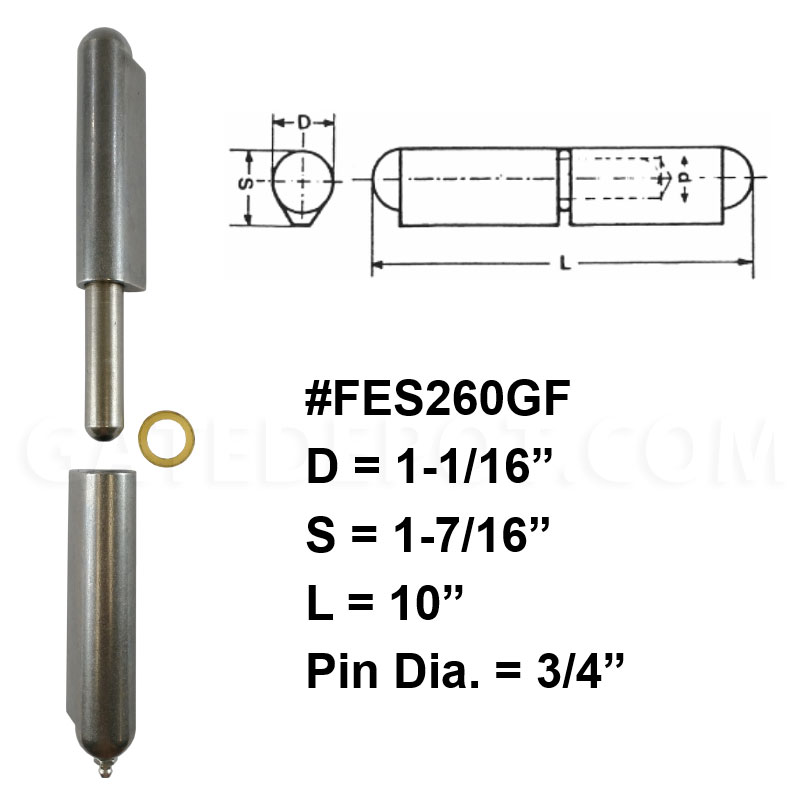

    FES-260GF
    3/4"
    10"
    1-1/16"
    1-7/16"
    1000 lbs.
    1-13/16"

    Specifiction
    Brand Duragate
