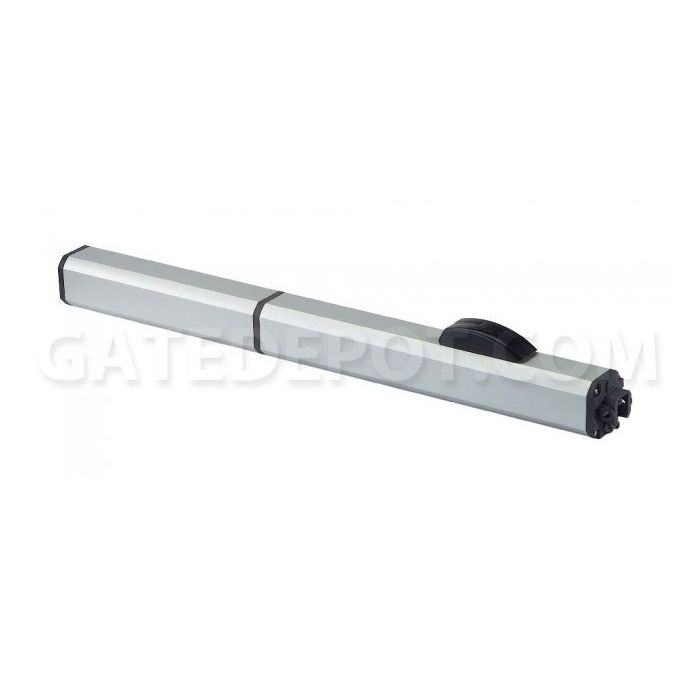

FAAC 400 Hydraulic Linear Arm Swing Operator - 230V / CBAC-EG
Choose Regular or Arctic Oil
• 18' x 1,500 Lbs - 6' Minimum
• 230VAC Power Source / 230VAC Operating Voltage
• 50 Cycles per Hour
• Hydraulic Locking Open &/Or Close
• Extended Geometry
• Includes Receiver, 2 XT4 433RC Transmitters, & Photo Eye
• 3-Year Limited Manufacturer Warranty
• All Products Require a 3-5 Day Lead Time
From $2,373.00
To $9,264.00
SKU
FAC-400-cbaceg-230-bundle
Product Details

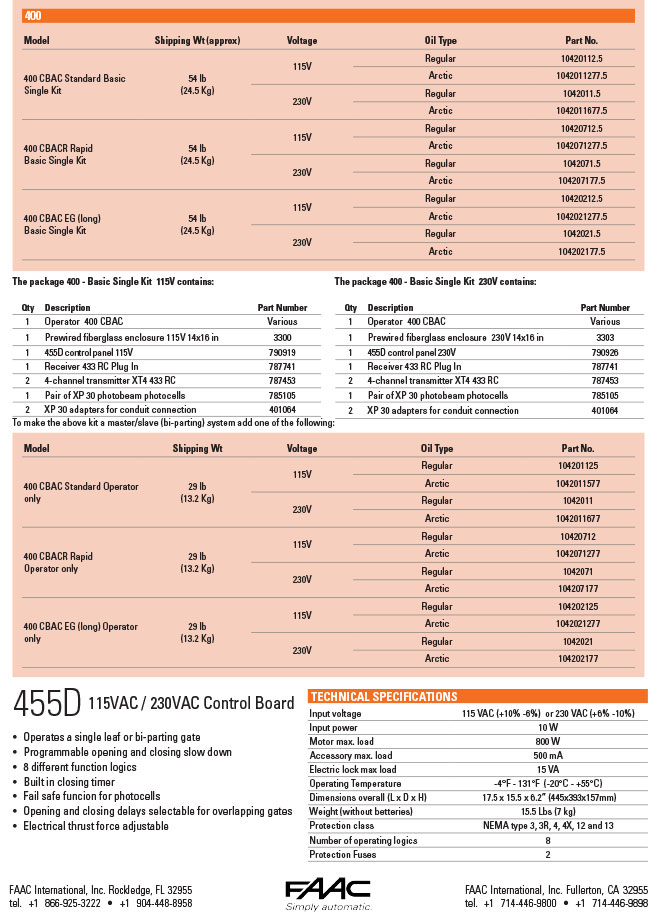

Single Kit Includes:
- 1 Operator 400 CBAC-EG 230V
- 1 Prewired 14" x 16" 230V Fiberglass Enclosure - 3303
- 1 455D 230V Control Panel - 790945
- 1 Receiver 433 RC Plug In - 787741
- 2 4-channel transmitter XT4 433 RC - 787453
-1 Pair of XP 30 photobeam photocells - 785105
• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72°F (20°C). Temperature variation will affect it.
• An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m) • Positive gate stops, which limit gate travel, are required in the opened and closed positions
- 1 Operator 400 CBAC-EG 230V
- 1 Prewired 14" x 16" 230V Fiberglass Enclosure - 3303
- 1 455D 230V Control Panel - 790945
- 1 Receiver 433 RC Plug In - 787741
- 2 4-channel transmitter XT4 433 RC - 787453
-1 Pair of XP 30 photobeam photocells - 785105
- Versatile hydraulic operator for residential and light commercial application
- Hydraulic lock of the gate in opened and/or closed positions
- Key protected manual release
- Quiet operation
- Self lubricating for long life
- Compliant with UL325 for Class I,II,III, and IV applications
• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72°F (20°C). Temperature variation will affect it.
• An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m) • Positive gate stops, which limit gate travel, are required in the opened and closed positions
Brand | FAAC |
---|
Showcased Accessories
- Residential Telephone Entry & Access Control Systems
- Stand-Alone Keypads
- Stand-Alone Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Radio Remotes
- Timers & Relays
- Radio Remote Accessories
- All Products
- Loop Detectors
- Direct Burial / Pave-Over Loops
- Saw-Cut / Cut-In Loops
- Sensor Probes / Wands
- Loop Installation Tools & Supplies
- Through-Beam
- Sensor Devices
- Photo Eye Accessories
- Gate Operator Accessories
-
103====
-
FAAC 2036 Nut - Short Pin / 8 mmFAC-2036 2036• Nut Short Pin 400/402/422 8mm LockSee More Details
• All Products Require a 3-5 Day Lead Time$12.00
103==== -
FAAC 2037 Nut - Long Pin / 8 mmFAC-2037 2037• Nut Long Pin 400/402/422 8mm LockSee More Details
• All Products Require a 3-5 Day Lead Time$12.00
103==== -
FAAC 2069 Jamb Nut - Swivel Hex - 10 mmFAC-2069 2069• Nut 400 Swivel 10mm Jam HexSee More Details
• All Products Require a 3-5 Day Lead Time$14.00
103==== -
FAAC 2151 Screw - Slotted - M6x8 84-A2 / Stainless SteelFAC-2151 2151• Screw for 7290445 (M6x8 84-A2, SS, Standard slotted head)See More Details
• All Products Require a 3-5 Day Lead Time$7.40
103==== -
FAAC 2167.1 Seal KitFAC-2167.1 2167.1• Seal Kit 400See More Details
• All Products Require a 3-5 Day Lead Time$124.00
103==== -
FAAC 2275 Screw - 4 mm x 20 mmFAC-2275 2275• Screw Vent 4mm x 20mm '08 400/402/422See More Details
• All Products Require a 3-5 Day Lead Time$7.40
103==== -
FAAC 2365 Bolt - 4 mm x 50 mmFAC-2365 2365• Bolt Motor Short 400/402/422/750/760 4mm x 50mmSee More Details
• All Products Require a 3-5 Day Lead Time$12.00
103==== -
FAAC 2366 Lockwasher - 4 mmFAC-2366 2366• Washer 400/402/422/750/760 (Lock) 4mmSee More Details
• All Products Require a 3-5 Day Lead Time$8.70
103==== -
FAAC 2367 Nut - 4 mmFAC-2367 2367• Nut 400/402/422/750/760 4mmSee More Details
• All Products Require a 3-5 Day Lead Time$7.40
103==== -
FAAC 2705 Capacitor - 25uf 115VACFAC-2705 2705• Capacitor 115V 25ufSee More Details
• All Products Require a 3-5 Day Lead Time$30.00
103==== -
FAAC 2706 Capacitor - 16uf 220VACFAC-2706 2706• Capacitor 220V 16uf Old style 1/04 & older s/nSee More Details
• All Products Require a 3-5 Day Lead Time$30.00
103==== -
FAAC 2707 Capacitor - 8uf 220VACFAC-2707 2707• Capacitor 220V 8uf New Oper 1/04 s/n & afterSee More Details
• All Products Require a 3-5 Day Lead Time$24.00
103==== -
FAAC 3060 Washer - Front SwivelFAC-3060 3060• Washer 400 Front SwivelSee More Details
• All Products Require a 3-5 Day Lead Time$10.00
103==== -
FAAC 3146.0001 Swivel Joint - M12FAC-3146.0001 3146.0001• M12 Swivel JointSee More Details
• For 400
• All Products Require a 3-5 Day Lead Time$48.00
103==== -
FAAC 3204425 Pump Lobe - 1.0 Liter / Die CastFAC-3204425 3204425• Pump Lobe 1.0 Lt 400/402/422 Die CastSee More Details
• All Products Require a 3-5 Day Lead Time$243.00
103==== -
FAAC 3204445 Pump Lobe - 1.5 Liter / Die CastFAC-3204445 3204445• Pump Lobe 1.5 Lt. 400/620/640 Die CastSee More Details
• All Products Require a 3-5 Day Lead Time$216.00
103==== -
FAAC 3303 Fiber Reinforced Enclosure - 230VFAC-3303 3303• Wired 230VSee More Details
• Hinged Lockable
• Rubberized Gasket Seal
• Weather Resistant
• Two Pre-Drilled Holes in Bottom
• All Products Require a 3-5 Day Lead Time$520.00
103==== -
FAAC 3900975 SkinpackFAC-3900975 3900975• Skinpack 400 EG Single New Manual Release '06See More Details
• All Products Require a 3-5 Day Lead Time$180.00
103==== -
FAAC 3900985 SkinpackFAC-3900985 3900985• Skinpack 400 (single) New Manual Release '06See More Details
• All Products Require a 3-5 Day Lead Time$170.00
103==== -
FAAC 417010 HarnessFAC-417010 417010• Harness '08 (motor to electric cord)See More Details
• All Products Require a 3-5 Day Lead Time$35.00
103==== -
FAAC 4180195 Manual ReleaseFAC-4180195 4180195• Manual Release 400/422See More Details
• All Products Require a 3-5 Day Lead Time$37.00
103==== -
FAAC 4180285 PistonFAC-4180285 4180285• Piston Shuttle '97See More Details
• All Products Require a 3-5 Day Lead Time$30.00
103==== -
FAAC 4180415 Bypass Cap w/ Spring & SeatFAC-4180415 4180415• Bypass Cap w/ spring & seat 400/422 '06See More Details
• All Products Require a 3-5 Day Lead Time$30.00
103==== -
FAAC 4185045 Locking CapFAC-4185045 4185045• Locking CapSee More Details
• All Products Require a 3-5 Day Lead Time$66.00
103==== -
FAAC 4185045.5 Cap Kit - Locking w/ Manual Release KitFAC-4185045.5 4185045.5• Locking Cap Kit w/ Manual Release Kit 400/422 '06 (#17 )See More Details
• All Products Require a 3-5 Day Lead Time$86.00
103==== -
FAAC 4284065 Cable - Molded / Female KitFAC-4284065 4284065• Molded Cable Female KitSee More Details
• For 400 / 402 / 412 / 415 / 422
• All Products Require a 3-5 Day Lead Time$109.00
103==== -
FAAC 4350105 Piston Assembly / RivetedFAC-4350105 4350105• Piston Assembly 400 RivetedSee More Details
• All Products Require a 3-5 Day Lead Time$148.00
103==== -
FAAC 4350115 Piston Assembly / RivetedFAC-4350115 4350115• Piston Assembly 400 EG RivetedSee More Details
• All Products Require a 3-5 Day Lead Time$153.00
103==== -
FAAC 4404065 Inlet ValveFAC-4404065 4404065• Inlet Valve All OperatorsSee More Details
• All Products Require a 3-5 Day Lead Time$12.00
103==== -
FAAC 4404085 Lock ValveFAC-4404085 4404085• Lock Valve Bi-Metal All Hydraulic OperatorsSee More Details
• All Products Require a 3-5 Day Lead Time$20.00
103==== -
FAAC 4404095 Inlet ValveFAC-4404095 4404095• Inlet Valve 400/422 '06See More Details
• All Products Require a 3-5 Day Lead Time$29.00
103==== -
FAAC 490043 Positive StopFAC-490043 490043• Positive Stop 84-400 EG 4 Rod ConcealedSee More Details
• All Products Require a 3-5 Day Lead Time$233.00
103==== -
FAAC 4900645 Fork Kit - RearFAC-4900645 4900645• Rear Fork KitSee More Details
• For 400 / 402 / 422
• All Products Require a 3-5 Day Lead Time$104.00
103==== -
FAAC 490326 Manual Release KitFAC-490326 490326• Manual Release Kit 400 New lock cap '06 (#17)See More Details
• All Products Require a 3-5 Day Lead Time$55.00
103==== -
FAAC 490327 Manual Release ExtensionFAC-490327 490327• Manual Release Extension & Bypass Adj 400/422 '06See More Details
• All Products Require a 3-5 Day Lead Time$40.00
103==== -
FAAC 4994625 Flange - FrontFAC-4994625 4994625• Flange Front 400 use w/ FAAC StopsSee More Details
• All Products Require a 3-5 Day Lead Time$120.00
103==== -
FAAC 4994655 Valve BodyFAC-4994655 4994655• Valve Body 400 '06 w/ new Inlet ValveSee More Details
• All Products Require a 3-5 Day Lead Time$262.00
103==== -
FAAC 63000148 O-Ring - 2.62 x 39.34 mm / 5-PackFAC-63000148 63000148• O-ring - 2.62x39.34mm / 5-PackSee More Details
• For 400 / 422
• All Products Require a 3-5 Day Lead Time$19.00
103==== -
FAAC 63000315 Seal - Internal Front FlangeFAC-63000315 63000315• Internal Front Flange Seal 400 CBAC / S450H CBACSee More Details
• All Products Require a 3-5 Day Lead Time$16.00
103==== -
FAAC 63000577 Spring - Washer Cup / 30-PackFAC-63000577 63000577• Spring - Washer Cup / 30-PackSee More Details
• For 400 / 402 / 422 / 750 / S450H / S800H
• All Products Require a 3-5 Day Lead Time$2.40
103==== -
FAAC 63001005 Electric CordFAC-63001005 63001005• Electrical Cord Plug in w/ screwsSee More Details
• All Products Require a 3-5 Day Lead Time$107.00
103==== -
FAAC 63003303 Vibration Dampener - 20-PackFAC-63003303 63003303• Vibration Dampener - 20-PackSee More Details
• For 400 / 402 / 422 / 760
• All Products Require a 3-5 Day Lead Time$73.00
103==== -
FAAC 63003327 Retract Tube & Tie Rods - EGFAC-63003327 63003327• Retract Tube & Tie Rods - EGSee More Details
• For 400
• All Products Require a 3-5 Day Lead Time$96.00
103==== -
FAAC 63003328 Retract Tube & Tie RodsFAC-63003328 63003328• Retract Tube & Tie RodsSee More Details
• For 400
• All Products Require a 3-5 Day Lead Time$54.00
103==== -
FAAC 63003329 Protective Cover GroupFAC-63003329 63003329• Protective Cover Group - EGSee More Details
• For 400 EG
• All Products Require a 3-5 Day Lead Time$134.00
103==== -
FAAC 63003331 Protective CoverFAC-63003331 63003331• Protective CoverSee More Details
• For 400
• All Products Require a 3-5 Day Lead Time$123.00
103==== -
FAAC 7019195 Cover - Tie RodFAC-7019195 7019195• Tierod 400/87 Protective CoverSee More Details
• All Products Require a 3-5 Day Lead Time$18.00
103==== -
FAAC 7019225 Cover - Tie RodFAC-7019225 7019225• Tierod 400/87 EG Protective CoverSee More Details
• All Products Require a 3-5 Day Lead Time$20.00
103==== -
FAAC 7049005 Nut - BrassFAC-7049005 7049005• Nut Brass for Retaining ValveSee More Details
• All Products Require a 3-5 Day Lead Time$18.00
103==== -
FAAC 7049135 Nut - Retaining RingFAC-7049135 7049135• Valox Valve Retaining Ring NutSee More Details
• All Products Require a 3-5 Day Lead Time$16.00
103==== -
FAAC 7073095 Swivel JointFAC-7073095 7073095• Swivel Joint Square 4 Rod Positive stop w/ nut & washerSee More Details
• All Products Require a 3-5 Day Lead Time$94.00
103==== -
FAAC 7073-95.1 Swivel Joint - Square / M12FAC-7073095.1 7073095.1• Swivel Joint - Square / M12See More Details$114.00
103====
-
FAAC 7090010015 O-RingFAC-7090010015 7090010015• O-ring Pump to Valve Body 400/402/422/750/760 4.48 x 1.78See More Details
• All Products Require a 3-5 Day Lead Time$7.00
103==== -
FAAC 7090080025 O-Ring - 11.91 x 2.62 mm / 10-PackFAC-7090080025 7090080025• O-Ring - 11.91 x 2.62 mm / 10-PackSee More Details
• For 400 / 402 / 412 / 415 / 422
• All Products Require a 3-5 Day Lead Time$20.00
103==== -
FAAC 7090280015 O-Ring - 5.28 x 1.78FAC-7090280015 7090280015• O-ring Retract Tube (Short 422 & Old 400) '94 5.28 x 1.78See More Details
• All Products Require a 3-5 Day Lead Time$9.20
103==== -
FAAC 7090290015 O-RingFAC-7090290015 7090290015• O-ring (Lock Cylinder)See More Details
• All Products Require a 3-5 Day Lead Time$7.00
103==== -
FAAC 7090300015 O-Ring - 7.66 x 1.78 mm / 20-PackFAC-7090300015 7090300015• O-Ring - 7.66 x 1.78 mm / 20-PackSee More Details
• For 400 / 402 / 422 / 750 / 760 / S450H
• All Products Require a 3-5 Day Lead Time$7.00
103==== -
FAAC 7090360025 O-Ring - 40.95 x 2.62FAC-7090360025 7090360025• O-ring Valve Body/Cylinder 40.95 x 2.62See More Details
• All Products Require a 3-5 Day Lead Time$8.70
103==== -
FAAC 7090815 O-RingFAC-7090815 7090815• O-ring 400 Retract Tube 5/'06 changeSee More Details
• All Products Require a 3-5 Day Lead Time$10.00
103==== -
FAAC 7090845 O-RingFAC-7090845 7090845• O-ring 400/422 '06 Bypass Adj/ Manual Release Ext.See More Details
• All Products Require a 3-5 Day Lead Time$10.00
103==== -
FAAC 7090855 O-RingFAC-7090855 7090855• O-ring for 400/422 Locking Cap '06See More Details
• All Products Require a 3-5 Day Lead Time$7.00
103==== -
FAAC 7090865 O-RingFAC-7090865 7090865• O-ring 400/422 '06 Manual Release bypass supportSee More Details
• All Products Require a 3-5 Day Lead Time$7.00
103==== -
FAAC 7090895 O-Ring - 21 x 2 mmFAC-7090895 7090895• O-Ring 21x2 mmSee More Details
• All Products Require a 3-5 Day Lead Time$9.80
103==== -
FAAC 7090905 O-RingFAC-7090905 7090905• O-ring Harness '08 (motor to electric cord)See More Details
• All Products Require a 3-5 Day Lead Time$6.20
103==== -
FAAC 7091015 Seal - Piston RodFAC-7091015 7091015• Piston Rod Packing 400See More Details
• All Products Require a 3-5 Day Lead Time$14.00
103==== -
FAAC 7094065 WasherFAC-7094065 7094065• Washer Copper Alum FS 400/402/422See More Details
• All Products Require a 3-5 Day Lead Time$7.00
103==== -
FAAC 7094505 Piston Guide RingFAC-7094505 7094505• Piston Guide RingSee More Details
• For 400
• All Products Require a 3-5 Day Lead Time$70.00
103==== -
FAAC 70991015 GasketFAC-70991015 70991015• Gasket D80 400/402/422See More Details
• All Products Require a 3-5 Day Lead Time$18.00
103==== -
FAAC 7109135 Cable SupportFAC-7109135 7109135• Cable Support Anti-kink (Plastic) 3/09 4284065 replacing when this is goneSee More Details
• All Products Require a 3-5 Day Lead Time$7.30
103==== -
FAAC 7110015 PlugFAC-7110015 7110015• Plug Oil 400/402/422 for Rear FlangeSee More Details
• All Products Require a 3-5 Day Lead Time$11.00
103==== -
FAAC 7119405 PlugFAC-7119405 7119405• Plug for End Cap 400 Protective CoverSee More Details
• All Products Require a 3-5 Day Lead Time$7.40
103==== -
FAAC 7119475 Vibration DamperFAC-7119475 7119475• Vibration Damper Hydr Swing motorsSee More Details
• All Products Require a 3-5 Day Lead Time$14.00
103==== -
FAAC 7119485 Vibration DamperFAC-7119485 7119485• Vibration Damper 400 402/422/750/760See More Details
• All Products Require a 3-5 Day Lead Time$14.00
103==== -

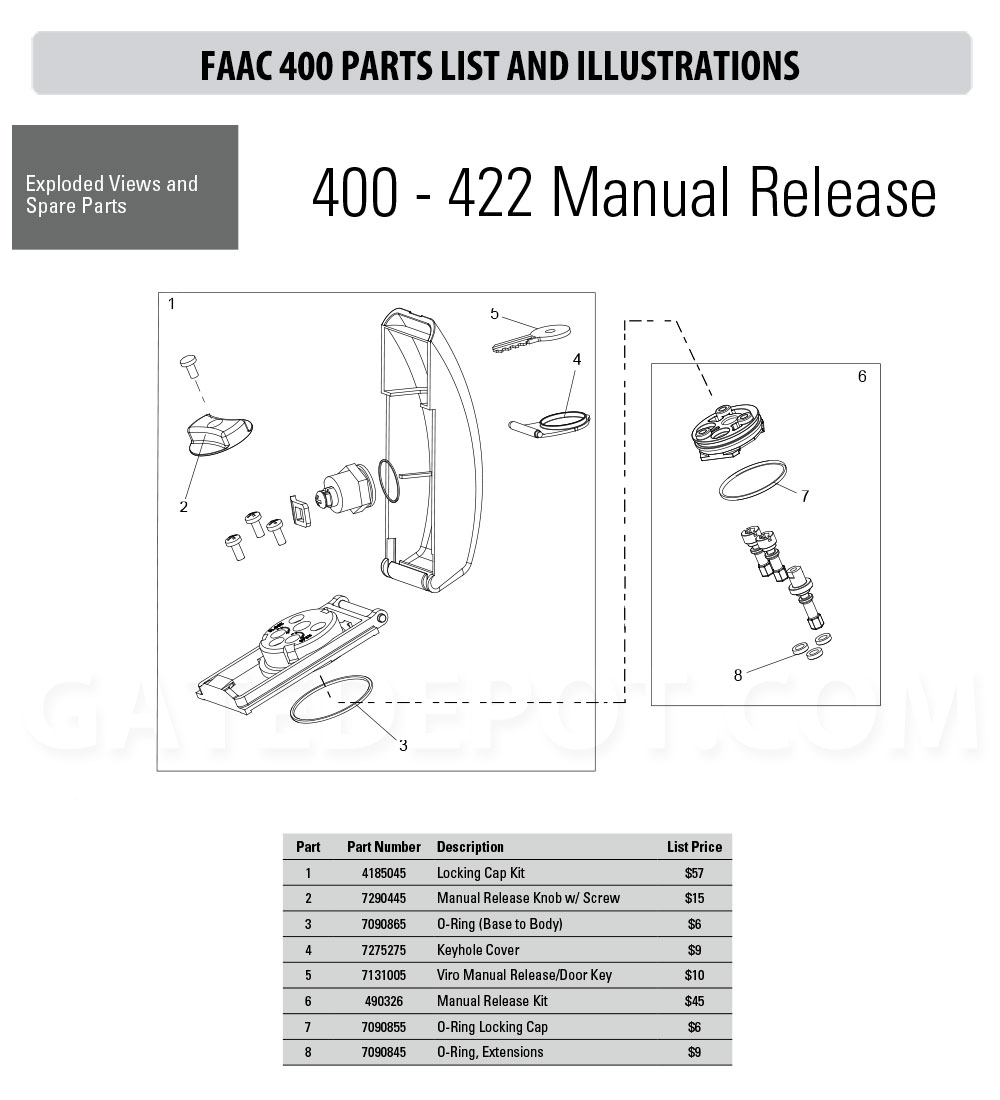

FAAC 7131005 Manual Release KeyFAC-7131005 7131005• Key Manual Release 400/415/422/620/640/844/746/740See More Details
• All Products Require a 3-5 Day Lead Time$18.00
103==== -
FAAC 714019 Oil - 1 QuartFAC-714019 714019• Oil 1 QuartSee More Details
• All Products Require a 3-5 Day Lead Time$31.00
103==== -
FAAC 714042 Arctic Oil - 1 QuartFAC-714042 714042• Arctic Oil 1 QuartSee More Details
• All Products Require a 3-5 Day Lead Time$93.00
103==== -
FAAC 7161825 Operator BodyFAC-7161825 7161825• Operator Body 400 Std '06 New Manual ReleaseSee More Details
• All Products Require a 3-5 Day Lead Time$140.00
103==== -
FAAC 7161835 Operator BodyFAC-7161835 7161835• Operator Body 400 EG '06 New Manual ReleaseSee More Details
• All Products Require a 3-5 Day Lead Time$163.00
103==== -

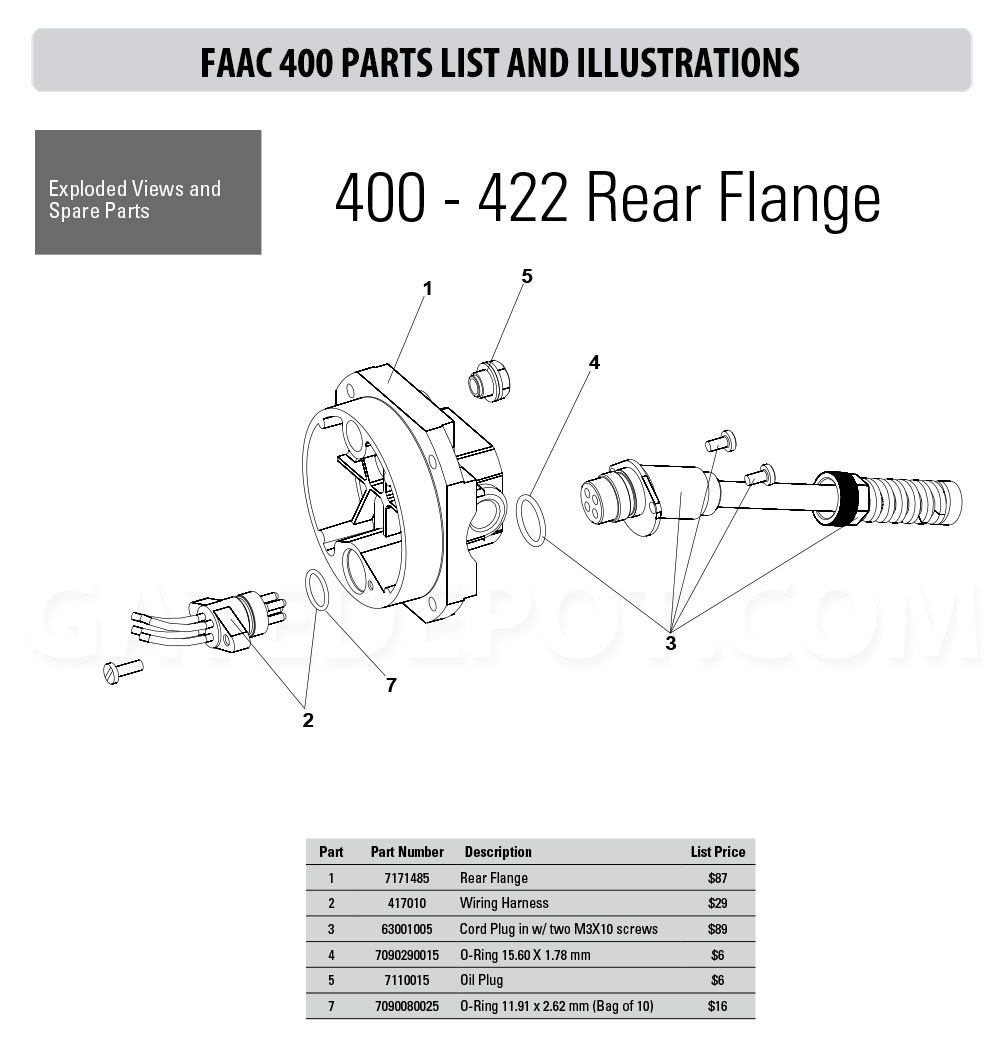

FAAC 7171485 Flange - RearFAC-7171485 7171485• Flange Rear 400/402/422 '08 UL Plug in Cord (Needs 7110015)See More Details
• All Products Require a 3-5 Day Lead Time$105.00
103==== -
FAAC 7182075 Short PinFAC-7182075 7182075• Short PinSee More Details
• All Products Require a 3-5 Day Lead Time$26.00
103==== -
FAAC 7182075.1 Short Pin w/ NutFAC-7182075.1 7182075.1• Pin Short with Nut 400/402/415/422See More Details
• All Products Require a 3-5 Day Lead Time$30.00
103==== -
FAAC 7182175 Long PinFAC-7182175 7182175• Long PinSee More Details
• All Products Require a 3-5 Day Lead Time$30.00
103==== -
FAAC 7182175.1 Long Pin w/ NutFAC-7182175.1 7182175.1• Pin Long Flange with Nut 400/402/422See More Details
• All Products Require a 3-5 Day Lead Time$29.00
103==== -
FAAC 7220355 Bracket - Front w/ Bolt & NutFAC-7220355 7220355• Bracket Front w/ Bolt & Nut 400See More Details
• All Products Require a 3-5 Day Lead Time$48.00
103==== -
FAAC 7220365 Bracket - FrontFAC-7220365 7220365• Bracket Front 400 EGSee More Details
• All Products Require a 3-5 Day Lead Time$52.00
103==== -
FAAC 722471 Mounting FrameFAC-722471 722471• Mounting Frame 390See More Details
• All Products Require a 3-5 Day Lead Time$105.00
103==== -
FAAC 7228015 Rear Fork - Die CastFAC-7228015 7228015• Fork Rear Die Cast 400/402/422/415See More Details
• All Products Require a 3-5 Day Lead Time$60.00
103==== -
FAAC 7228015.1 Rear Fork Package - Die CastFAC-7228015.1 7228015.1• Fork Package Rear Die Cast 400/402/422See More Details
• All Products Require a 3-5 Day Lead Time$111.00
103==== -
FAAC 7230295 Tie Rod - CylinderFAC-7230295 7230295• Tierod Cylinder 400See More Details
• All Products Require a 3-5 Day Lead Time$20.00
103==== -
FAAC 7230305 Tie Rod - Cylinder / EGFAC-7230305 7230305• Tierod Cylinder 400 EGSee More Details
• All Products Require a 3-5 Day Lead Time$24.00
103==== -
FAAC 7272105 CoverFAC-7272105 7272105• Protective Cover 400See More Details
• All Products Require a 3-5 Day Lead Time$75.00
103==== -
FAAC 7272115 CoverFAC-7272115 7272115• Protective Cover 400 EGSee More Details
• All Products Require a 3-5 Day Lead Time$88.00
103==== -
FAAC 7275275 Key - Manual Release CoverFAC-7275275 7275275• Cover Key 400/422 '06 New Manual ReleaseSee More Details
• All Products Require a 3-5 Day Lead Time$16.00
103==== -
FAAC 72840065 Bracket - Rear Mounting w/ PlateFAC-72840065 72840065• Rear Mounting Bracket & Plate for 415See More Details
• All Products Require a 3-5 Day Lead Time$91.00
103==== -
FAAC 7290445 Knob - Manual Release w/ ScrewFAC-7290445 7290445• Manual Release Knob w/ screw 400/422 '06See More Details
• All Products Require a 3-5 Day Lead Time$21.00
103==== -
FAAC 7361335 Retract TubeFAC-7361335 7361335• Retract Tube Aluminum 400See More Details
• All Products Require a 3-5 Day Lead Time$34.00
103==== -

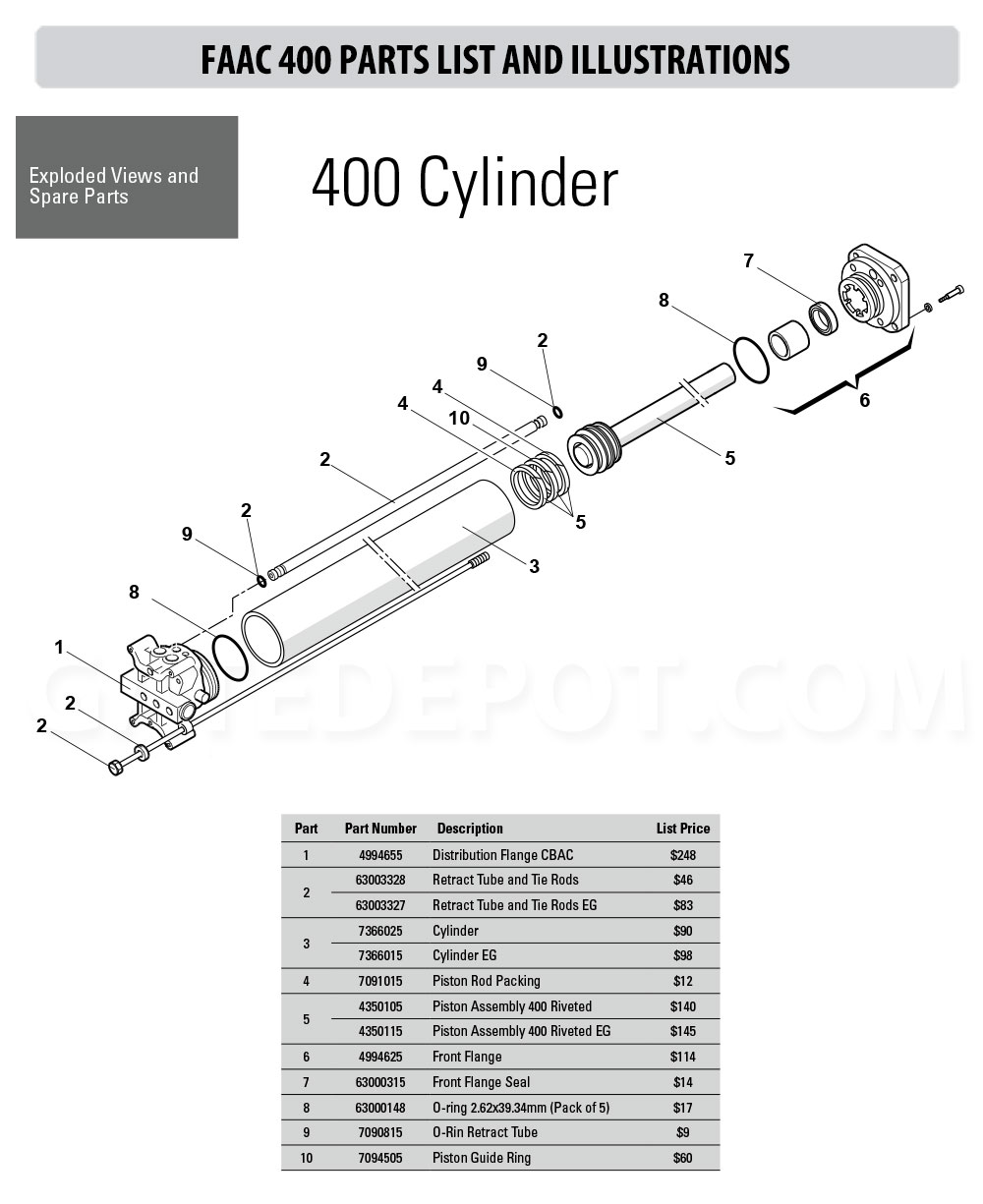

FAAC 7366015 Cylinder - Piston / LongFAC-7366015 7366015• Cylinder Piston Long 400See More Details
• All Products Require a 3-5 Day Lead Time$104.00
103==== -
FAAC 7366025 Cylinder - Piston / StandardFAC-7366025 7366025• Cylinder Piston Standard 400See More Details
• All Products Require a 3-5 Day Lead Time$109.00
103==== -
FAAC 77000425 Motor - 115VACFAC-77000425 77000425• Motor 115V 1400 RPM 400/402/422/750/620/640See More Details
• All Products Require a 3-5 Day Lead Time$257.00
103==== -
FAAC 7700205 Motor - 220VACFAC-7700205 7700205• Motor 220V 1400 RPM 8uf 400/402/422/750/760/620See More Details
• All Products Require a 3-5 Day Lead Time$257.00
103==== -
FAAC RP1 433RC 787856 Plug-In Receiver - 1 ChannelFAC-787856 787856• 1 ChannelSee More Details
• 24VDC
• Rolling code technology
• All Products Require a 3-5 Day Lead Time$72.00
103==== -
FAAC 790919 Control BoardFAC-790919 790919• 115V - Pre UL Version 7See More Details
• 455D Control Panel
• Cabinet NOT Included
• All Products Require a 3-5 Day Lead Time$611.00
103==== -
FAAC 79026 Control BoardFAC-790926 790926• 230V - Pre UL Version 7See More Details
• Cabinet NOT Included
• All Products Require a 3-5 Day Lead Time$611.00
Write Your Own Review
