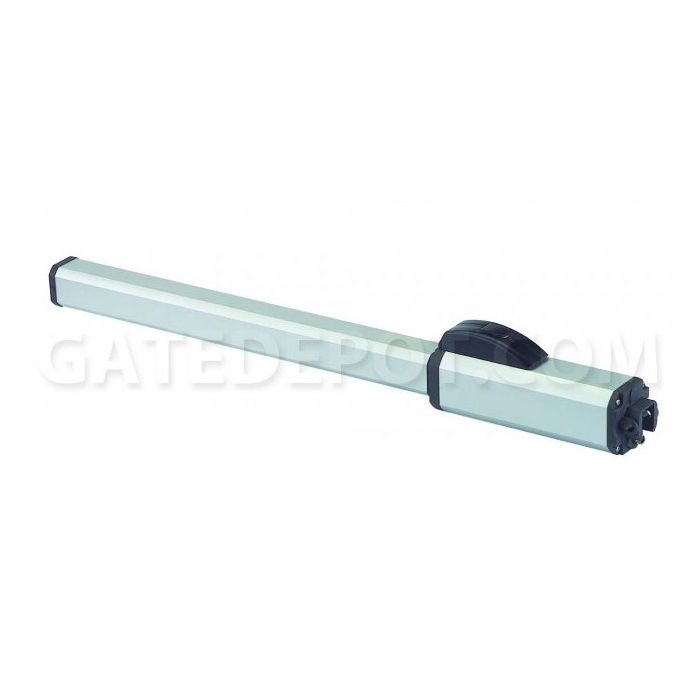

FAAC 422 Hydraulic Linear Arm Operator - CBAC / 115V
Choose Regular or Arctic Oil
• 10' x 900 Lbs - 7-1/2' Minimum
• 115VAC Power Source / 115VAC Operating Voltage
• 55 Cycles per Hour
• Hydraulic Locking Open &/Or Close
• Includes Receiver, 2 XT4 433RC Transmitters, & Photo Eye
• 3-Year Limited Manufacturer Warranty
• All Products Require a 3-5 Day Lead Time
From $2,483.00
To $8,461.00
SKU
FAC-422-115-bundle
Product Details
Single Kit Includes:
- 1 Operator 422 CBC 115V
- 1 Prewired 14" x 16" Fiberglass Enclosure - 3300
- 1 455D 115V Control Panel - 790944
- 1 Receiver 433 RC Plug In - 787741
- 2 4-channel transmitter XT4 433 RC - 787453
-1 Pair of XP 30 photobeam photocells - 785105
• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72°F (20°C). Temperature variation will affect it.
• The 422 CBAC (locked in closed and opened position) can be converted to SB (no locks). Call for more information.
• Positive gate stops, which limit gate travel, are required in the opened and closed positions
- 1 Operator 422 CBC 115V
- 1 Prewired 14" x 16" Fiberglass Enclosure - 3300
- 1 455D 115V Control Panel - 790944
- 1 Receiver 433 RC Plug In - 787741
- 2 4-channel transmitter XT4 433 RC - 787453
-1 Pair of XP 30 photobeam photocells - 785105

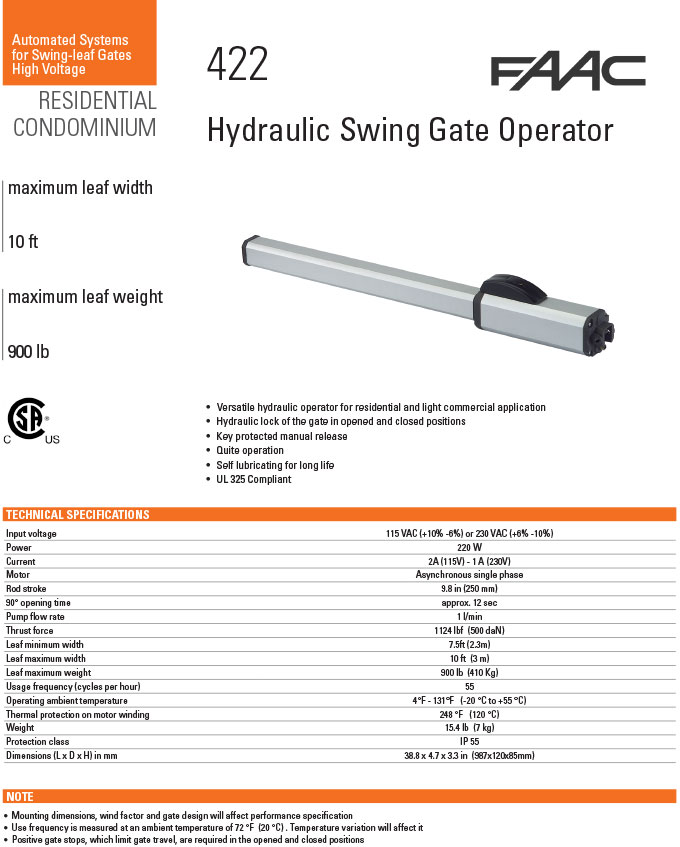

- Versatile hydraulic operator for residential and light commercial application
- Hydraulic lock of the gate in opened and closed positions
- Key protected manual release
- Quiet operation
- Self lubricating for long life
- UL 325 Compliant
• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72°F (20°C). Temperature variation will affect it.
• The 422 CBAC (locked in closed and opened position) can be converted to SB (no locks). Call for more information.
• Positive gate stops, which limit gate travel, are required in the opened and closed positions
Brand | FAAC |
---|
