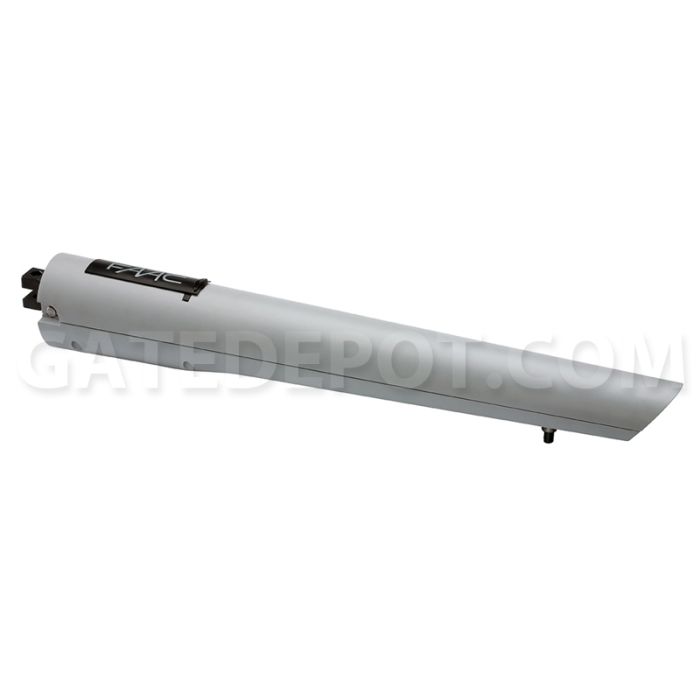

FAAC S418 Electromechanical Linear Arm Operator
• 10' x 720 Lbs / 16' x 280 Lbs
• 24VDC Solar Source / 24VDC Operating Voltage
• Opens ~ 3/4" per Second
• Continuous Duty
• 24VDC Battery Backup System w/ 2 8-Ah Batteries
• Includes Receiver, 2 XT4 433RC Transmitters, & Photo Eye
• 3-Year Limited Manufacturer Warranty
• All Products Require a 3-5 Day Lead Time
From $1,375.00
To $4,147.00
SKU
FAC-s418-bundle
Product Details

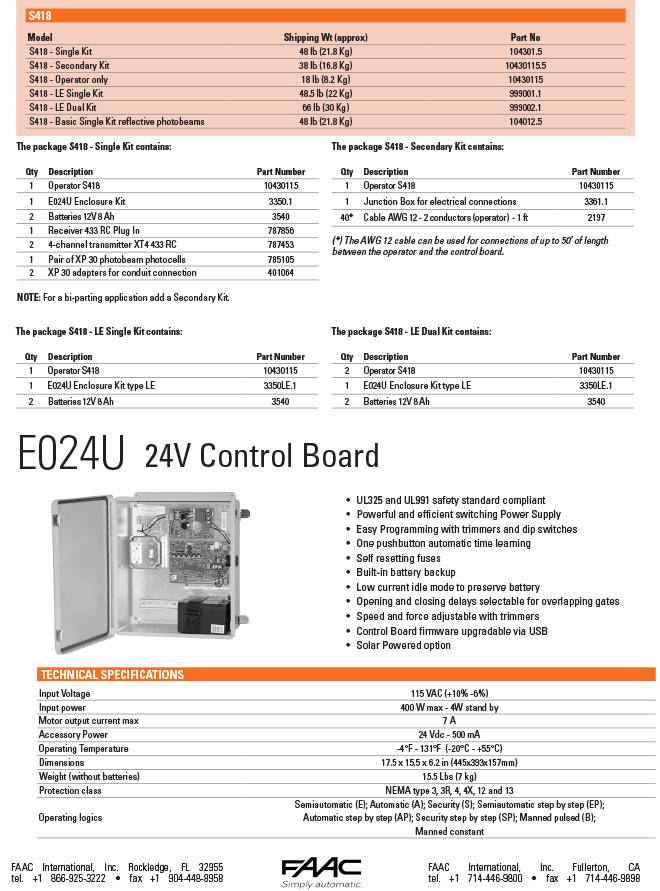

Single Kit Includes:
- 1 Operator S418 - 10430115
- 1 E024U Enclosure Kit - 3350.1
- 2 Batteries 12V 8 Ah - 3540
- 1 Receiver 433 RC Plug In - 787741
- 2 4-channel transmitter XT4 433 RC - 787453
- 1 Pair of XP 30 photobeam photocells - 785105
- 2 XP 30 adapters for conduit connection - 401064
104012.5 Single Kit includes IRB-RET retroreflective photocells in place of XP 30 photobeams
Secondary Kit Includes:
- 1 Operator S418 - 104012.5
- 1 Junction Box for electrical connections - 3361.1
- 1 Cable AWG 12 - 2 conductors (operator) 40 ft
Suitable Gate Dimensions:
10' x 720 lbs
12' x 500 lbs
14' x 370 lbs
16' x 280 lbs

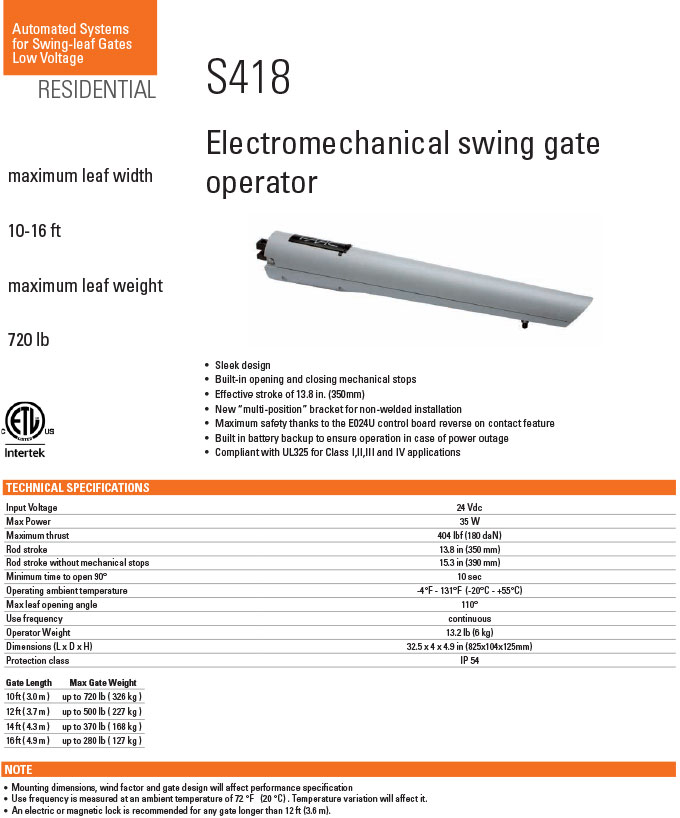

Sleek design
Opening and closing mechanical stops built in
Effective stroke of 13.8" (350mm)
New "multi-position" bracket for non-welded installation
Maximum safety thanks to the E024U control board reverse on contact feature
Built in battery backup to ensure operation in case of power outage
Compliant with UL325 for Class I,II,III and IV applications
Note:
• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72 °F (20 °C) . Temperature variation will affect it.
• An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
| Brand | FAAC |
|---|
Showcased Accessories
-
EMX 2101 CS101 Carsense 101 Probe Vehicle Motion Detector - Detector & Probe
From $135.00
To $807.00
- Residential Telephone Entry & Access Control Systems
- Stand-Alone Keypads
- Stand-Alone Card Readers / Keypads / Intercoms
- Expansion & Add-On Components
- Radio Remotes
- Radio Remote Accessories
- All Products
- Loop Detectors
- Direct Burial / Pave-Over Loops
- Saw-Cut / Cut-In Loops
- Sensor Probes / Wands
- Loop Installation Tools & Supplies
- Through-Beam
- Sensor Devices
- Loop Detector & Loop Accessories
- Photo Eye Accessories
- Gate Operator Accessories
Product Manuals
Product Brochures
Additional Resources
-
26====
-
FAAC 202025 Control BoardFAC-202025 202025• E024U 24VDC Replacement Control PanelSee More Details
• All Products Require a 3-5 Day Lead Time$474.00
26==== -
FAAC 3350 Fiberglass EnclosureFAC-3350 3350• 14' x 16' Fiberglass EnclosureSee More Details
• Pre-drilled Backplate
• On/Off Switch
• Auxiliary Outlet
• All Products Require a 3-5 Day Lead Time$510.00
26==== -
FAAC 3350.1 E024U Enclosure KitFAC-3350.1 3350.1• 14' x 16' Fiberglass EnclosureSee More Details
• Includes Backplate, E024U Board, Power Supply, Battery Cable
• All Products Require a 3-5 Day Lead Time$977.00
26==== -
FAAC 60202215 Gear - MotorFAC-60202215 60202215• Gear for Motor 409/411/413/415 24Vdc/115VSee More Details
• All Products Require a 3-5 Day Lead Time$121.00
26==== -
FAAC 60202225 Gear - PistonFAC-60202225 60202225• Gear for Piston 409/411/413/415 24V/115VSee More Details
• All Products Require a 3-5 Day Lead Time$97.00
26==== -

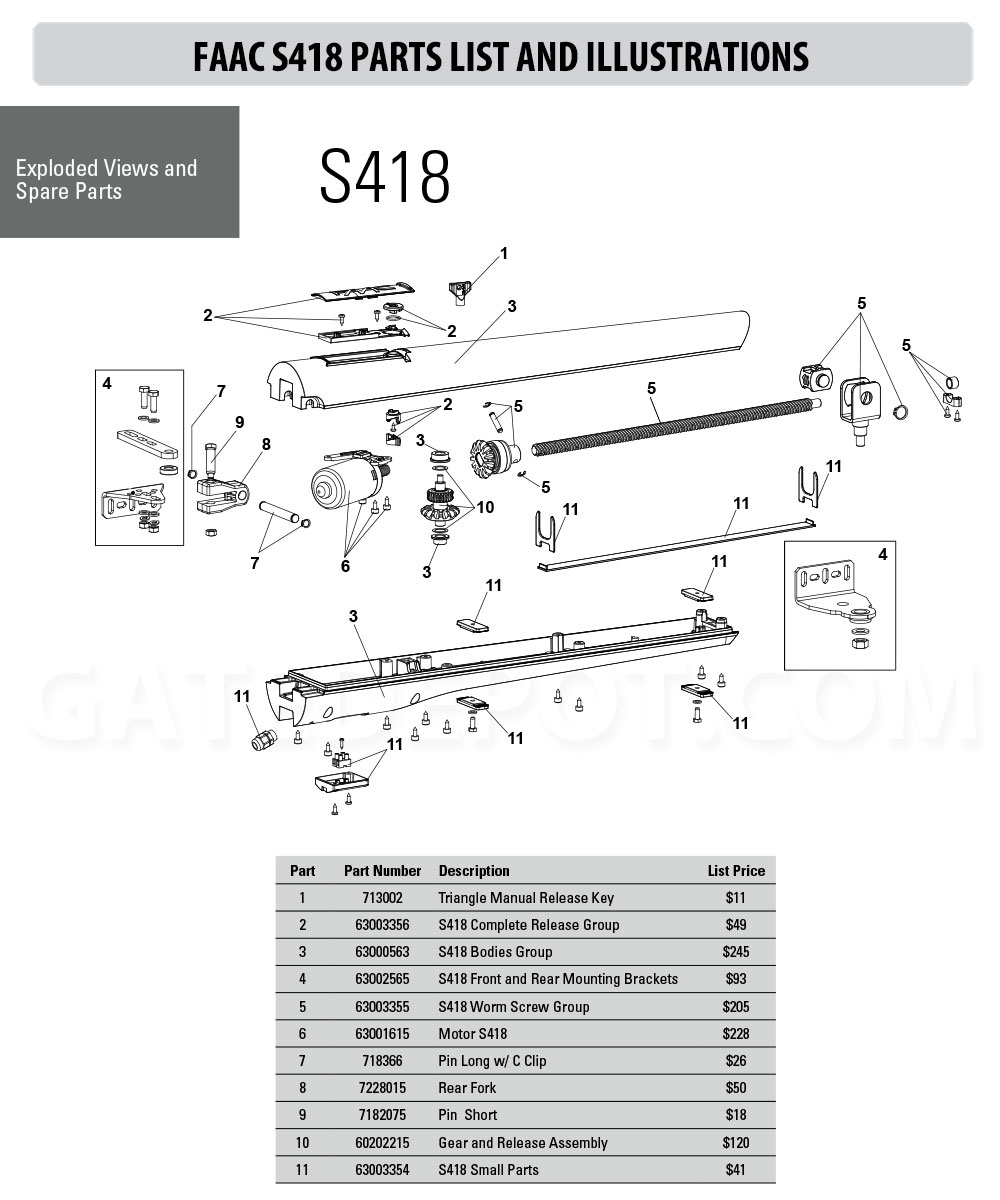

FAAC 63000563 Operator Body GroupFAC-63000563 63000563• Operator Body Group for S418See More Details
