Lockey M220 Surface Mount Deadbolt

Product Highlights:

Available in 7 Finishes
• Mechanical, keyless deadbolt lock
• Surface/Rim Mount
• One user code
• Thumbturn on interior and exterior
• Changeable handing
• Reversible long/short bar
• Ideal for narrow stile doors & cabinets
• Deadbolt throws 3/4"
• Works on most hinged doors
There is a 25% Restock Fee on all products
MPN: M220
SKU: LKY-m220

* Required Fields

Recommended Accessories



The M220 Surface Mount Deadbolt is ideal for narrow stile doors, thin cabinet doors and even glass cabinets. Perfect for a wide variety of applications including boats, RV's, gates, safes, drawers, liquor/medicine cabinets and lockers. The M220 lock is most commonly used on aluminum storefront doors and is recommended for stores with high employee turnover.

The Lockey M220 keyless lock is available in a Marine Grade Finish. The finish closely resembles the color of a Satin Chrome (26D) finish lock. We recommend the Marine Grade Finish for saltwater environments where the lock will sustain consistent exposure to the elements.

The Marine Grade finish has a much longer lifetime than a standard finish and provides added strength against the corrosive elements of coastal/saltwater environments.


​Ideal for:

  • Aluminum storefront doors
  • Cabinets
  • Gates
  • Lockers
  • Garage Doors
  • Boats & RV's


  • Reversible Long/Short Bar
  • Surface Mount Deadbolt
  • Ideal for Narrow Stiles
  • Easy to Change Code
  • Changeable Handing
  • Works on Most Hinged Doors

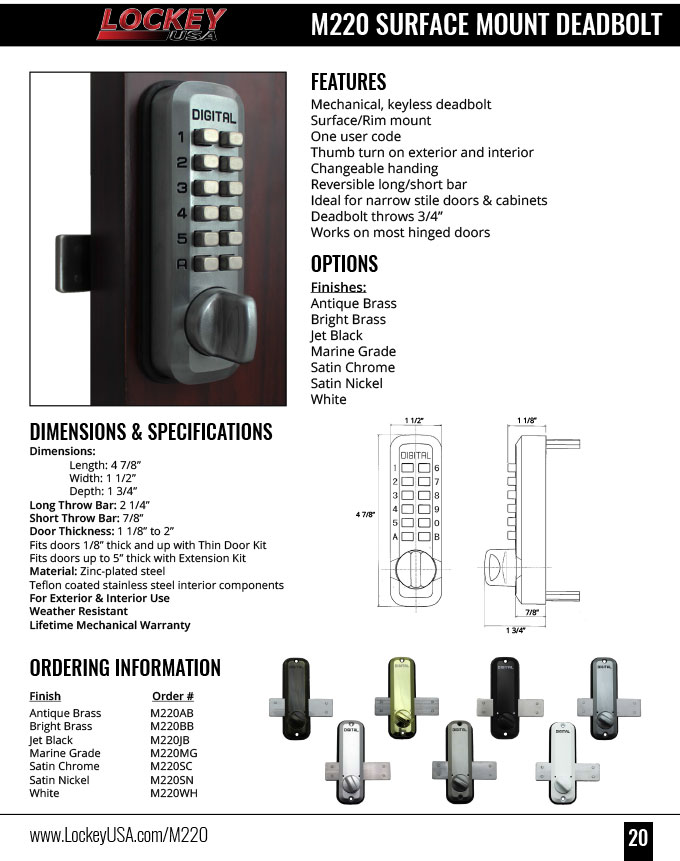

Dimensions & Specifications:

  • Door Thickness: 1 1/8” to 2”
  • Fits doors 1/8” thick and up with Thin Door Kit
  • Fits doors up to 5” thick with Extension Kit
  • Dimensions: 4 7/8" L x 1 7/16" W x 1 3/4" D
  • ​Material: Zinc-plated Steel with Teflon coated stainless steel interior components
  • For Exterior & Interior Use
  • Weather Resistant
  • Lifetime Mechanical Warranty

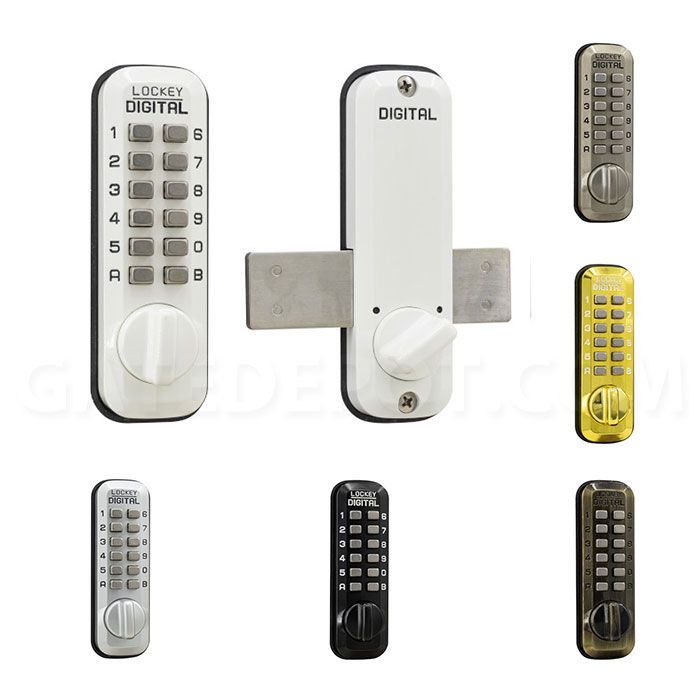

Finishes Available:

  • Antique Brass, Bright Brass, Satin Chrome, Satin Nickel, Jet Black, White, Marine Grade (Special Finish)
