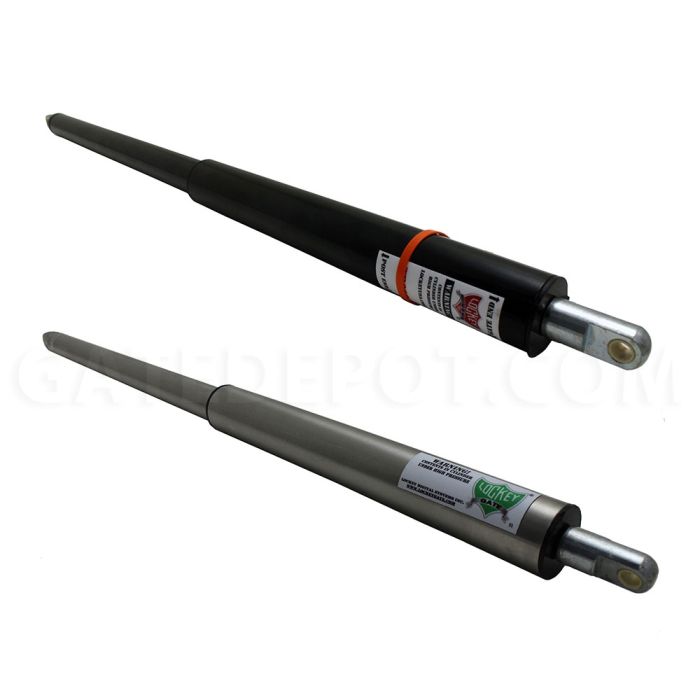

Lockey TB200-TB400-TB600 Hydraulic Pedestrian Gate Closer Series

Available in Steel or Stainless Steel Choose Light, Medium, or Heavy Duty • Closes small and large gates from 50-250 lbs. • Hydraulic/Nitrogen Gas controlled closing speed • Installs on top/middle/bottom • Works with left and right hand gates • Mounts on opening side of gate • Pushes the gate closed • Mounting brackets and fitting bar included • Not compatible with gates less than 30 inches wideThere is a 25% Restock Fee on all products

From $371.00

To $2,757.00

SKU
LKY-tbx00-bundle-obs

Product Details

There is a 25% Restock Fee on all products

Features:

  • Closes large and small gates from 50-250 lbs. easily and gently
  • Hydraulic/Nitrogen Gas controlled closing speed
  • Installs on side, top, middle or bottom of right or left hand gates
  • Mounts on opening side of gate, pushing the gate closed
  • Maximum opening angle of 100 degrees (LockeyUSA recommends use of a mechanical stop to restrict opening angle)
  • Mounting brackets and fitting bar included
  • Black powder coated steel or stainless steel finish
  • Not compatible with gates less than 30 inches wide

Technical Overview:

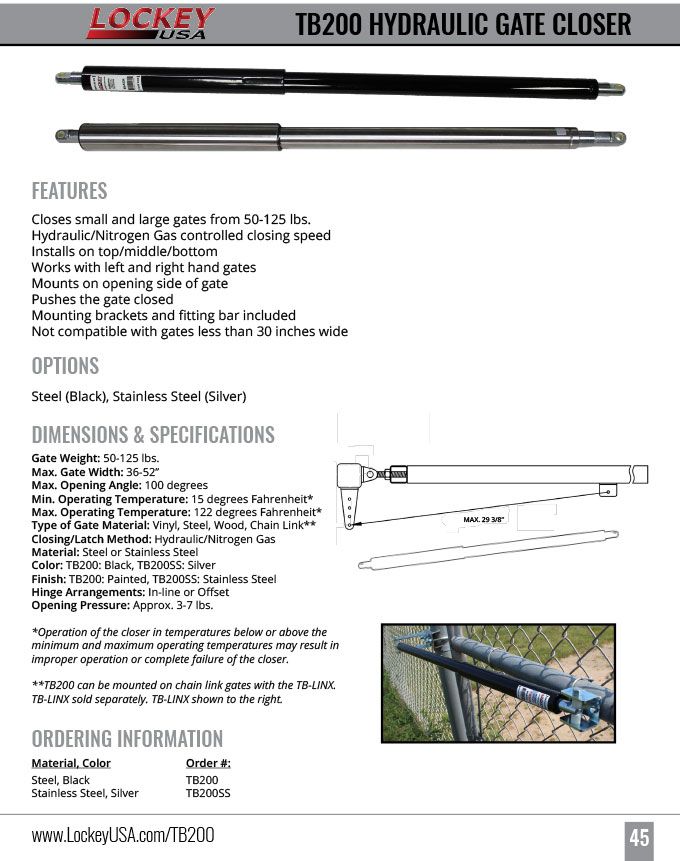

  • TB200: 50-125 lbs., 36-52"

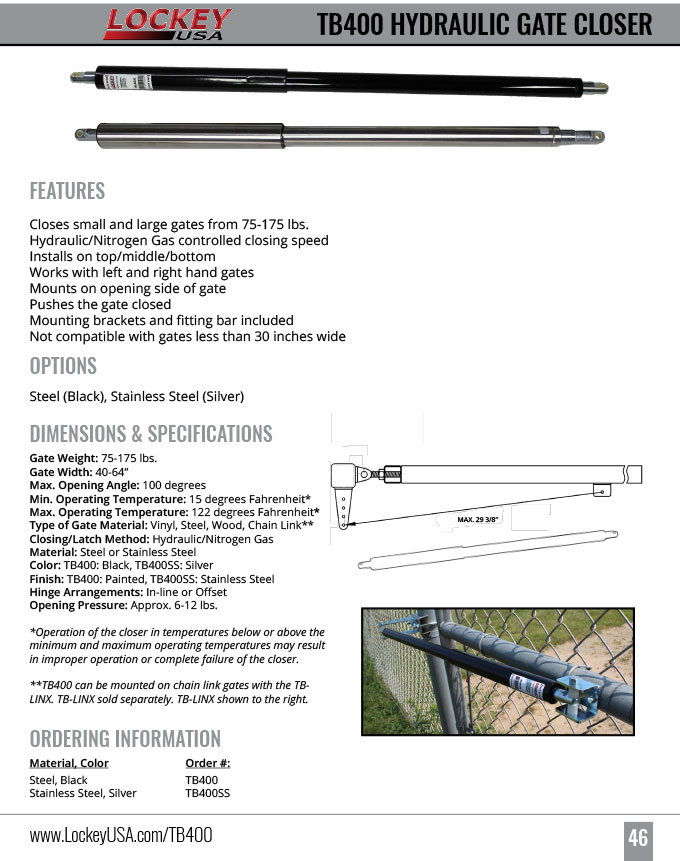

  • TB400: 75-175 lbs., 40-64"

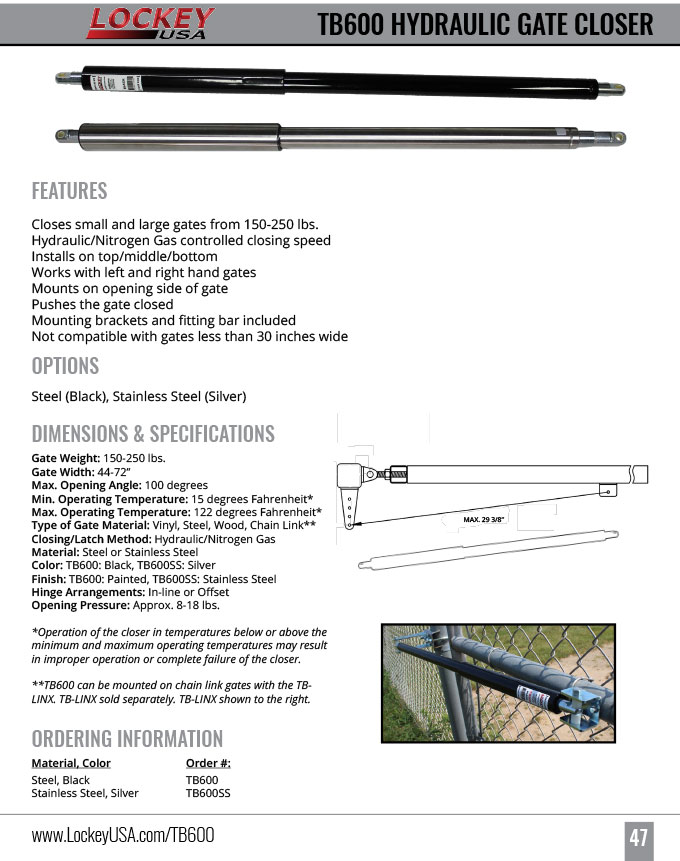

  • TB600: 150-250 lbs., 44-72"
  • Max. Opening Angle: 100 degrees
  • Min. Operating Temperature: 15 degrees Fahrenheit*
  • Max. Operating Temperature: 122 degrees Fahrenheit*
  • Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
  • Closing/Latch Method: Hydraulic/Nitrogen Gas
  • Material: Steel or Stainless Steel
  • Colors: Black Powder Coat or Stainless Steel
  • Hinge Arrangements: In-line or Offset
  • Opening Pressure: Approx. 6-12 lbs.

*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.

**Mounts on Chain Link with TB-LINX (sold separately)

Specifiction
Brand Lockey
