Platinum Access ACTP715 Linear Arm Operator

Rating:
90 % of 100
• 15' x 700 Lbs • 120/220VAC Power Source or 24VDC Solar Compatible • 24VDC Operational Voltage • Opens 90° ~ 21 - 25 Seconds / 120° Max • Continuous Duty, Instant Reversing 24VDC Motor • 24VDC Battery Backup System w/ (2) 7-Ah Batteries • Up To 100 Full Cycles on Battery Backup Operation • 3-1/2 Year Limited Manufacturer Warranty • Additional Entrapment Prevention Devices REQUIRED

From $969.00

To $4,679.00

SKU
PAS-actp715-bundle
Customize Platinum Access ACTP715 Linear Arm Operator
PAS-actp715-sk ACTP715-SK
PAS-actp715-msk ACTP715-MSK

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached
See Accessories for more Sensing Edge options

• 45 Ft. Range • 12-30V AC/DC • Weatherproof IP66 Housing • ETL UL325-2016 Compliant • 1-Year Manufacturer Warranty
SCL-e-936-s45rrgq E-936-S45RRGQ
• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty
LFM-850lm 850LM
• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch
LFM-811lm 811LM
• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys
LFM-kpw5 KPW5
• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys
LFM-kpw250 KPW250
EMX-2805-1 EMX-2805-1

• 24 Volt • Two 12V 33AH Gel Batteries • One 120W Solar Panel • Includes Solar Panel Mounting Bracket
PAS-sol-24v-33cs-120w SOL-24V-33CS-120W
• 24 Volt • Two 12V 20AH Gel Batteries • One 85W Solar Panel • Includes Solar Panel Mounting Bracket
PAS-sol-24v-20cs-85w SOL-24V-20CS-85W

* Required Fields

Your Customization

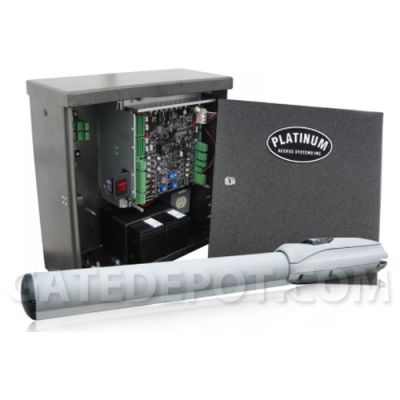

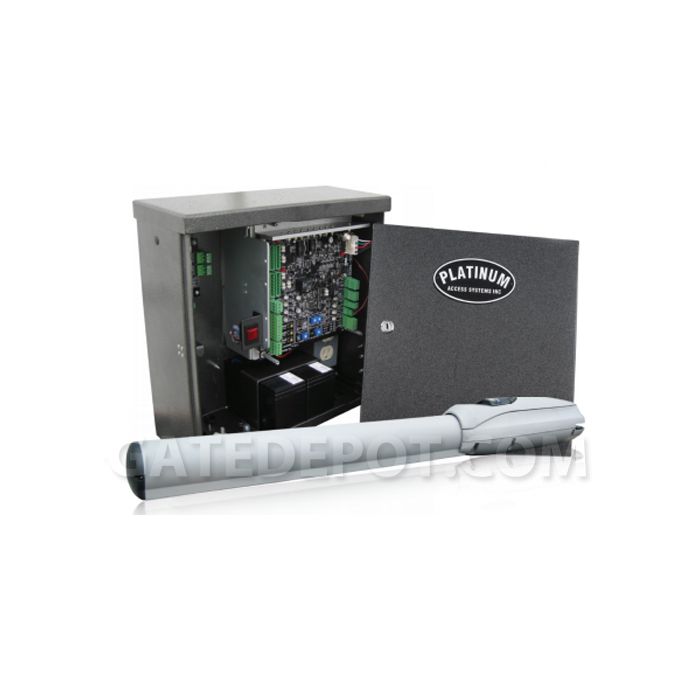

Platinum Access ACTP715 Linear Arm Swing Gate Operator
Platinum Access ACTP715 Linear Arm Operator

In stock

$969.00

Summary

    Product Details

    Platinum Access Systems gate operators are the first choice for Residential applications. The ACTP715 is built with one of the most reliable actuator arms in this industry. This particular actuator arm has been sold in this industry for 10 years, and it is still the best actuator arm available. Furthermore, it comes equipped with the most reliable (Platinum GOC-4000) main control boards, making the ACTP715 the best Actuator resident swing operator in this industry. The unique quality of this actuator arm is that it is built with a mechanical brake beside the electronic brake. The function for the mechanical break is to increase the security from intrusion and to keep the gate at fully close position in a winding date.

    All of our products are carefully inspected and mechanically tested to provide unsurpassed innovations, insuring that any Platinum Access Systems model will meet the needs of our customers.

    *Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

    • Continuous Duty
    • Capacity 700 Lbs. / 15 ft
    • GOC-4000 Control Board with Input/Output LED’s
    • Electronic Reversing Sensor Built Into Control Board
    • Super Quiet Operation
    • Soft Start and Soft Stop – Minimizes wear on the gate system that significantly helps the gate last longer
    • Precision Limit Switches
    • Adjustable Timer from 0-60 Seconds
    • Surge Protection
    • Self-Syncing
    • Alarm Reset Button
    • Manual Key Release with Optional Fail Safety
    • Charcoal Gray- Powder Coated Control Board Box
    • Dual Includes 40 Ft. Master/Slave Wire
    • 3.5-Year Limited Manufacturer Warranty

    Specifiction
    Brand Platinum Access Systems
