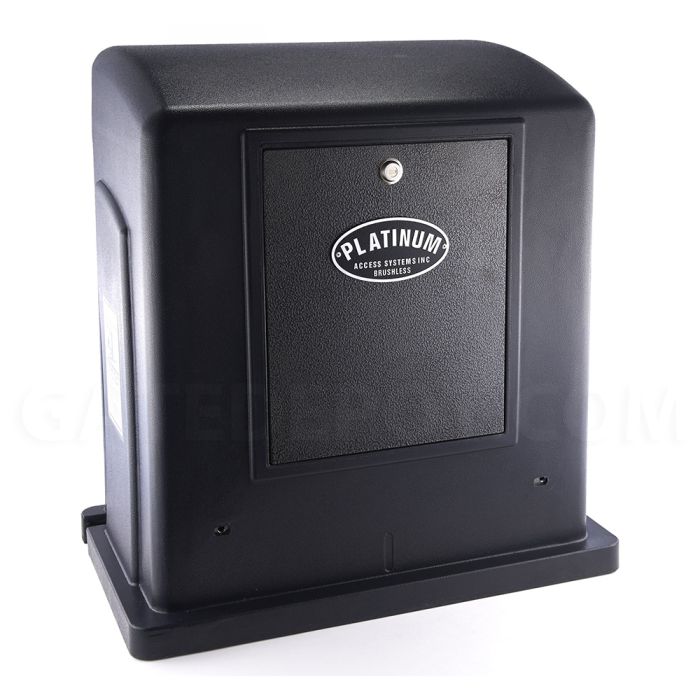

Platinum Access BLSL3060 Slide Gate Operator

Product Highlights:

• 60' x 3,000 Lbs
• 120/220VAC Power Source or 24VDC Solar Ready
• 24VDC Operational Voltage
• Opens ~ 12" per Second
• Continuous Duty, Brushless Motor
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 100 Cycles on Battery Backup Operation
• 10 / 8-Year Parts Limited Warranty
Additional Entrapment Prevention Devices REQUIRED
SKU: PAS-blsl3060-bundle

Availability: In stock

From: $2,464.00

To: $3,604.00

Price as configured: $0.00

  • GD# PAS-blsl3060 MFR# BLSL3060
    • Operator Only
    MSRP: $4,311.60
    PRICE: $2,464.00
    • Operator Only
  •

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached
See Accessories for more Sensing Edge options

  • GD# SCL-e-931-s50rrgq MFR# E-931-S50RRGQ
    • 50 Ft. Range • 12-30V AC/DC • Weatherproof IP55 Housing • ETL UL325-2016 Compliant • 1-Year Warranty
    PRICE: $106.00
    • 50 Ft. Range • 12-30V AC/DC • Weatherproof IP55 Housing • ETL UL325-2016 Compliant • 1-Year Warranty
  •
  • GD# MLE-me120-2e-03-t2 MFR# ME120-2E-03-T2
    • 3'
    PRICE: $155.00
    • 3'
  •
  • GD# MLE-rb-g-k10 MFR#
    • Includes Transmitter (RB-TX10) and Receiver (RB-G-RX10) • Wirelessly monitors 10k resistive edge • 2016 UL325 Compliant • 2 Channel receiver compatible with up to 6 transmitters/edges • AA lithium batteries used in transmitter unit • 2yr warranty
    MSRP: $365.33
    PRICE: $246.00
    • Includes Transmitter (RB-TX10) and Receiver (RB-G-RX10) • Wirelessly monitors 10k resistive edge • 2016 UL325 Compliant • 2 Channel receiver compatible with up to 6 transmitters/edges • AA lithium batteries used in transmitter unit • 2yr warranty
  •
Minimum Wattage for Solar Operation is 80W - If Purchasing SOL-50W Solar Panels, Two (2) are Required
  • GD# PAS-LS-1 MFR# LS-1
    • 9-24VDC / 24VAC • Single Output • Designed For Use With Platinum Access Operators
    MSRP: $101.25
    PRICE: $86.00
    • 9-24VDC / 24VAC • Single Output • Designed For Use With Platinum Access Operators
  •
  • GD# PAS-LS-2 MFR# LS-2
    • 9-24VDC / 24VAC • Dual Output • Designed For Use With Platinum Access Operators
    MSRP: $120.00
    PRICE: $96.00
    • 9-24VDC / 24VAC • Dual Output • Designed For Use With Platinum Access Operators
  •
  • GD# PAS-18G-500 MFR# 18G-500
    • 18AWG • 500 Ft. • Loop Wire
    MSRP: $220.00
    PRICE: $300.00
    • 18AWG • 500 Ft. • Loop Wire
  •
  • GD# PAS-Chain-PAK-5025 MFR# CHAIN-PAK-5025
    • #50 Chain Size • 25 Ft. • Includes 2 Master Links, Brackets & Bolts • Designed For Use With Platinum Access Slide Gate Operators
    MSRP: $225.00
    PRICE: $180.00
    • #50 Chain Size • 25 Ft. • Includes 2 Master Links, Brackets & Bolts • Designed For Use With Platinum Access Slide Gate Operators
  •
  • GD# PAS-5010 MFR# 5010
    • #50 Chain Size • 10 Ft. • Includes Master Link • Designed For Use With Platinum Access Slide Gate Operators
    MSRP: $52.50
    PRICE: $42.00
    • #50 Chain Size • 10 Ft. • Includes Master Link • Designed For Use With Platinum Access Slide Gate Operators
  •

Price as configured: $0.00

Recommended Accessories

titleOverview

Details

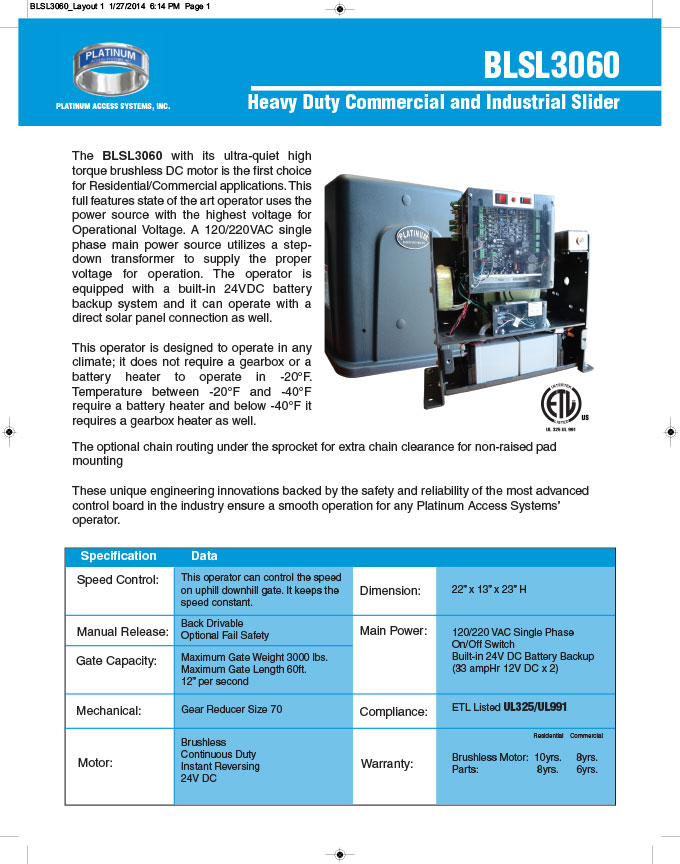

This heavy duty commercial slide gate operator is equipped with a powerful, quiet, brushless DC motor, which operates on 24 volt DC power. In addition, this gate operator is built with a long-lasting, 33Ah/24V DC battery backup system that keeps the gate operational when AC power is unavailable.

The BLSL3060 is the first choice for heavy duty commercial slide gate applications because of its many features. First, this full feature, state-of-the-art operator is built with a high-efficiency, switching power supply, along with a powerful ultra-quiet, high-torque, maintenance-free, brushless DC motor.

The brushless DC motor does not need brushes replaced like conventional DC operators, so it is practically trouble free! Due to these inherent characteristics, the brushless DC motor lasts up to 10 time longer than the conventional brushed DC motor. A brushless DC motor?s typical life expectancy is 10,000 to 20,000 working hours, compared to the conventional DC motor that has a life expectancy between 2,000 to 5,000 working hours.

The operator is also equipped with a built-in, powerful, 24VDC battery backup system that uses two a 12V,33Ah lead acid batteries. Normally this provides more than enough power to keep the gate working until the AC Power return.

This operator is designed to operate in any climate:

  • It does not require a gearbox or a battery heater to operate above –20°F.
  • Temperatures –20°F and –40°F require a battery heater
  • Temperatures below –40°F requires a gear box and battery heaters.

The optional chain routing under the sprocket is for extra chain clearance for non-raised pad mounting.

These unique engineering innovations are backed by the safety and reliability of the most advanced control board in the industry to ensure a smooth operation for any Platinum Access Systems operator.

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

Features

  • Continuous Duty
  • Capacity 3,000 Lbs. / 60 ft
  • Dynamic Speed Control – No speed variation when gate load changes and power switches between AC and battery. Slide gate works on slope without coasting
  • Automatic Learning With Self Sync – Automatically synchronizes gates with different travel times for primary/secondary gate installation
  • Solar Priority Power Supply – With a larger solar panel, the gate will run on the solar panel instead of the batteries when the sun light is sufficient, saving battery life
  • Soft Start and Soft Stop – Minimizes wear on the gate system that significantly helps the gate last longer
  • High Efficiency Brushless Motor – For smooth, high torque, and maintenance free operation
  • Solid State Motor Drivers – For quiet and long lasting operation
  • *High Capacity DC Backup – Over 100 Cycles on DC Backup Depending on Model & Gate Size - 2 33AmpHr 12VDC Batteries Included
  • Advanced Maglock Control
  • Dual Output Loop Detector Rack
  • Individual Alarm for Primary/Secondary Installation
  • Motor Brake & Maglock Release by FIRE/KEY Input
  • One Controlled Power Supply Output for Photo Beam Detector
  • Adjustable Leaf Delay
  • Stackable Limit Switches
  • Fail Safe / Secure Compatibility
  • Heavy Duty Chassis with Weatherproof Polyethylene Cover
  • Electronic Reversing Sensor Built Into Control Board
  • Adjustable Timer 0 – 60 Seconds
  • Surge Protection
  • Alarm Reset Button
  • Operating Temperature: -20°C (-4°F) to 70°C (158°F)
  • *10-Year Motor / 8-Year Parts Warranty – Residential : 8-Year Motor / 6-Year Parts Warranty – Commercial

titleSpecifications

Additional Info

Brand Platinum Access Systems
Manufacturer Part Number No
Former Part Number No
Specifications No
Main Power Source No
Operational Voltage No

titleACCESSORIES

Select Optional Accessories Below to Customize Your Equipment:

Showcased Accessories

  • All Products
  • Radio Remotes
  • Batteries
  • Safety Edges
  • Loop Detector & Loop Accessories

titleManuals & Resources

titleReplacement Parts

Platinum Access ID-WHL-LG

GD# PAS-id-whl-lg MFR# ID-WHL-LG
• Idle Pulley Wheel for BLSL840, BLSL3060
See More Details
$50.00

Platinum Access PS-600 Power Supply

GD# PAS-ps-600 MFR# PS-600
• Power Supply for BLSL3060
See More Details
$173.00

Platinum Access MOTOR-3060

GD# PAS-motor-3060 MFR# MOTOR-3060
• BLSL3060 Brushless DC Motor
See More Details
$464.00

Platinum Access LMSW

GD# PAS-lmsw MFR# LMSW
• Swing & Slide Limit Switch
See More Details
$10.00

Platinum Access BRBX-3060

GD# PAS-brbx-3060 MFR# BRBX-3060
• BLSL3060 Gearbox
• Size 70
See More Details
$300.00

Platinum Access BLGOC-2000 Main Board

GD# PAS-BLGOC-2000 MFR# BLGOC-2000
• Replacement Main Board
• For Models BLSL3060 & BLSW2212
See More Details
$300.00

Platinum Access SL120-GEARBOX-AND-MOTOR

GD# PAS-sl120-gearbox-and-motor MFR# SL120-GEARBOX-AND-MOTOR
• SL120 gearbox and Motor ASSY with Double sprocket
See More Details
$400.00

Platinum Access LMSW-BOX

GD# PAS-lmsw-box MFR# LMSW-BOX
• Slider Limit Switch Box Assembly
See More Details
$90.00
