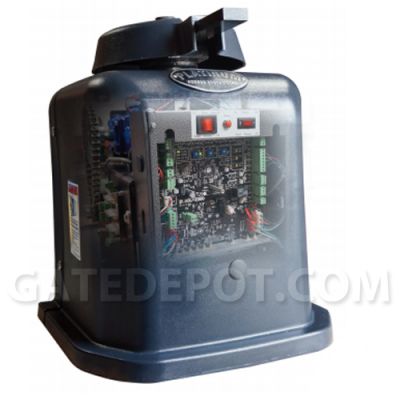

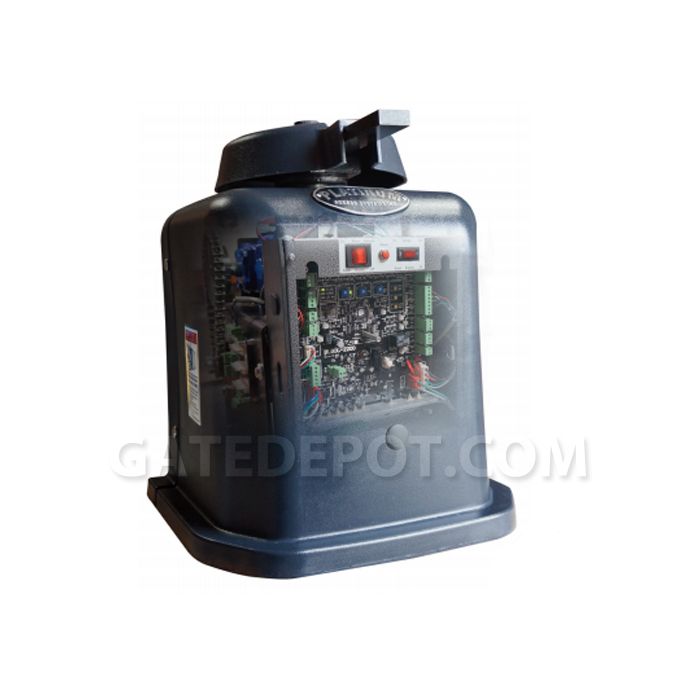

Platinum Access BLSW1016 Swing Gate Operator

• 16' x 1,000 Lbs / 12' x 1,400 Lbs • 120/220 VAC Power Source or 24VDC Solar Compatible • 24VDC Operational Voltage • Opens ~ 12" per Second / 120° Max • Continuous Duty, Brushless Motor • 24VDC Battery Backup System w/ (2) 7-Ah Batteries • Up To 100 Full Cycles on Battery Backup Operation • 8-Year Motor / 6-Year Parts Manufacturer Warranty — Excludes Batteries & Idler Wheels • Additional Entrapment Prevention Devices REQUIRED

From $1,442.00

To $3,584.00

SKU
PAS-blsw1016-bundle
Customize Platinum Access BLSW1016 Swing Gate Operator
PAS-blsw1016 BLSW1016

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached
See Accessories for more Sensing Edge options

• 45 Ft. Range • 12-30V AC/DC • Weatherproof IP66 Housing • ETL UL325-2016 Compliant • 1-Year Manufacturer Warranty
SCL-e-936-s45rrgq E-936-S45RRGQ
• Universal 3-Channel Receiver • 90 Transmitter Capacity • 310/315/390 MHz • Security+ 2.0 Compatible • 1-Year Limited Manufacturer Warranty
LFM-850lm 850LM
• 1-Button Visor Style • 310/315/390 MHz • Security+ 2.0 • 12 position DIP Switch
LFM-811lm 811LM
• Surface or Pedestal Mount • 5 Permanent / 10 Temporary PINs • Up to 500' Range • 310/315/390 MHz • Security+ 2.0 Compatible • Housing NEMA 3R / Electronics NEMA 4X • Backlit Keys
LFM-kpw5 KPW5
• Surface or Pedestal Mount • 250 Permanent / 10 Temporary PINs • Up to 500' Range • 300/310/315/390 MHz • MultiCode / Security+ 2.0 Compatible • Weatherproof • Backlit Keys
LFM-kpw250 KPW250

• 24 Volt • Two 12V 33AH Gel Batteries • One 120W Solar Panel • Includes Solar Panel Mounting Bracket
PAS-sol-24v-33cs-120w SOL-24V-33CS-120W
• 24 Volt • Two 12V 20AH Gel Batteries • One 85W Solar Panel • Includes Solar Panel Mounting Bracket
PAS-sol-24v-20cs-85w SOL-24V-20CS-85W
EMX-2805-1 EMX-2805-1

* Required Fields

Your Customization
Platinum Access BLSW1016 Swing Gate Operator
Platinum Access BLSW1016 Swing Gate Operator

In stock

$1,442.00

Summary

    Product Details

    This residential and heavy-duty commercial swing gate operator is equipped with a powerful, quiet, brushless DC motor and operates on 24 volt DC power. In addition, this gate operator is built with a long-lasting, 7Ah 24V DC battery backup system that keeps the gate operational when AC power is unavailable.

    The BLSW1016 is the first choice in heavy-duty commercial swing gate applications because of its many features. First, this full feature state-of-the-art operator uses a 120/220V AC single-phase main power source and a unique maintenance-free, brushless DC motor. The 120/220V AC power source is connected to a high-efficiency, switching power supply, which then provides the proper stable voltage to operate the gate operator.

    Since the DC motor is brushless, there is no need to replace any brushes; whereas the brushed DC motor will eventually require brush replacement. The brushless DC motor is quiet, powerful, and designed to last up to 10 times longer than the conventional brushless DC motor. Moreover, the brushless DC motor?s typical life expectancy is between 10,000 and 20,000 working hours, compared to the conventional brushed DC motor?s 2,000 to 5,000 working hours, which is significant in terms of life expectancy due to the quality and design of our product.

    Note, this BLSW1016 model can operate with a direct solar panel connection, as an optional addition.

    The operator is also equipped with a built-in, powerful 24V DC battery backup system that uses two 12V, 7Ah lead acid batteries. With this, there is more than enough power to keep the gate operational until AC power is available again

    This operator is designed to operate in any climate:

    • It does not require a gearbox or a battery heater to operate above –20°F.
    • Temperatures –20°F and –40°F require a battery heater
    • Temperatures below –40°F requires a gear box and battery heaters.

    The optional chain routing under the sprocket is for extra chain clearance for non-raised pad mounting.

    These unique engineering innovations are backed by the safety and reliability of the most advanced control board in the industry to ensure a smooth operation for any Platinum Access Systems operator.

    *Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

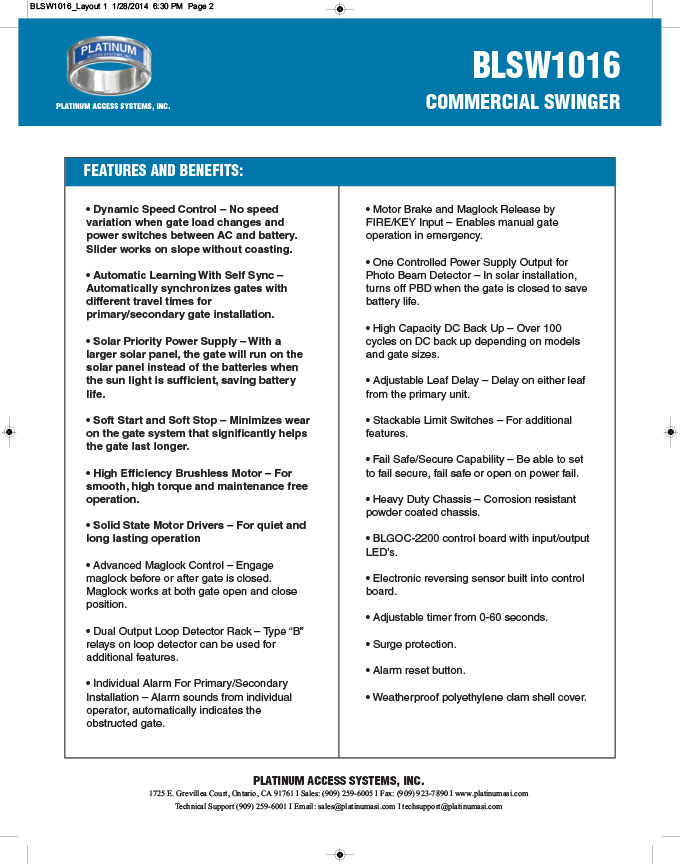

    • Continuous Duty
    • Capacity 1,000 Lbs. x 16 ft / 1,400 Lbs x 12 ft.
    • Dynamic Speed Control – No speed variation when gate load changes and power switches between AC and battery
    • Automatic Learning With Self Sync – Automatically synchronizes gates with different travel times for primary/secondary gate installation
    • Solar Priority Power Supply – With a larger solar panel, the gate will run on the solar panel instead of the batteries when the sun light is sufficient, saving battery life
    • Soft Start and Soft Stop – Minimizes wear on the gate system that significantly helps the gate last longer
    • High Efficiency Brushless Motor – For smooth, high torque, and maintenance free operation
    • Solid State Motor Drivers – For quiet and long lasting operation
    • *High Capacity DC Backup – Over 100 Cycles on DC Backup Depending on Model & Gate Size - 2 7AmpHr 12VDC Batteries Included
    • Advanced Maglock Control
    • Dual Output Loop Detector Rack
    • Individual Alarm for Primary/Secondary Installation
    • Motor Brake & Maglock Release by FIRE/KEY Input
    • One Controlled Power Supply Output for Photo Beam Detector
    • Adjustable Leaf Delay
    • Stackable Limit Switches
    • Fail Safe / Secure Compatibility
    • Heavy Duty Chassis with Weatherproof Polyethylene Cover
    • Electronic Reversing Sensor Built Into Control Board
    • Adjustable Timer 0 – 60 Seconds
    • Surge Protection
    • Alarm Reset Button
    • Operating Temperature: -20°C (-4°F) to 70°C (158°F)
    • *8-Year Motor / 8-Year Parts Manufacturer Warranty – Residential : 8-Year Motor / 6-Year Parts Manufacturer Warranty – Commercial
    Specifiction
    Brand Platinum Access Systems
