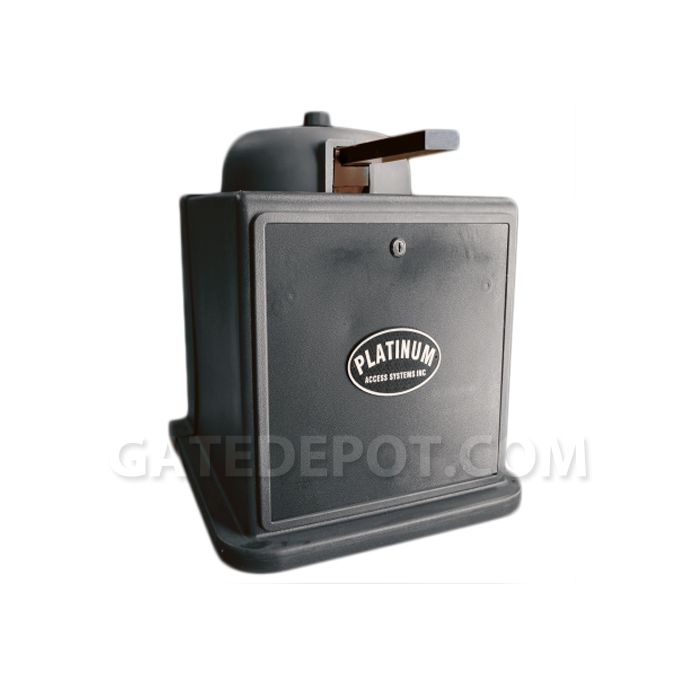

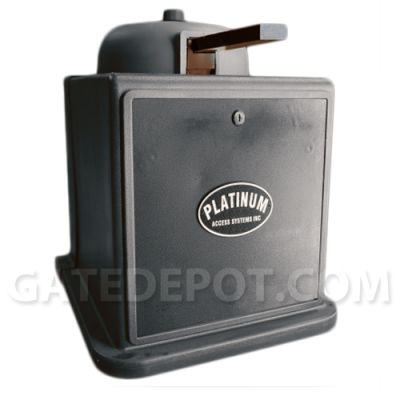

Platinum Access BLSW814 Swing Gate Operator

Product Highlights:

• 14' x 800 Lbs
• 120/220 VAC Power Source or 24VDC Solar Ready
• 24VDC Operational Voltage
• Opens ~ 12" per Second / 120° Max
• Continuous Duty, Brushless Motor
• 24VDC Battery Backup System w/ (2) 7-Ah Batteries
• Up To 100 Full Cycles on Battery Backup Operation
• 10 / 8-Year Limited Warranty
SKU: PAS-blsw814-bundle

Availability: In stock

From: $1,125.00

To: $2,229.00

Price as configured: $0.00

  • GD# PAS-blsw814 MFR# BLSW814
    • Operator Only
    MSRP: $2,008.75
    PRICE: $1,125.00
    • Operator Only
  •

Operator will NOT run w/o a Photo Eye (Type B1) or Sensing Edge (Type B2) attached
See Accessories for more Sensing Edge options

  • GD# SCL-e-931-s50rrgq MFR# E-931-S50RRGQ
    • 50 Ft. Range • 12-30V AC/DC • Weatherproof IP55 Housing • ETL UL325-2016 Compliant • 1-Year Warranty
    PRICE: $106.00
    • 50 Ft. Range • 12-30V AC/DC • Weatherproof IP55 Housing • ETL UL325-2016 Compliant • 1-Year Warranty
  •
  • GD# MLE-rb-g-k10 MFR#
    • Includes Transmitter (RB-TX10) and Receiver (RB-G-RX10) • Wirelessly monitors 10k resistive edge • 2016 UL325 Compliant • 2 Channel receiver compatible with up to 6 transmitters/edges • AA lithium batteries used in transmitter unit • 2yr warranty
    MSRP: $365.33
    PRICE: $246.00
    • Includes Transmitter (RB-TX10) and Receiver (RB-G-RX10) • Wirelessly monitors 10k resistive edge • 2016 UL325 Compliant • 2 Channel receiver compatible with up to 6 transmitters/edges • AA lithium batteries used in transmitter unit • 2yr warranty
  •
  • GD# MLE-me120-2e-03-t2 MFR# ME120-2E-03-T2
    • 3'
    PRICE: $155.00
    • 3'
  •
Minimum Wattage for Solar Operation is 80W - If Purchasing SOL-SPM045P 45W Solar Panels, Two (2) are Required
Two (2) 7AH Batteries are Required & Included with Purchase of Operator. If Upgrading or Purchasing Spares, Order Two (2) Batteries.
For Solar Operation, Two (2) 33AH Batteries are Required.
  • GD# PAS-LS-1 MFR# LS-1
    • 9-24VDC / 24VAC • Single Output • Designed For Use With Platinum Access Operators
    MSRP: $101.25
    PRICE: $86.00
    • 9-24VDC / 24VAC • Single Output • Designed For Use With Platinum Access Operators
  •
  • GD# PAS-LS-2 MFR# LS-2
    • 9-24VDC / 24VAC • Dual Output • Designed For Use With Platinum Access Operators
    MSRP: $120.00
    PRICE: $96.00
    • 9-24VDC / 24VAC • Dual Output • Designed For Use With Platinum Access Operators
  •
  • GD# PAS-18G-500 MFR# 18G-500
    • 18AWG • 500 Ft. • Loop Wire
    MSRP: $220.00
    PRICE: $300.00
    • 18AWG • 500 Ft. • Loop Wire
  •

Price as configured: $0.00

Recommended Accessories

titleOverview

Details

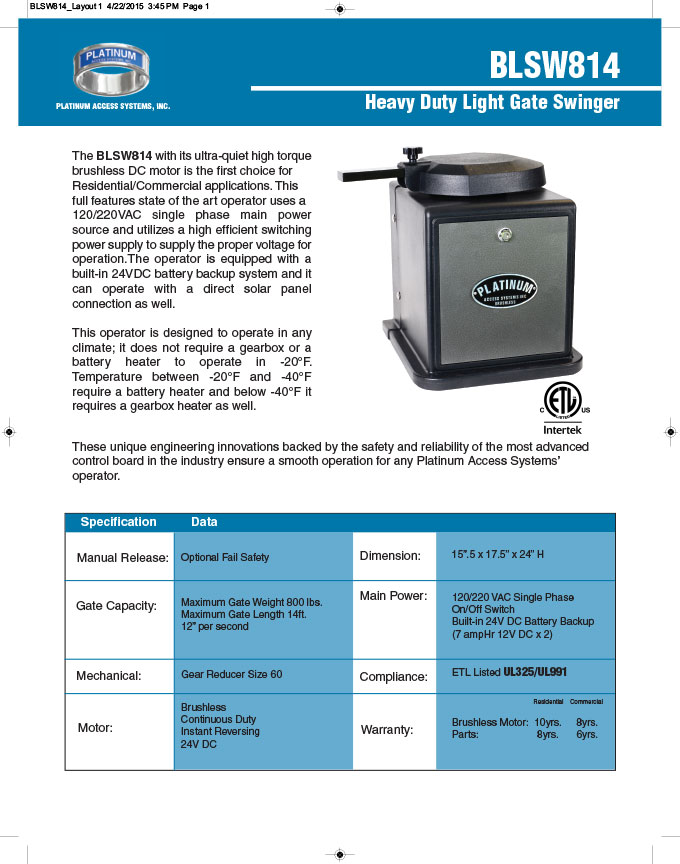

This residential / commercial swing gate operator is equipped with a powerful, quiet, brushless DC motor, which operates on 24volt DC power. In addition, this gate operator is built with a long-lasting 7Ah/24V DC battery backup system that keeps the gate operational when AC power is unavailable.

The BLSW814 is the first choice for residential and commercial swing gate applications because of its many features. First, this full feature, state-of-the-art operator is built with a high-efficiency, switching power supply, along with a powerful, ultra-quiet, high-torque, maintenance-free, brushless DC motor. The 120/220V AC power source is connected to a switching power supply, which can output a proper, stable voltage to the gate operator even when the input voltage is fluctuating.

The brushless DC motor does not need brushes replaced like conventional DC operators, so it is practically trouble free! Due to these inherent characteristics, the brushless DC motor lasts up to 10 time longer than the conventional brushed DC motor. A brushless DC motor’s typical life expectancy is 10,000 to 20,000 working hours, compared to the conventional brushed DC motor that has a life expectancy between 2,000 to 5,000 working hours.

Note. This BLSW814 model can operate with a direct solar panel connection as an optional addition. We recommend using a bigger capacity battery like a 12V, 12Ah battery, if the operator is used in this fashion.

The operator is also equipped with a built-in 24VDC battery backup system that uses two 12V, 7Ah lead acid batteries. Normally this can supply more than enough power to keep the gate working until the AC Power return.

This operator is designed to operate in any climate:

  • It does not require a gearbox or a battery heater to operate above –20°F.
  • Temperatures –20°F and –40°F require a battery heater, and below –40°F requires a gear box and battery heaters.

These unique engineering innovations are backed by the safety and reliability of the most advanced control board in the industry to ensure a smooth operation for any Platinum Access Systems operator.

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

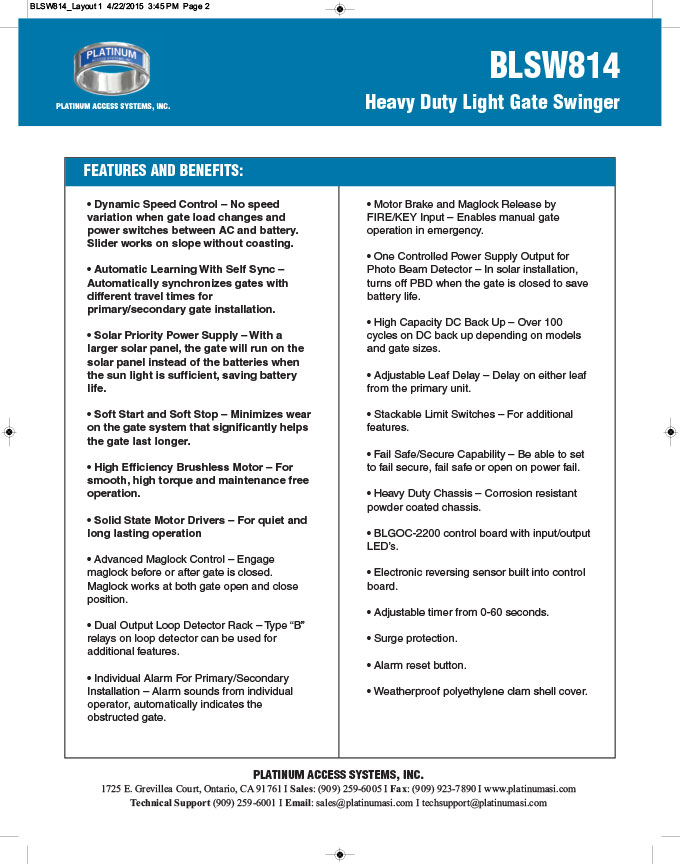

Features

  • Continuous Duty
  • Capacity 800 Lbs. / 14 ft
  • Dynamic Speed Control – No speed variation when gate load changes and power switches between AC and battery
  • Automatic Learning With Self Sync – Automatically synchronizes gates with different travel times for primary/secondary gate installation
  • Solar Priority Power Supply – With a larger solar panel, the gate will run on the solar panel instead of the batteries when the sun light is sufficient, saving battery life
  • Soft Start and Soft Stop – Minimizes wear on the gate system that significantly helps the gate last longer
  • High Efficiency Brushless Motor – For smooth, high torque, and maintenance free operation
  • Solid State Motor Drivers – For quiet and long lasting operation
  • *High Capacity DC Backup – Over 100 Cycles on DC Backup Depending on Model & Gate Size - 2 7AmpHr 12VDC Batteries Included
  • Advanced Maglock Control
  • Dual Output Loop Detector Rack
  • Individual Alarm for Primary/Secondary Installation
  • Motor Brake & Maglock Release by FIRE/KEY Input
  • One Controlled Power Supply Output for Photo Beam Detector
  • Adjustable Leaf Delay
  • Stackable Limit Switches
  • Fail Safe / Secure Compatibility
  • Heavy Duty Chassis with Weatherproof Polyethylene Cover
  • Electronic Reversing Sensor Built Into Control Board
  • Adjustable Timer 0 – 60 Seconds
  • Surge Protection
  • Alarm Reset Button
  • Operating Temperature: -20°C (-4°F) to 70°C (158°F)
  • *10-Year Motor / 8-Year Parts Warranty – Residential : 8-Year Motor / 6-Year Parts Warranty – Commercial

titleSpecifications

Additional Info

Brand Platinum Access Systems
Manufacturer Part Number No
Former Part Number No
Specifications No
Main Power Source No
Operational Voltage No
Maximum Gate Width Capacity No

titleACCESSORIES

Select Optional Accessories Below to Customize Your Equipment:

Showcased Accessories

  • All Products
  • Magnetic Locks
  • Gate Operator Accessories
  • Wire & Cable
  • Safety Edges
  • Loop Detector & Loop Accessories

titleManuals & Resources

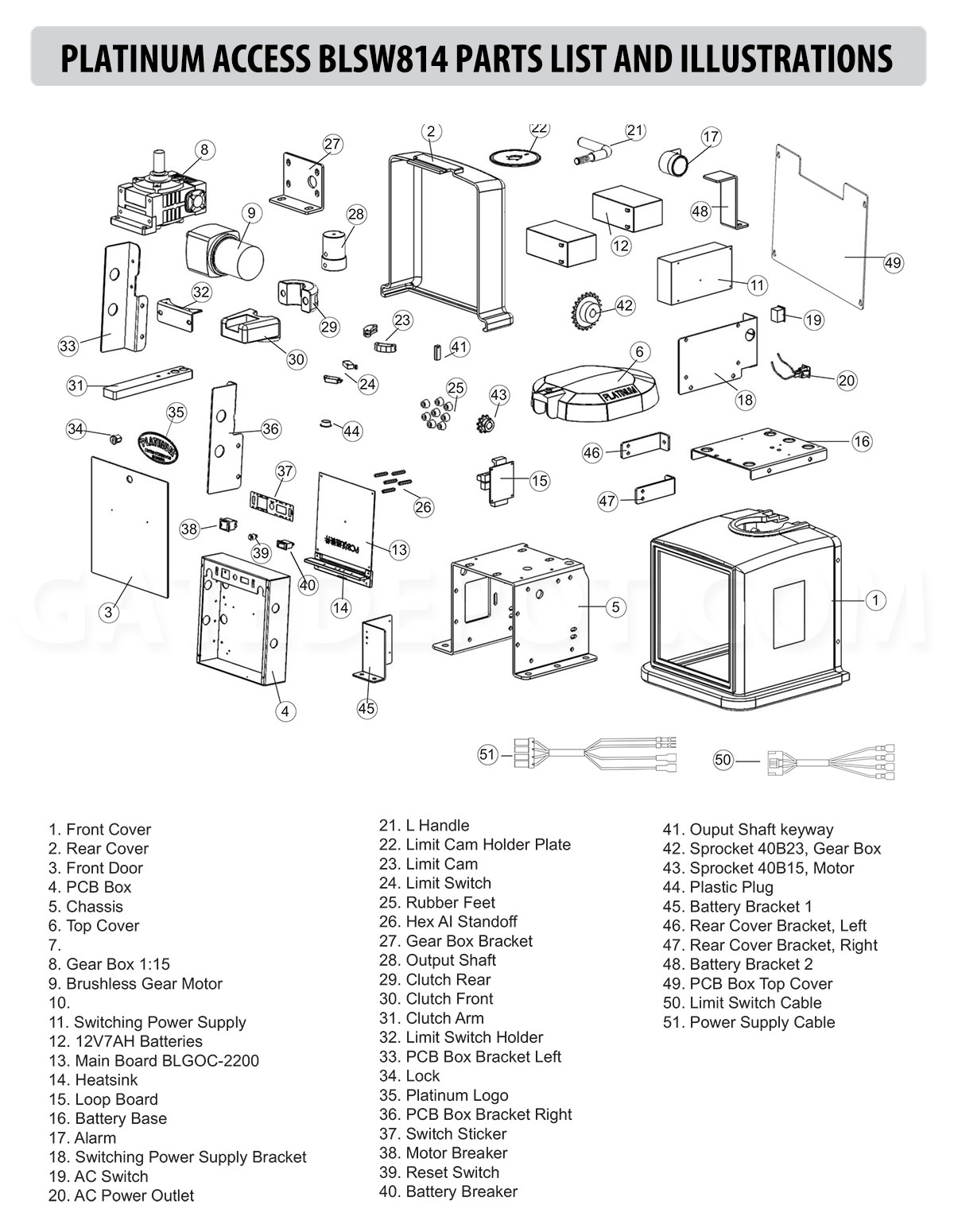

titleReplacement Parts

Platinum Access SW-CLT-STD

GD# PAS-sw-clt-std MFR# SW-CLT-STD
• Swinger Clutch Assembly for BLSW814 & BLSW1016
See More Details
$140.00

Platinum Access Up/Down Hill Arm

GD# PAS-swarmud MFR# SWARMUD
• Use When Gate Opens On A Slope
• Designed For Use With Platinum Access Swing Gate Operators
See More Details
$147.00

Platinum Access SW120-GEARBOX-ASSY

GD# PAS-sw120-gearbox-assy MFR# SW120-GEARBOX-ASSY
• SW120 Gearbox Assembly
See More Details
$375.00

Platinum Access LMSW

GD# PAS-lmsw MFR# LMSW
• Swing & Slide Limit Switch
See More Details
$10.00

Platinum Access PS-240 Power Supply

GD# PAS-ps-240 MFR# PS-240
• Power Supply for BLSL840, BLSW814, ECU4000, BP19
See More Details
$170.00

Platinum Access Replacement Swing Arm

GD# PAS-swarm MFR# SWARM
• Designed For Use With Platinum Access Swing Arm Operators
See More Details
$80.00

Platinum Access SW-CLT-2212

GD# PAS-sw-clt-2212 MFR# SW-CLT-2212
• Swinger Clutch Assembly for BLSW814 & BLSW2212
See More Details
$170.00

Platinum Access MOTOR-814

GD# PAS-motor-814 MFR# MOTOR-814
• BLSW814 Brushless DC Gearmotor
See More Details
$464.00

Platinum Access GRBX-ASY-814

GD# PAS-grbx-asy-814 MFR# GRBX-ASY-814
• BLSW814 Gearbox Assembly
See More Details
$375.00

Platinum Access BLGOC-2200 Main Board

GD# PAS-BLGOC-2200 MFR# BLGOC-2200
• Replacement Main Board
• For Models BLSL840, BLSL2250, BLSW814 & BLSW1016
See More Details
$300.00
