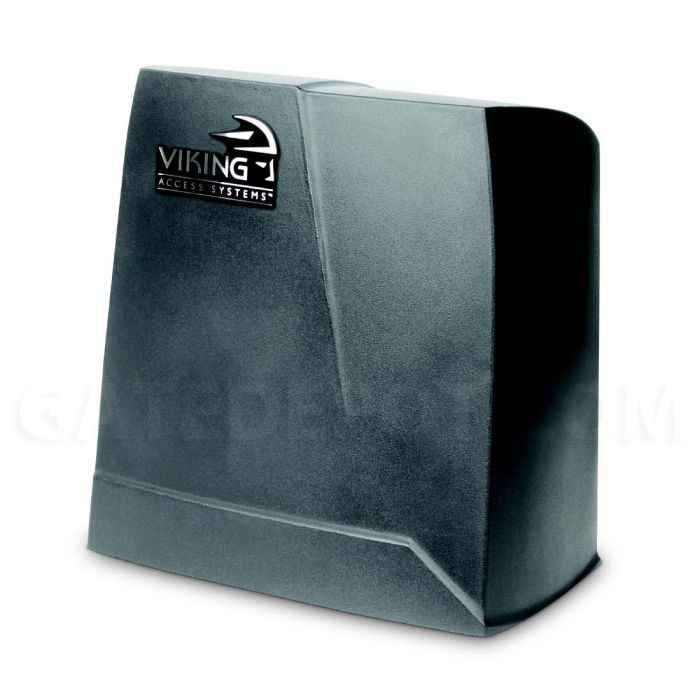

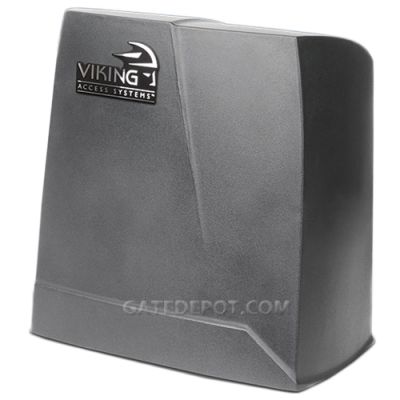

Viking Access K2SPS Slide Gate Operator

The K2 Residential Slide Gate Operator features the V-Flex control board with on-board diagnostics, LCD display and simple push-button digital limit setup. The K2 also has our new Smart Positioning System, which detects the absolute position of the gate at any instant during its operation regardless of electrical power and without requiring a re-learn cycle. Featuring a built in heater, increased gate capacity of up to 700 lbs. and Viking's true battery backup system. The power supply features convenient fuse access and LED status indicators for incoming high voltage. Solar efficiency, direct drive motor and safety compliance, make the K2 the operator of choice for your residential slide gate application.

Features

• 24 VDC
• 120/240 VAC Single Phase
• Two 12 VDC Batteries
• 100 Full Contin. Cycles (700 lbs) on Battery Backup
• 12" Per Second Operating Speed
• -20°F up to +160°F Operating Temperature
• 700 Lbs/ 30' Max Gate Capacity
• 100% Continuous Duty Cycle
• Plug & Play connection for the Viking wireless accesssory products
• Viking Konnect - Wireless Kit provides secure and reliable wireless dual gate communication when the application requires two gate operators working in tandem
• Viking Monitor - Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
• Standard Battery Backup provides 100 continuous cycles at 100% duty cycle
• With Viking's "True" Battery Backup System, batteries are not used during normal operations, maximizing battery life
• Advanced lightning strike protection up to 20,000 volts / 10,000 amps
• On-board surge protection monitoring
• Adaptive digital limits ensure consistency at the end of travel of the gate
• Gate position detection, regardless of power status
• Limits are retained even after manual operation during complete power failure
• Multi-Layer Corrosion Protection
• G90 Galvanized
• Clear Zinc Plating
• UV Rated Powder Coating
• 1/4" Steel Chassis
• Built-in heater for operating temperatures down to -20° F
• This will allow you run your operator in the coldest conditions
• On-board LCD screen displays voltages, amps, gate status and diagnostics
• Conforms to ANSI/CAN/UL325

IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED

REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least TWO monitored "10K Resistor Based" sensors MUST be connected or OPERATOR WILL NOT RUN.

The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:

• Photoelectric Beam (non-contact sensor) - 10K Resistor based
• Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
