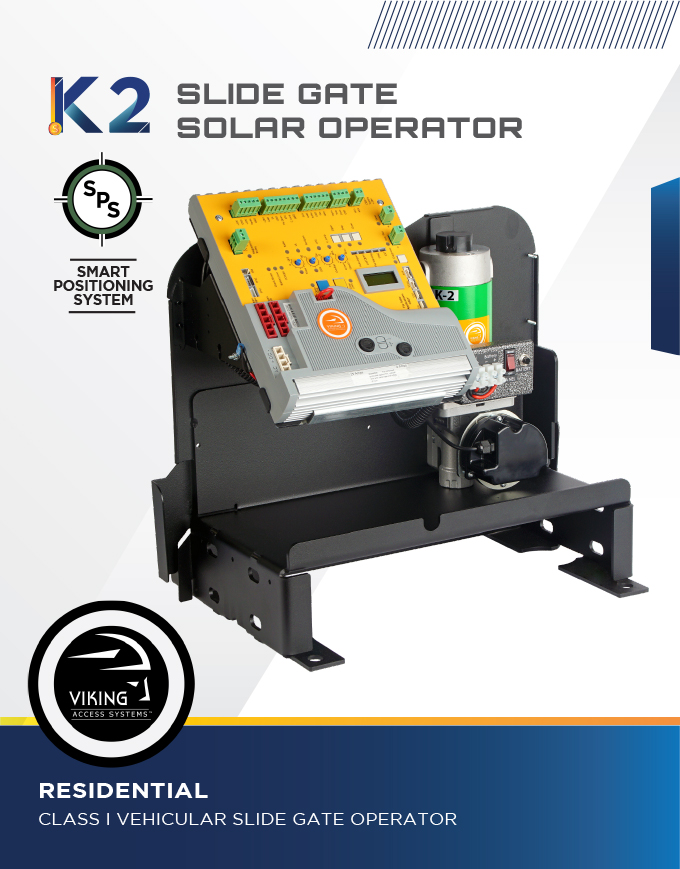

Viking Access K2SPSSLR Solar Slide Gate Operator

The K2 Solar Slide Gate Operator can be used for gates up to 700 lbs. and 30 ft. long. The controller has its very own power management system to use its solar regulator to its fullest potential. The V-Flex Solar will allow for soft stop and soft start for smooth and accurate operation. The K2 Solar Slide Gate Operator also has our new Smart Positioning System, which detects the absolute position of the gate at any instant during its operation regardless of electrical power and without requiring a re-learn cycle. Homeowners and installers alike have found great success with Viking's solar K2 model.

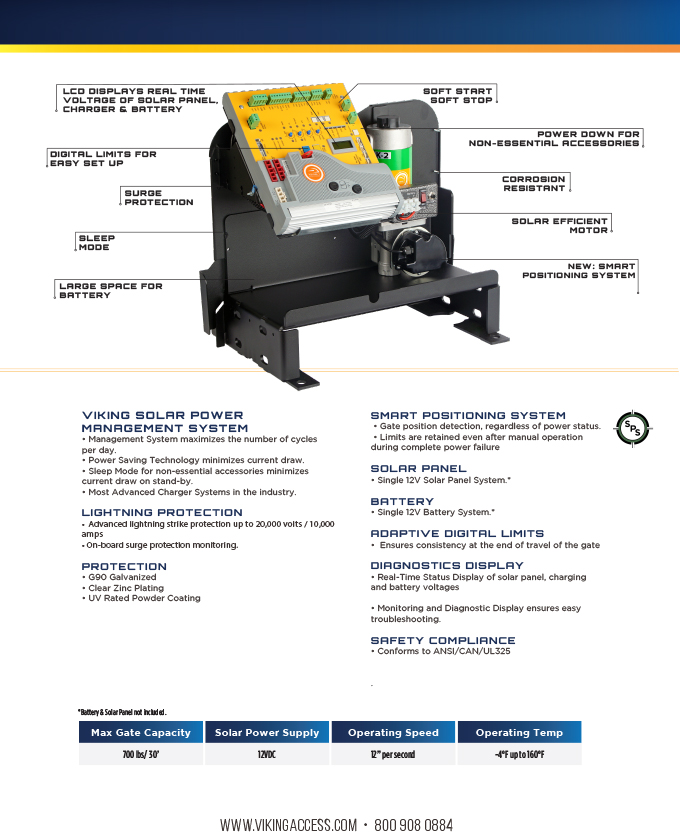

Features

• 12 VDC
• 12" Per Second Operating Speed
• -4°F up to +160°F Operating Temperature
• 700 Lbs/ 30' Max Gate Capacity
• 100% Continuous Duty Cycle
• Management System maximizes the number of cycles per day
• Power Saving Technology minimizes current draw
• Sleep Mode for non-essential accessories minimizes current draw on stand-by
• Most Advanced Charger Systems in the industry
• Advanced lightning strike protection up to 20,000 volts / 10,000 amps
• On-board surge protection monitoring
• Gate position detection, regardless of power status
• Limits are retained even after manual operation during complete power failure
• G90 Galvanized
• Clear Zinc Plating
• UV Rated Powder Coating
• Single 12V Battery System - Battery & Solar Panel Purchased Separately
• Adaptive digital limits ensure consistency at the end of travel of the gate
• Real-Time Status Display of solar panel, charging and battery voltages
• Monitoring and Diagnostic Display ensures easy troubleshooting.
• Conforms to ANSI/CAN/UL325

IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED

REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least TWO monitored "10K Resistor Based" sensors MUST be connected or OPERATOR WILL NOT RUN.

The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:

• Photoelectric Beam (non-contact sensor) - 10K Resistor based
• Edge Sensor (contact sensor) - MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2
